8061Si07.05A580

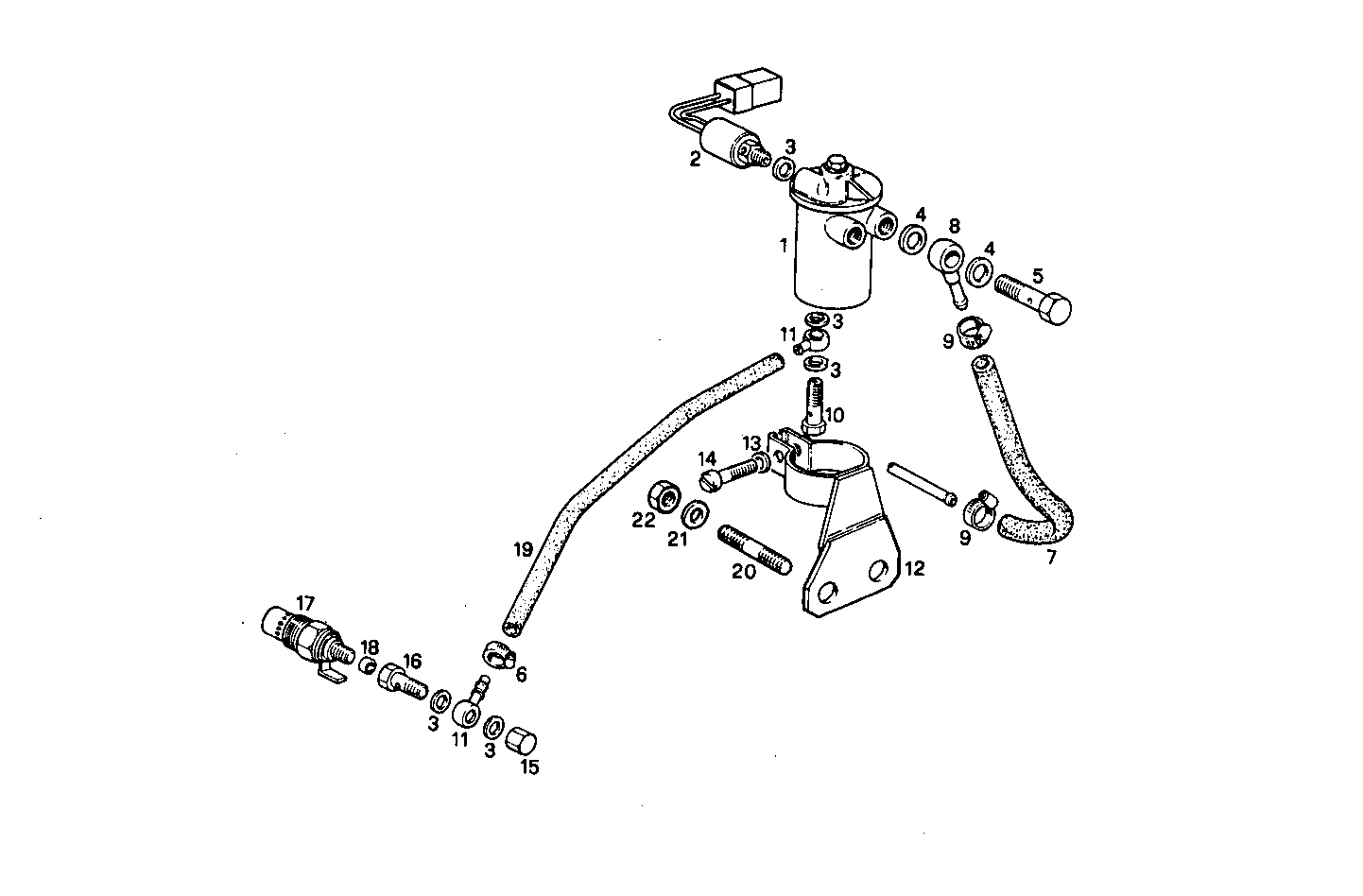

A20010016 THERMOSTARTER - 24V

Iveco/FPT THERMOSTARTER

Item Part number Description
1 4815431 TANK FOR PREHEATER
2 98414208 ELECT.V.VE.PREHEAT
3 98474303 WASHER Ø8X14 MM SP=2,3 MM
4 98474306 WASHER Ø12X20 MM SP=1,9 MM
5 4864082 BANJO BOLT M12X1,5X25 MM
6 18087692 CLIP Ø8/12 MM
7 19056687 RUBBER HOSE Ø7,5 MM
8 98405514 PIPE SOCKET
9 18087991 CLIP Ø8/16 MM
10 4864078 BANJO BOLT M8X1,25
11 4551099 SWIVEL COUPLING
12 8103713 SUPPORT
13 17494634 SPRING WASHER Ø5,1X9,2 MM
14 17132214 SCREW
15 11902017 LOCK PLUG M8
16 4551101 SCREW CONNECTOR
17 4724604 THERMO-STARTER
18 4557649 WASHER
19 17724387 HOSE
20 13546121 STUD M10X1,25X20 MM
21 17090271 WASHER Ø10X20X2,6 MM
22 17038221 HEXAGON NUT M10
