8061Si11.05

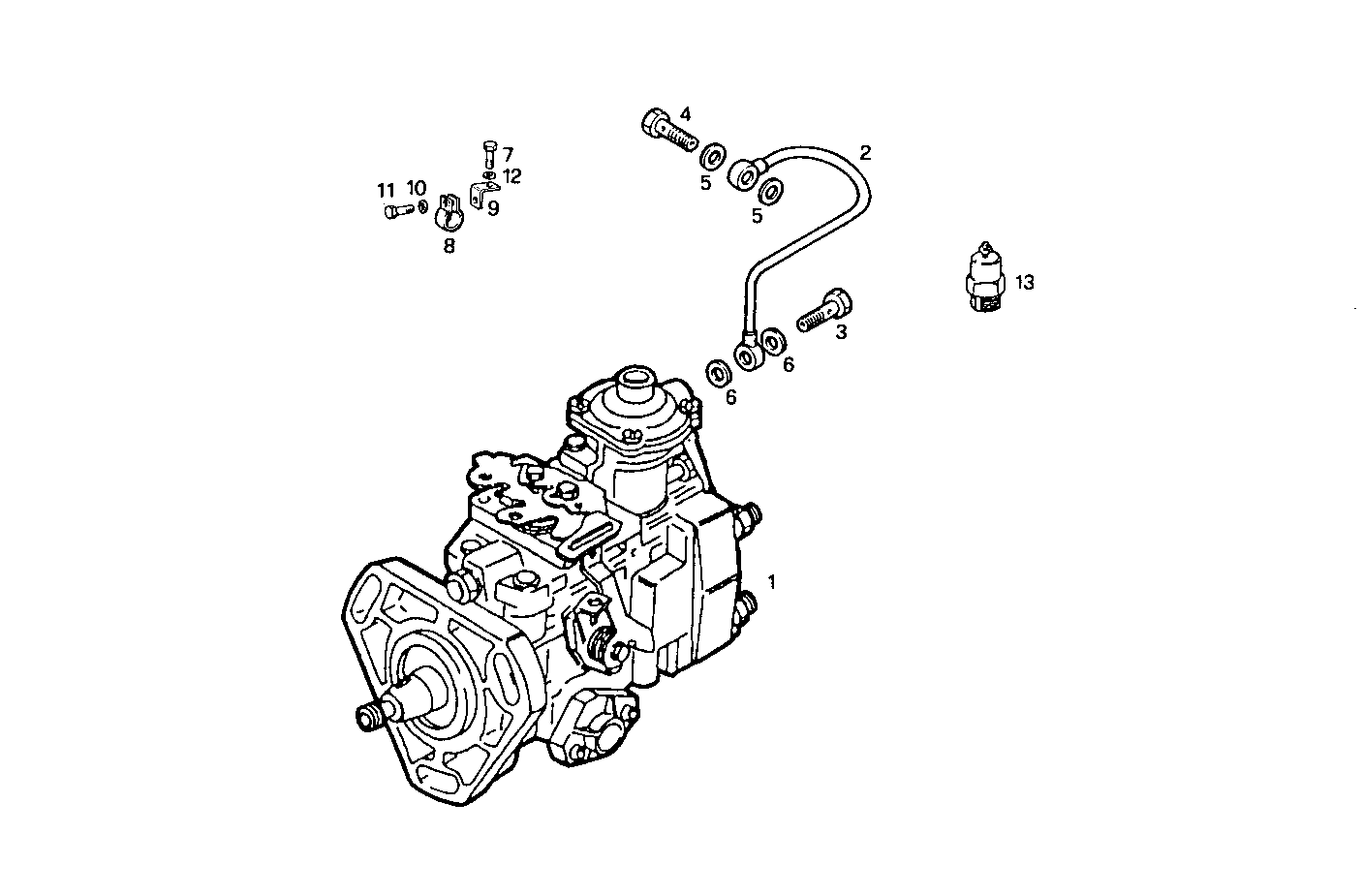

1400.128 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 98441326 | DISTRIB.INJ.PUMP ASSY |
2 | 8018093 | INJECTION LINE |
3 | 4864077 | SCREW CONNECTOR |
4 | 4864080 | SCREW CONNECTOR M10X1,25 |
5 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
6 | 4858605 | WASHER Ø8X12 MM |
7 | 15970521 | HEXAGON BOLT M10X20 MM |
8 | 4656139 | FASTENING BRACKET |
9 | 8005101 | RETAINER |
10 | 17090174 | SPRING WASHER Ø10X20 MM |
11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 | 8100253 | ELECTROVALVE 12V |
