8061Si11.06

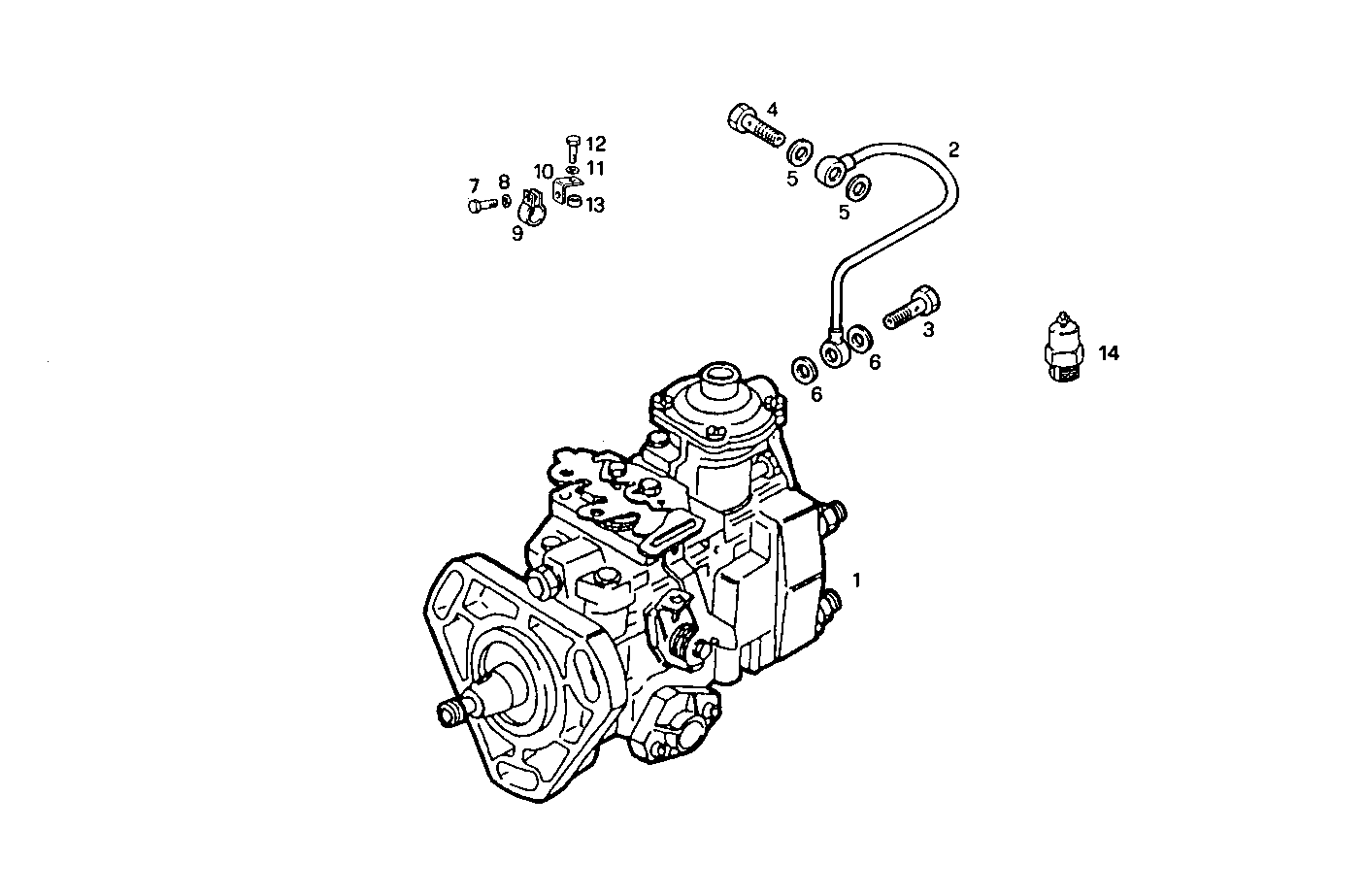

1400.162 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 98441326 | DISTRIB.INJ.PUMP ASSY |
2 | 99475739 | AIR PIPE/DUCT |
3 | 4864077 | SCREW CONNECTOR |
4 | 4864080 | SCREW CONNECTOR M10X1,25 |
5 | 4858606 | GASKET Ø10X14X1 MM |
6 | 4858605 | WASHER Ø8X12 MM |
7 | 15970524 | HEXAGON BOLT M10X1,25X20 |
8 | 17090174 | SPRING WASHER Ø10X20 MM |
9 | 4656139 | FASTENING BRACKET |
10 | 99475782 | RETAINER |
11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
12 | 16605424 | SCREW M8X16 MM (8.8) |
13 | 99475786 | SPACING BAR |
14 | 8100253 | ELECTROVALVE 12V |
