8061Si11.06

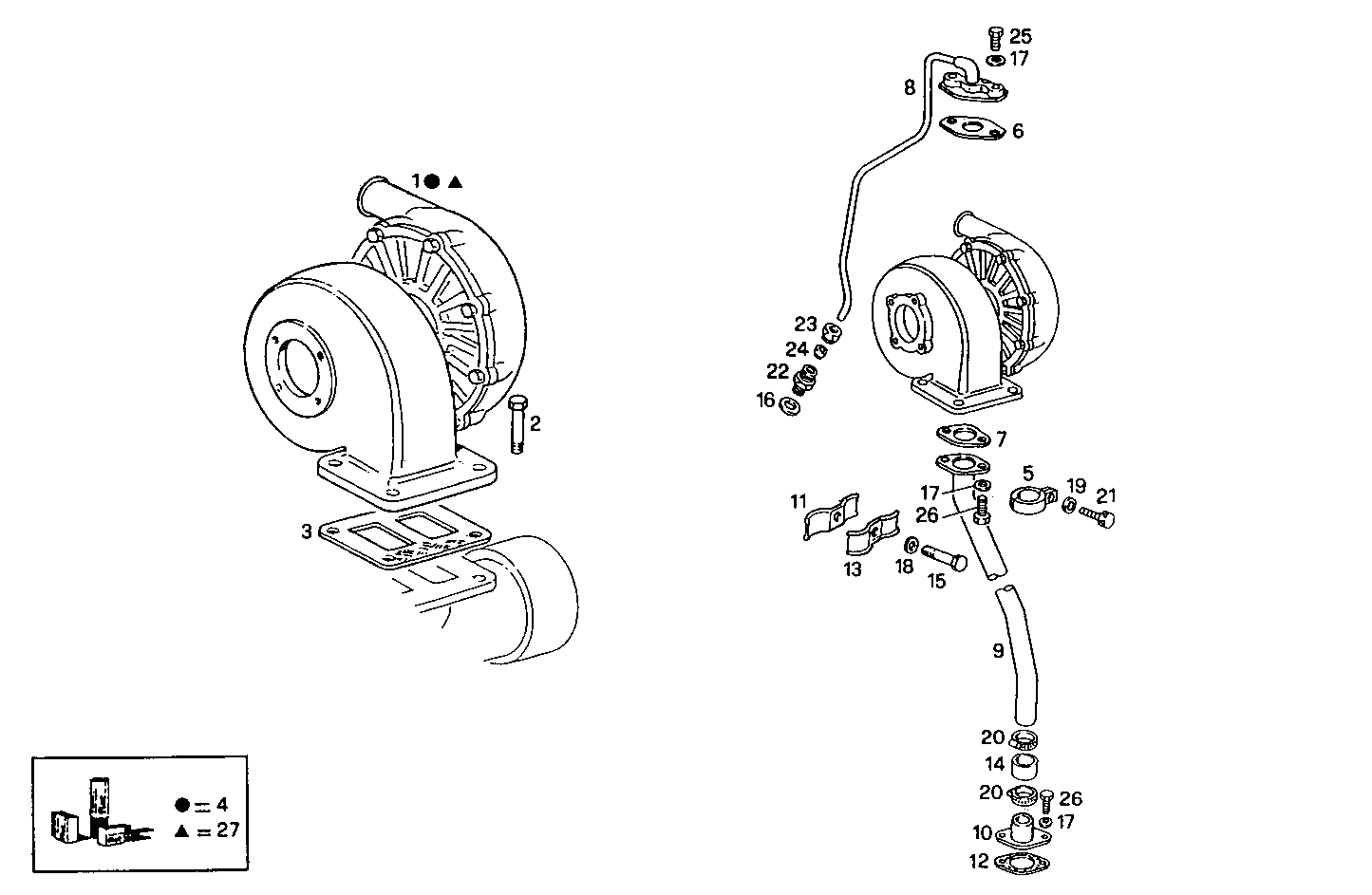

2400.089 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 4718129 TURBOCHARGER ASSY GARRETT
2 98491312 HEXAGON BOLT
3 98428396 FLAT ENGINE GASKET
4 8092757 KIT-TURBOCHARGER
5 4033229 CLIP
6 98415922 FLAT ENGINE GASKET
7 98415923 FLAT ENGINE GASKET
8 4772720 OIL LINE INNER
9 4779773 OIL LINE
10 4754153 FLANGED SOCKET
11 4755435 RETAINER
12 98401046 FLAT ENGINE GASKET
13 4755436 RETAINER
14 98420478 RUBBER SLEEVE
15 16603724 HEXAGON BOLT M6X20 MM (8.8)
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17088474 WASHER Ø6X12 MM
19 17090174 SPRING WASHER Ø10X20 MM
20 17764592 CLIP Ø20/32 MM
21 15970121 HEXAGON BOLT M10X14 MM
22 16500311 PIPE SOCKET M16X1,5/M18X1,5
23 16506911 NUT M18X1,5
24 16507611 WASHER Ø12 MM
25 16605824 HEXAGON BOLT M8X35 MM
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
27 8092758 KIT-TURBOCHARGER
