8061Si11.06

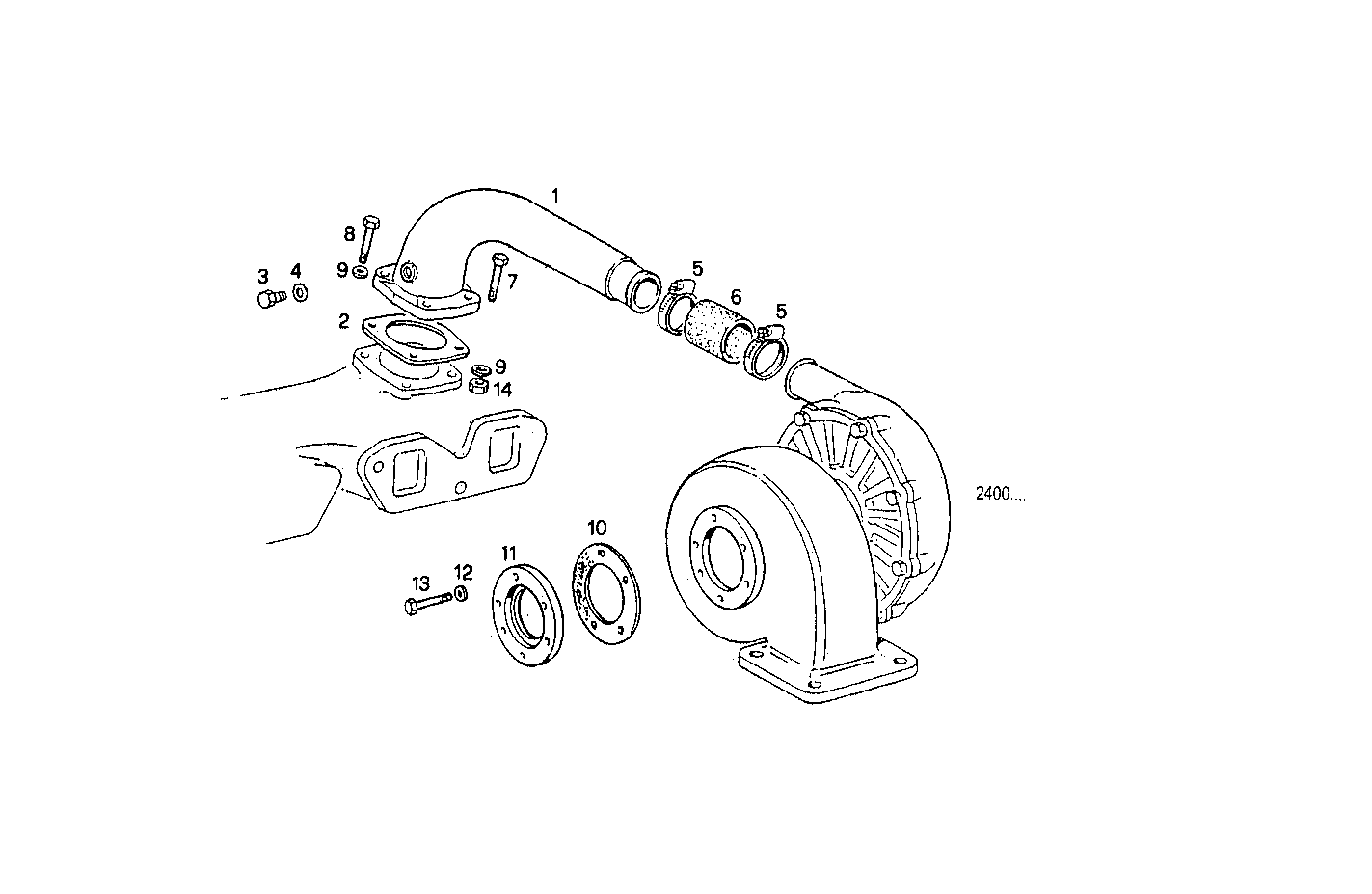

2420.098 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4754495 | INTAKE ELBOW |
| 2 | 98400790 | FLAT ENGINE GASKET |
| 3 | 10305171 | PLUG M22X1,5 |
| 4 | 10279560 | SEAL GASKET Ø22,2 MM |
| 5 | 98490783 | CLIP Ø55-65 MM |
| 6 | 98448211 | TURBOCHARGER HOSE M16X55 MM |
| 7 | 16605924 | SCREW M8X40 MM |
| 8 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 9 | 17094914 | WASHER 8x16 |
| 10 | 98428398 | FLAT ENGINE GASKET |
| 11 | 98402022 | FLANGE |
| 12 | 4799587 | WASHER |
| 13 | 4799275 | HEXAGON BOLT |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
