8061Si11.06

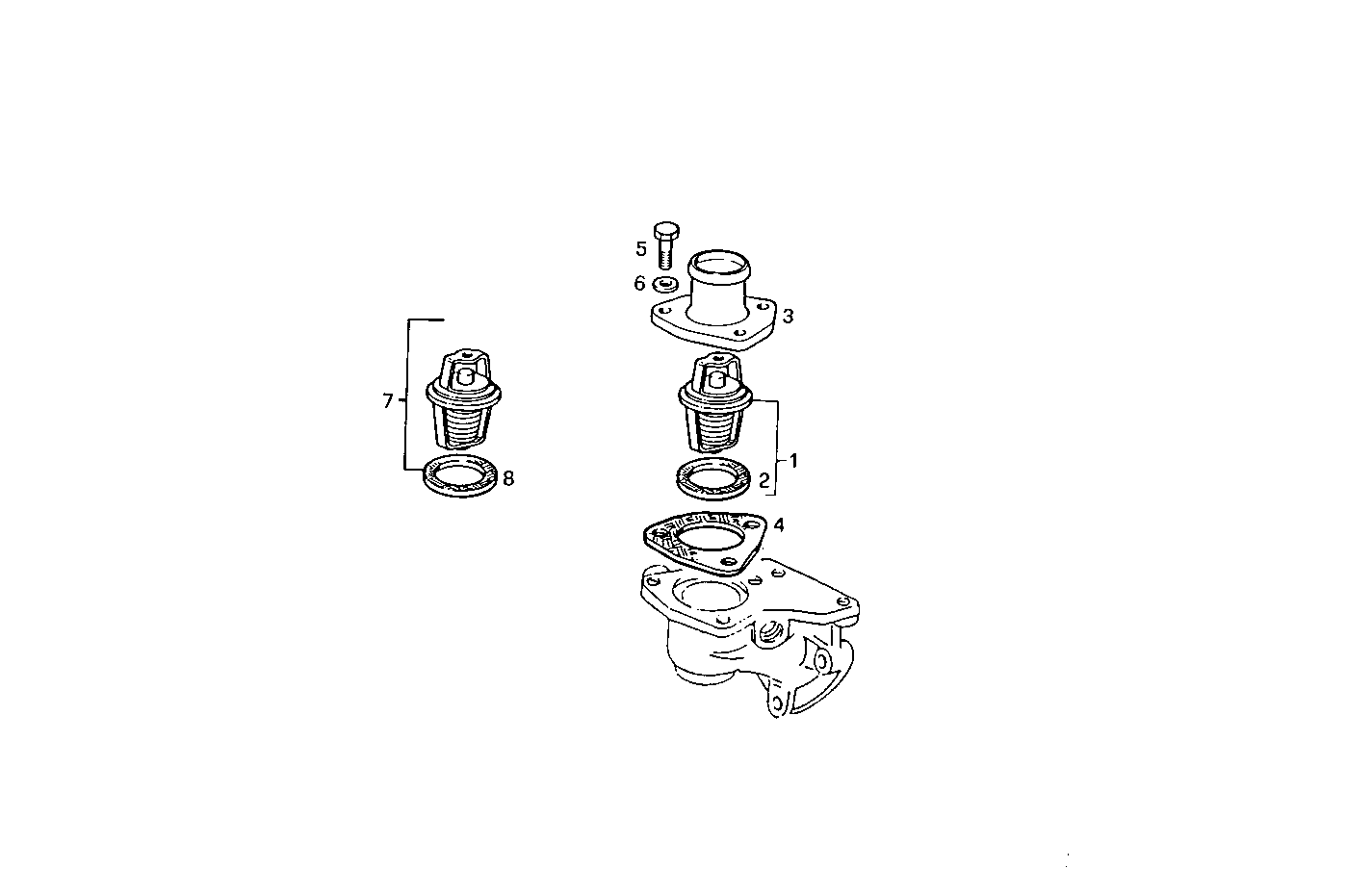

3220.002 THERMOSTAT
Item | Part number | Description |
---|---|---|
1 | 4823210 | THERMOSTAT GILARDINI |
2 | 4823212 | RUBBER GASKET |
3 | 4661543 | COVER |
4 | 98482590 | GASKET |
5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 4823211 | THERMOSTAT BEHR |
8 | 4823213 | GASKET |
