8061Si11.06

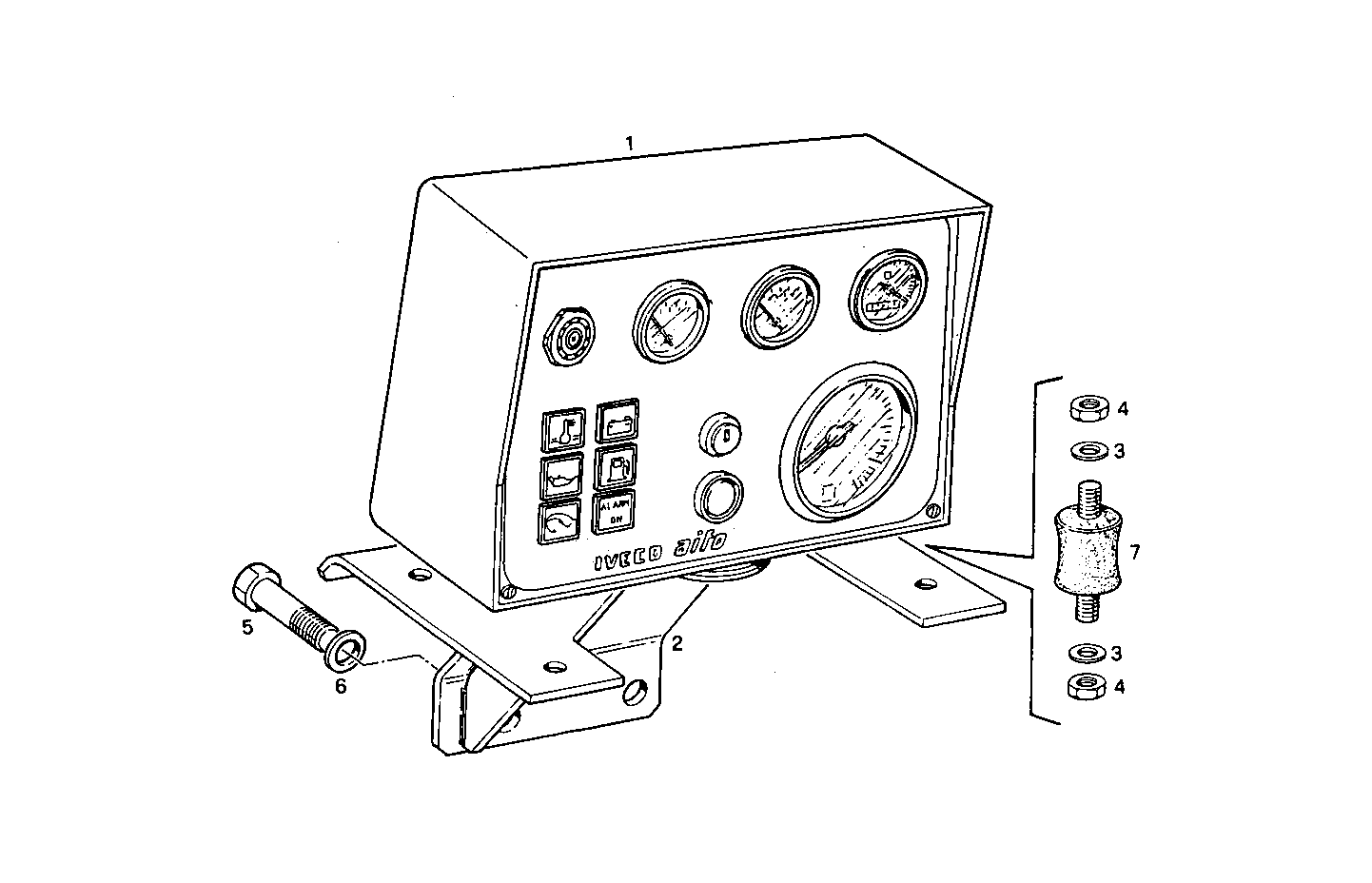

A38670006 ELECTRIC INSTRUMENTS PANEL - 12/24V

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8005745 INSTRUMENTS BOARD ASSY
2 8104928 RETAINER
3 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
4 15896211 HEXAGON NUT M6
5 15970521 HEXAGON BOLT M10X20 MM
6 11198371 SPRING WASHER Ø10X20 MM
7 4910949 RUBBER LUG
