8061Si12.06

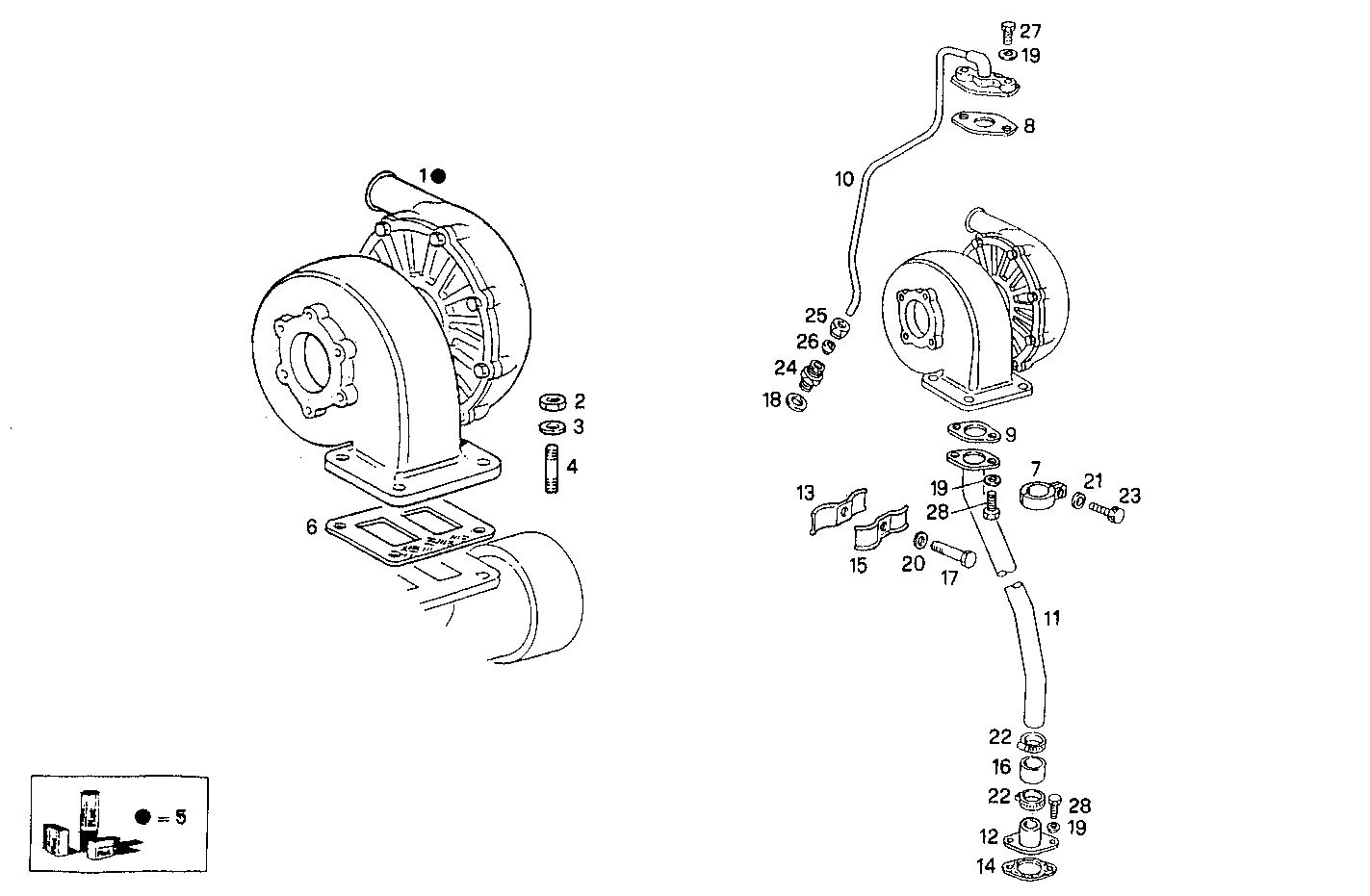

2400.082 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8018151 TURBOCHARGER ASSY K.K.K.
2 17038121 HEXAGON NUT M10
3 17090174 SPRING WASHER Ø10X20 MM
4 16731224 STUD M10X25 MM
5 8092490 KIT-TURBOCHARGER K.K.K.
6 98428396 FLAT ENGINE GASKET
7 4033229 CLIP
8 98415922 FLAT ENGINE GASKET
9 98415923 FLAT ENGINE GASKET
10 8018924 OIL LINE K.K.K.
11 4779773 OIL LINE
12 4754153 FLANGED SOCKET
13 4755435 RETAINER
14 98401046 FLAT ENGINE GASKET
15 4755436 RETAINER
16 98420478 RUBBER SLEEVE
17 16603724 HEXAGON BOLT M6X20 MM (8.8)
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 17088474 WASHER Ø6X12 MM
21 17090274 WASHER Ø10X20 MM
22 17764592 CLIP Ø20/32 MM
23 15970121 HEXAGON BOLT M10X14 MM
24 16500311 PIPE SOCKET M16X1,5/M18X1,5
25 16506911 NUT M18X1,5
26 16507611 WASHER Ø12 MM
27 16605824 HEXAGON BOLT M8X35 MM
28 16605624 HEXAGON BOLT M8X25 MM (8.8)
