8061Si13.05

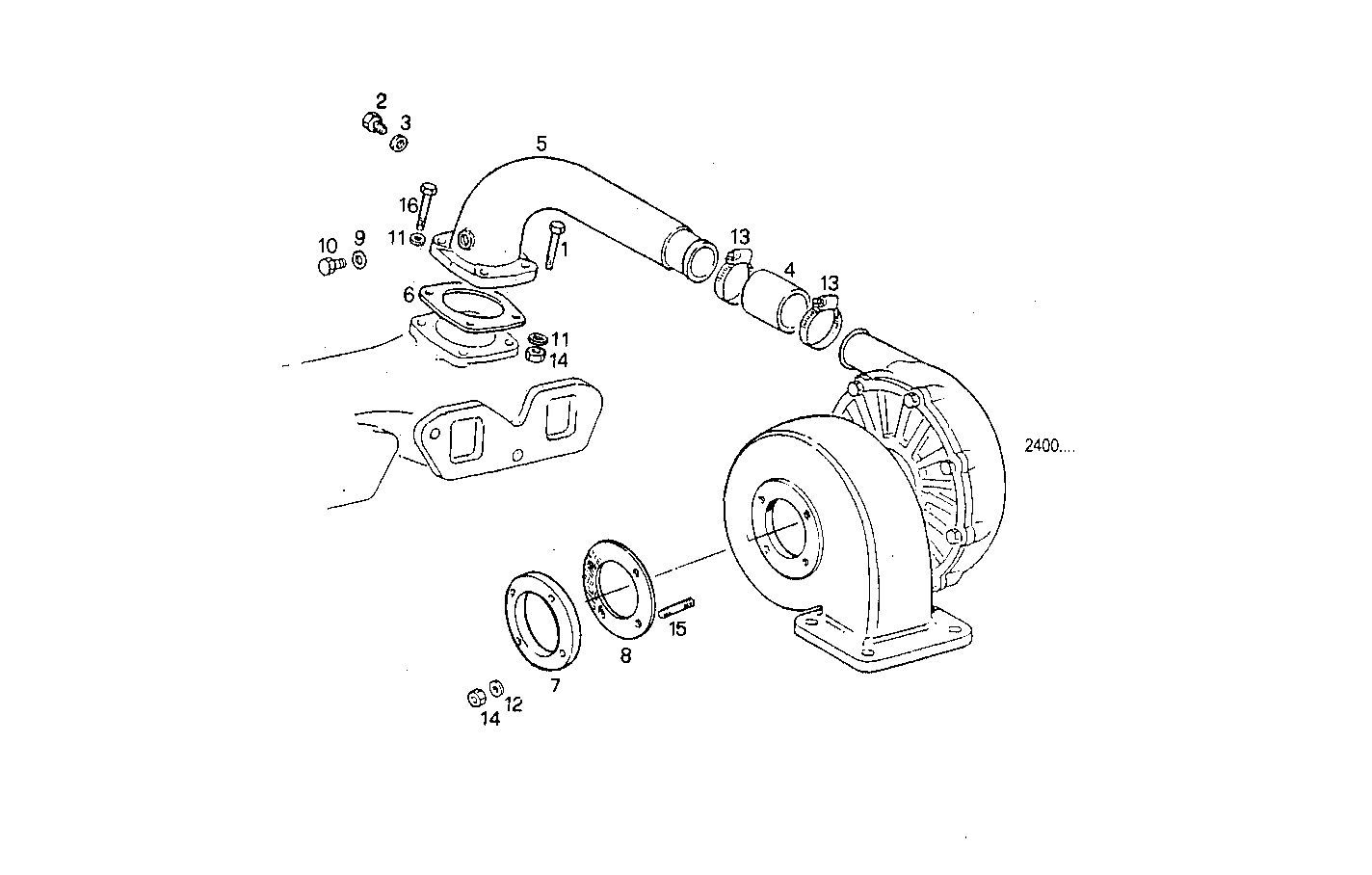

2420.085 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16605924 | SCREW M8X40 MM |
| 2 | 11903111 | LOCK PLUG M10X1,25 |
| 3 | 4858606 | GASKET Ø10X14X1 MM |
| 4 | 98448211 | TURBOCHARGER HOSE M16X55 MM |
| 5 | 4754495 | INTAKE ELBOW |
| 6 | 98400790 | FLAT ENGINE GASKET |
| 7 | 8112977 | FLANGE |
| 8 | 4729026 | GASKET |
| 9 | 10263460 | WASHER Ø22X28X1,5 MM |
| 10 | 16992611 | THREADED PLUG M22X1,5 |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 17768191 | CLIP |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 16729524 | STUD M8X1,25X30 |
| 16 | 16605734 | HEXAGON BOLT M8X30 MM |
