8061Si15.05

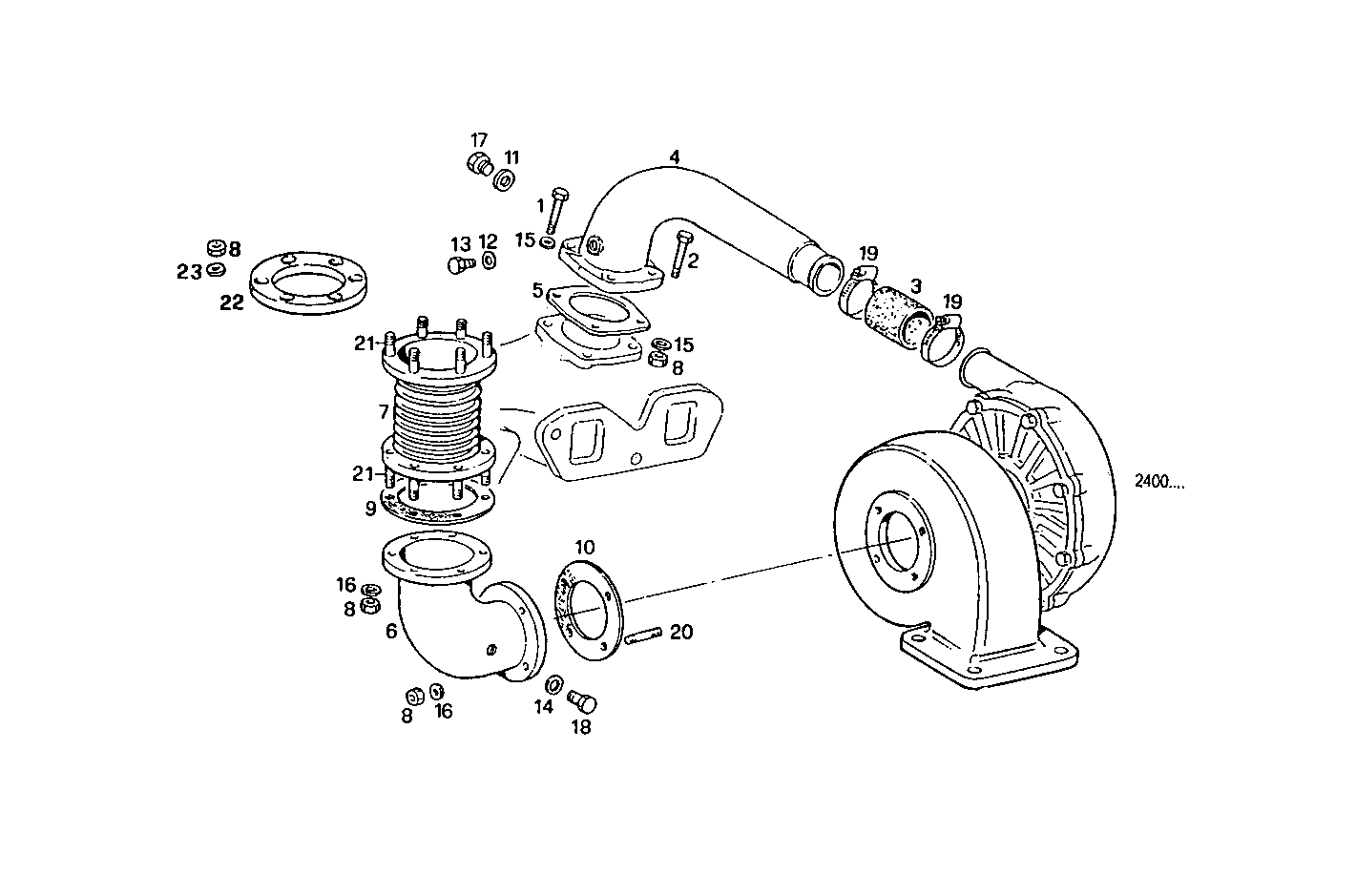

2420.026 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 16605734 | HEXAGON BOLT M8X30 MM |
2 | 16605924 | SCREW M8X40 MM |
3 | 98421377 | RUBBER SLEEVE Ø51 MM |
4 | 4754495 | INTAKE ELBOW |
5 | 98400790 | FLAT ENGINE GASKET |
6 | 8105001 | EXHAUST ELBOW |
7 | 4935378 | EXHAUST BELLOWS |
8 | 17037931 | HEXAGON NUT M8X1,25 |
9 | 8009606 | GASKET |
10 | 4734747 | GASKET |
11 | 4858606 | GASKET Ø10X14X1 MM |
12 | 16508460 | WASHER 22x27x1,5 |
13 | 16992611 | THREADED PLUG M22X1,5 |
14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
15 | 17094914 | WASHER 8x16 |
16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
17 | 11903111 | LOCK PLUG M10X1,25 |
18 | 16992211 | THREADED PLUG M12X1,5 |
19 | 4788416 | CLIP |
20 | 16729424 | STUD M8X1,25X25 |
21 | 13516921 | STUD M8X12X22 MM |
22 | 4919183 | FLANGE |
23 | 16665504 | WASHER Ø8 MM |
