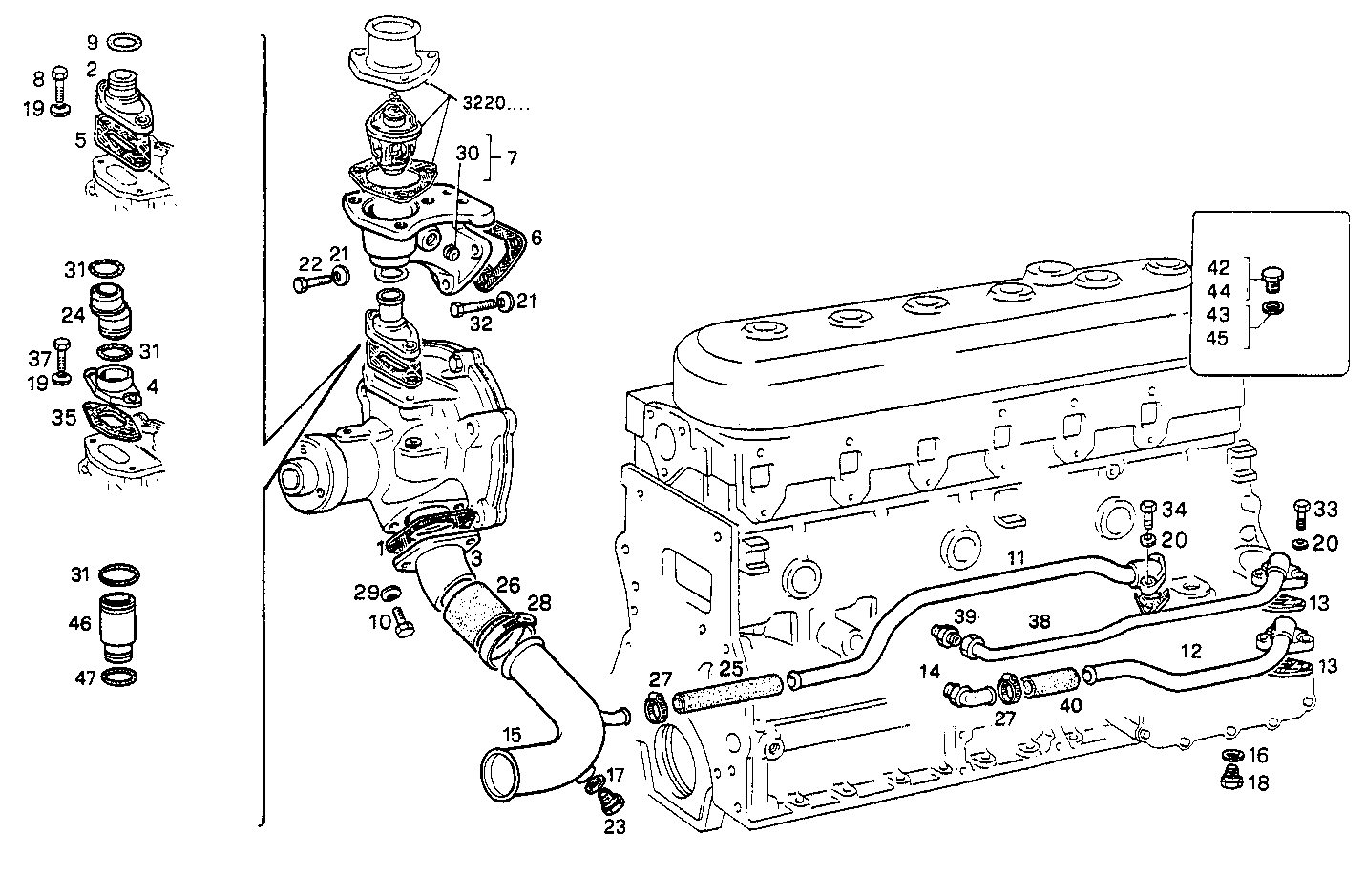

| Item |
Part number |
Description |
|
1 |
98418621 |
GASKET |
|
2 |
4770247 |
WATER PIPE [up to 511892] |
|
3 |
4697838 |
WATER PIPE |
|
4 |
4859908 |
PIPE SOCKET [up to 657423] |
|
5 |
4848840 |
FLAT ENGINE GASKET [up to 511892] |
|
6 |
4851926 |
FLAT ENGINE GASKET |
|
7 |
4823608 |
THERMOSTAT BODY ASSY [from 555948] |
|
8 |
4838482 |
HEXAGON BOLT M8X20 MM |
|
9 |
14462881 |
O-RING SP=3,53 MM |
|
10 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
11 |
4762766 |
WATER PIPE |
|
12 |
4762764 |
WATER PIPE [up to ...] |
|
13 |
4853970 |
FLAT ENGINE GASKET |
|
14 |
4784798 |
PIPE SOCKET [up to ...] |
|
15 |
8104835 |
WATER PIPE |
|
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
17 |
4858606 |
GASKET Ø10X14X1 MM |
|
18 |
16992411 |
THREADED PLUG M16X1,5 |
|
19 |
14496521 |
WASHER Ø8,5 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
17090274 |
WASHER Ø10X20 MM |
|
22 |
11234724 |
HEXAGON BOLT M10X1,25X45 MM |
|
23 |
16992111 |
THREADED PLUG M10X1 |
|
24 |
4859907 |
PIPE SOCKET [up to 657423] |
|
25 |
17737687 |
WATER HOSE |
|
26 |
17742687 |
RUBBER SLEEVE |
|
27 |
17764592 |
CLIP Ø20/32 MM |
|
28 |
17764791 |
CLIP Ø32/50 MM |
|
29 |
17094914 |
WASHER 8x16 |
|
30 |
16997611 |
THREADED PLUG M20X1,5 |
|
31 |
17282281 |
O-RING 2,62x23,47 |
|
32 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
33 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
34 |
16625734 |
HEXAGON BOLT M8X35 |
|
35 |
98417182 |
FLAT ENGINE GASKET [up to 07-92] |
|
37 |
4798845 |
SCREW |
|
38 |
98418656 |
WATER PIPE [from ...] |
|
39 |
98443290 |
PIPE SOCKET [from ...] |
|
40 |
98434883 |
WATER HOSE [up to ...] |
|
42 |
10305171 |
PLUG M22X1,5 |
|
43 |
16508460 |
WASHER 22x27x1,5 |
|
44 |
16992440 |
THREADED PLUG M16X1,5 |
|
45 |
16508260 |
WASHER Ø16X20 MM |
|
46 |
98464616 |
WATER PIPE [up to 565948] |
|
47 |
17288681 |
O-RING Ø24,9 MM SP=3,5 MM |
