8061Si25.00

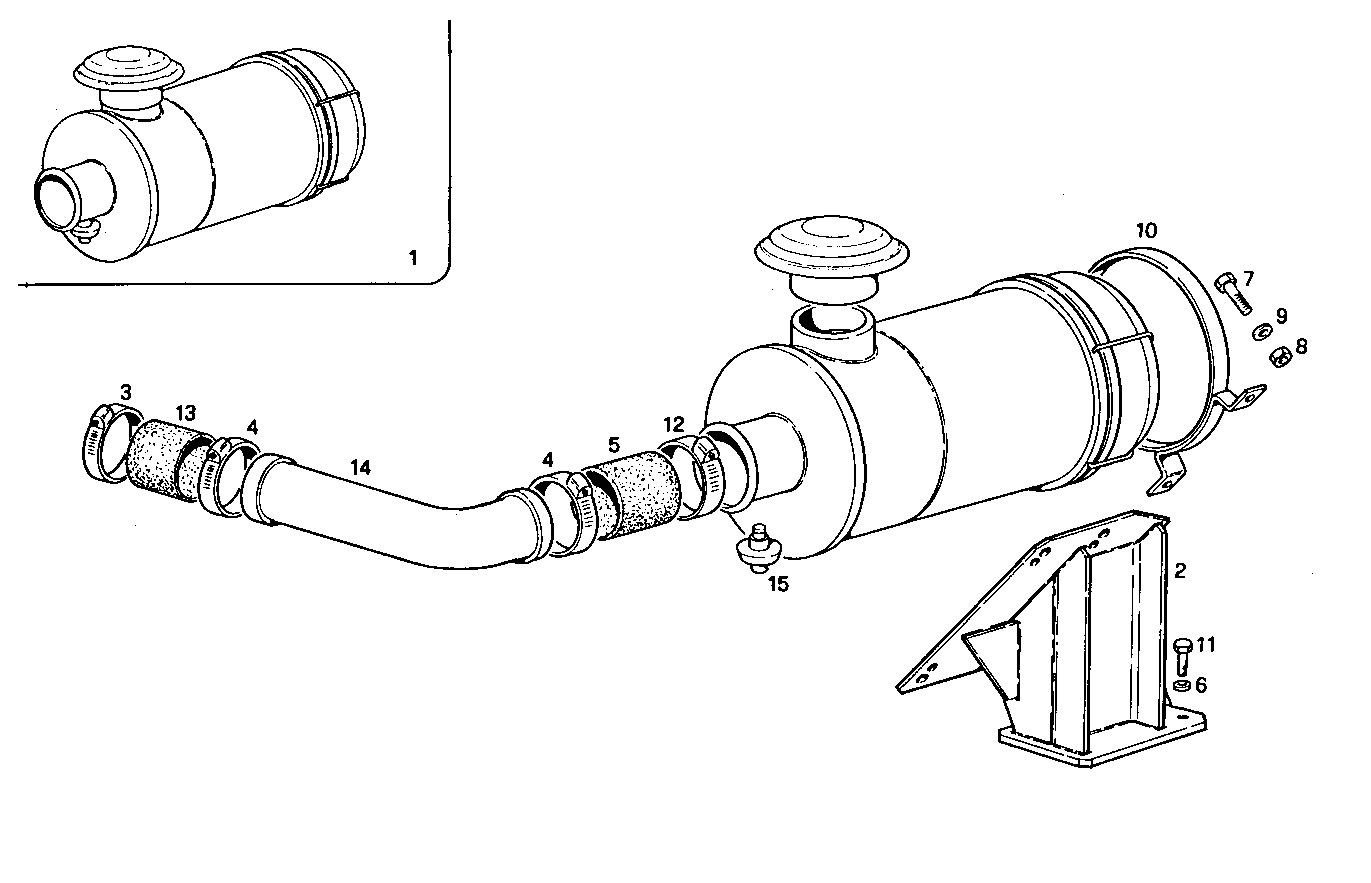

A21170002 DRY AIR CLEANER - with electric clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8106800 | AIR CLEANER ASSY |
| 2 | 8008125 | SUPPORT |
| 3 | 17765192 | HOSE CLIP Ø70-90 MM |
| 4 | 17765392 | CLIP Ø90-110 MM |
| 5 | 8106719 | CONNECTOR SLEEVE |
| 6 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 7 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 8 | 16101511 | HEXAGON NUT M12X1,25 |
| 9 | 11198679 | SPRING WASHER Ø13 MM |
| 10 | 8106822 | CLIP |
| 11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 12 | 17765592 | CLIP Ø110/130 MM |
| 13 | 8104246 | FILTER HOSE |
| 14 | 8106797 | AIR PIPE/DUCT |
| 15 | 4758003 | AIR PRESSURE GAUGE |
