8061Si25.05

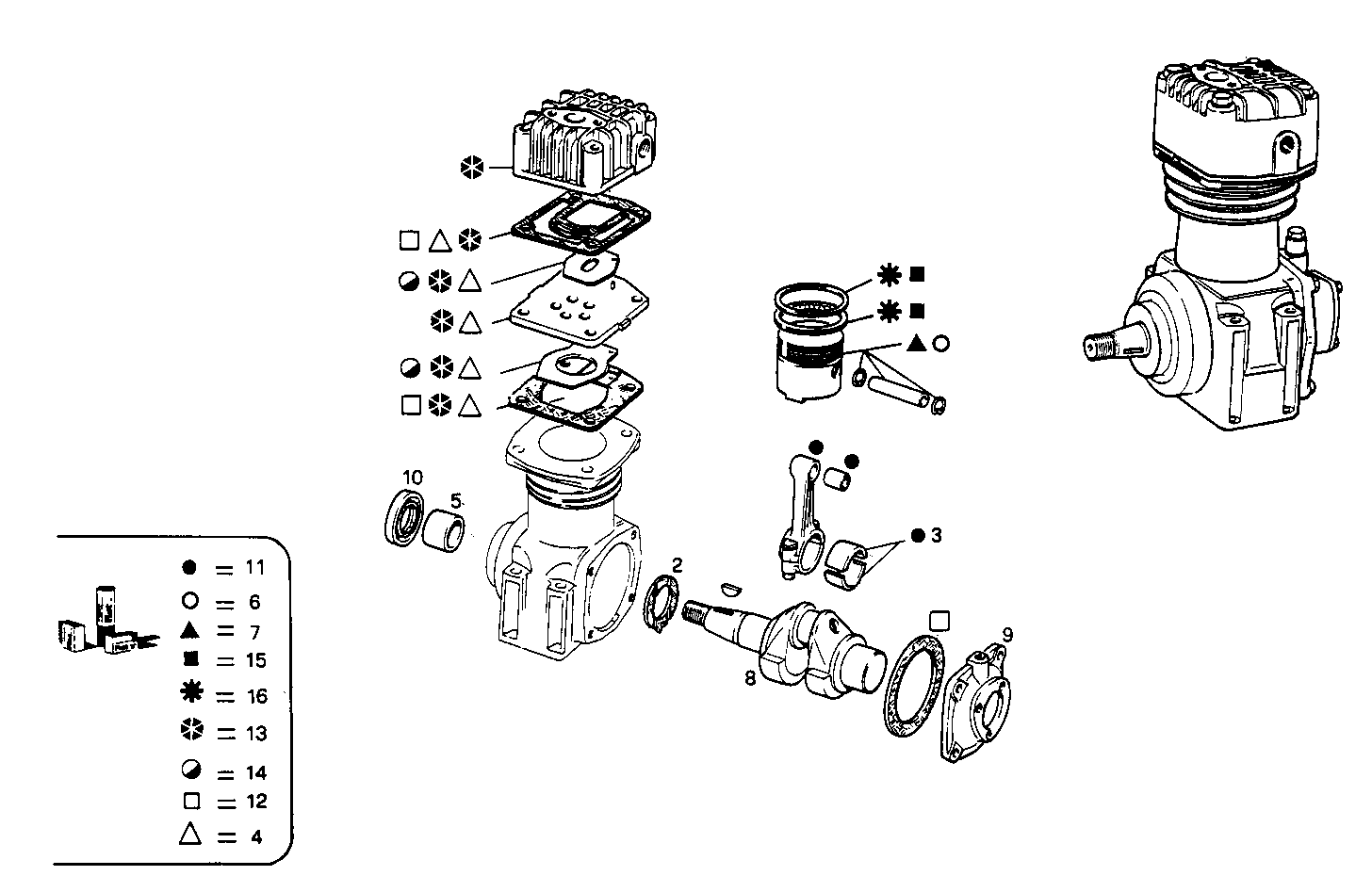

T1804001 AIR COMPRESSOR - (components)
| Item | Part number | Description |
|---|---|---|
| 2 | 9918513 | FASTENING RING |
| 3 | 9918517 | HALF-BEARING |
| 4 | 79035554 | KIT-AIR COMPRESSOR |
| 5 | 9918511 | BUSH |
| 6 | 9980040 | KIT-AIR COMPRESSOR Ø70 MM |
| 7 | 9980033 | KIT-AIR COMPRESSOR Ø70,5 MM |
| 8 | 79034428 | COMPR.CRANKSHAFT |
| 9 | 93159502 | FLANGE |
| 10 | 79043163 | SHAFT SEAL |
| 11 | 79069742 | KIT-AIR COMPRESSOR |
| 12 | 93161059 | KIT-AIR COMPRESSOR |
| 13 | 79035552 | KIT-AIR COMPRESSOR |
| 14 | 79072947 | KIT-AIR COMPRESSOR |
| 15 | 79072949 | KIT-AIR COMPRESSOR Ø70.5 MM |
| 16 | 79072948 | KIT-AIR COMPRESSOR Ø70 MM |
