8061Si35.05

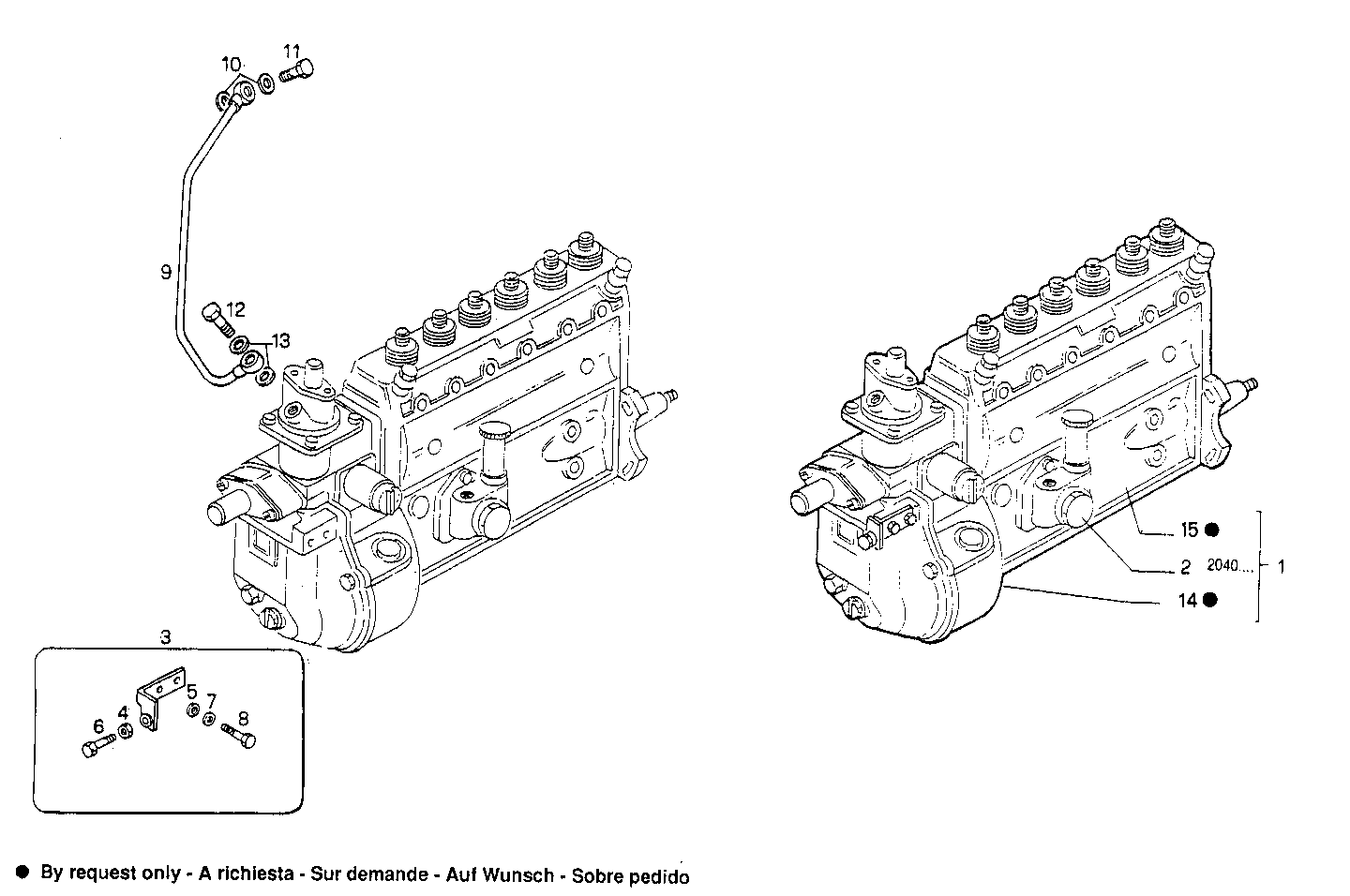

1400.085 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8010891 | INLINE INJECT.PUMP ASSY W.ALTECNA |
| 3 | 4756612 | CONTROL ASSEMBLY ASSY |
| 4 | 4756616 | NUT |
| 5 | 4799685 | WASHER |
| 6 | 4756615 | SCREW |
| 7 | 10571571 | SPRING WASHER Ø6 MM |
| 8 | 10902211 | HEXAGON BOLT M6X16 MM |
| 9 | 4755463 | INJECTION LINE |
| 10 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 11 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 12 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 13 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
