8061Si35.05

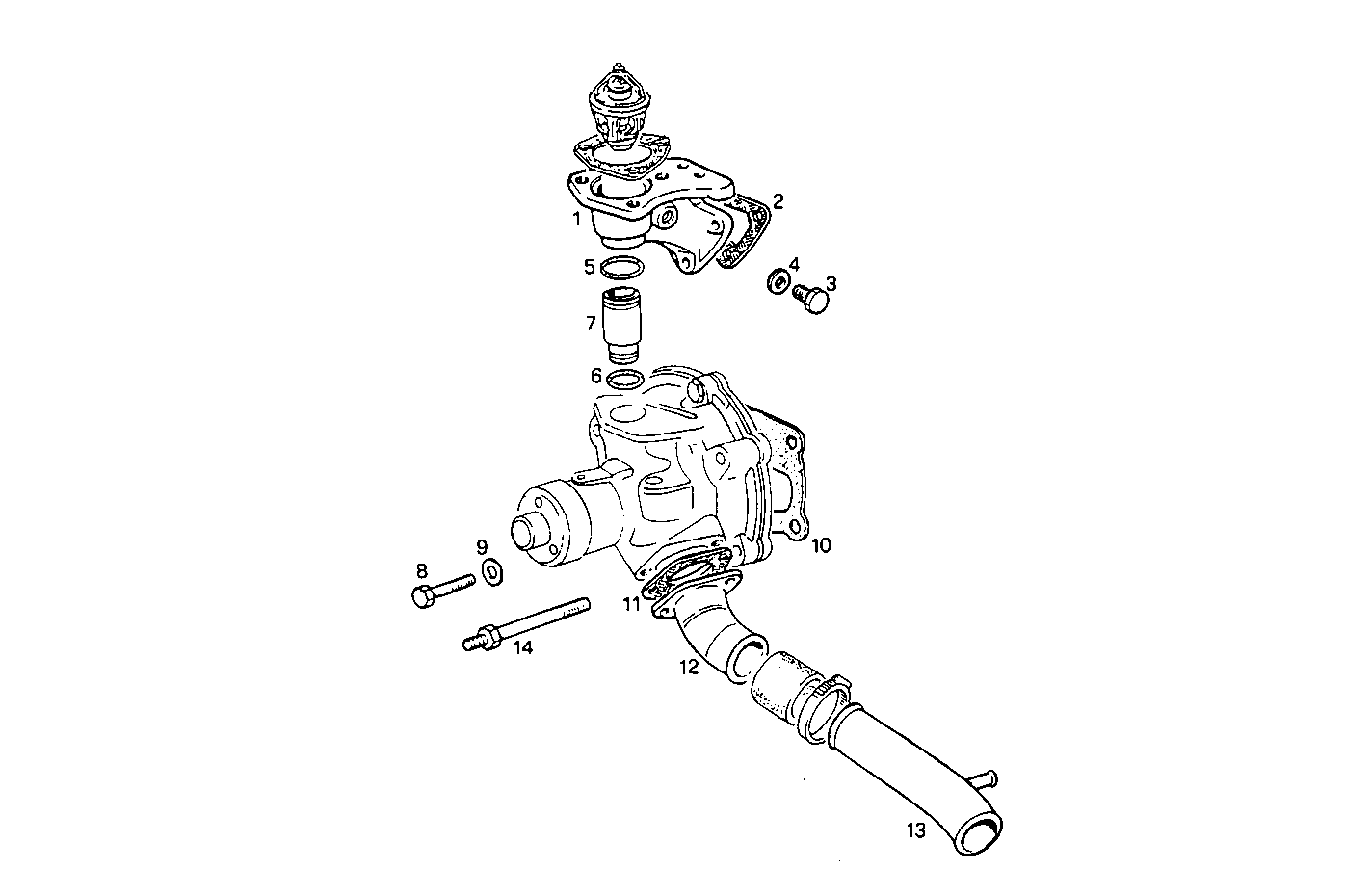

A08010034/02 HIGHTPUSHER FAN - without compressor
Item | Part number | Description |
---|---|---|
1 | 4842710 | THERMOSTAT BODY |
2 | 98400784 | GASKET |
3 | 10304911 | THREADED PLUG M20X1,5 |
4 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
5 | 98458442 | O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
6 | 98458443 | O-RING DIA 2.62X25.07 [from 657424] |
7 | 98458213 | CONNECTOR |
8 | 11307024 | SCREW M10X1,25X40 MM |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 98400776 | FLAT ENGINE GASKET |
11 | 98418621 | GASKET |
12 | 4772995 | WATER PIPE |
13 | 8016673 | WATER PIPE |
14 | 4695853 | ENGINE SILENTBLOCK |
