8061Si36.05

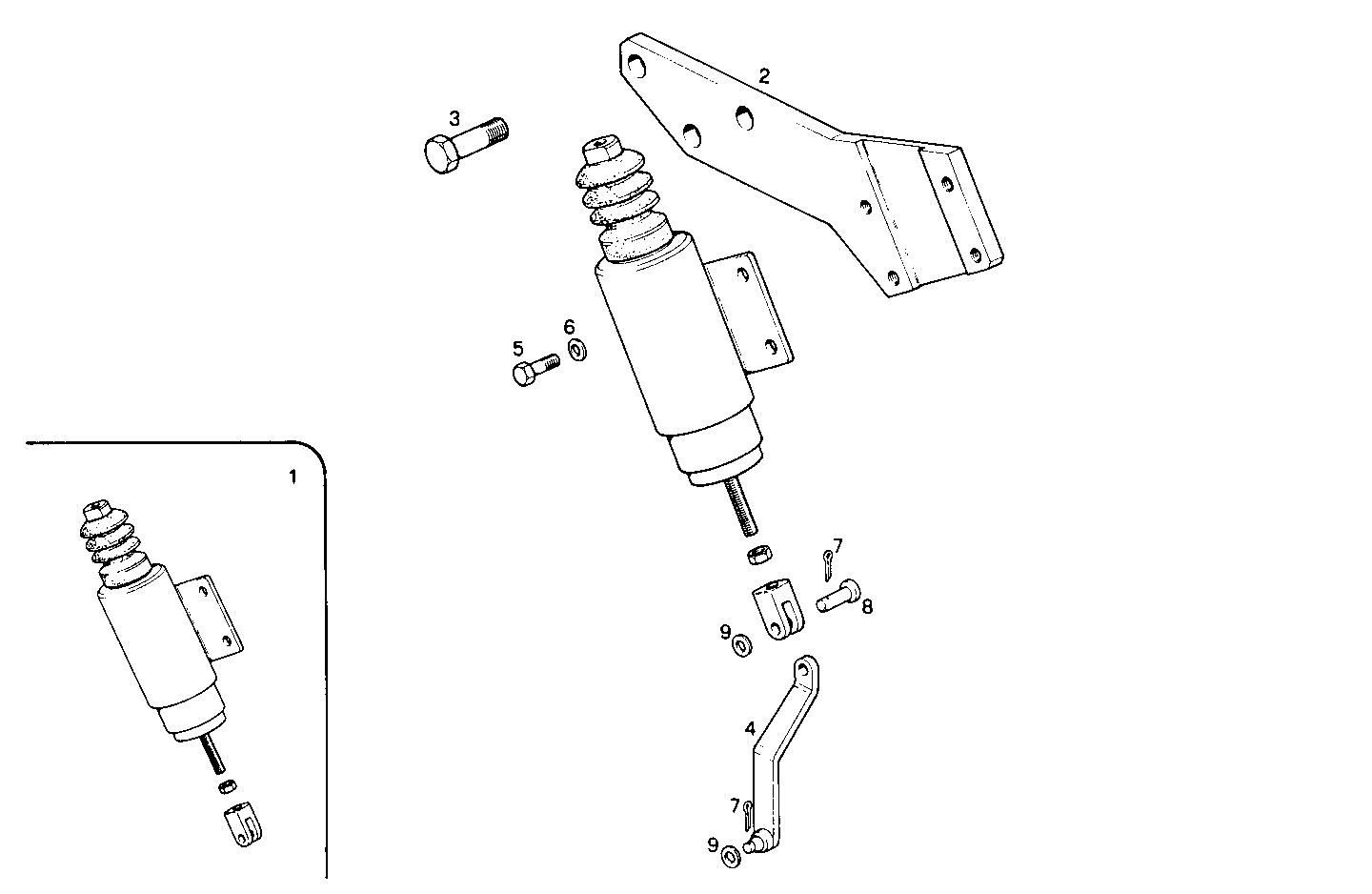

A38410022 STOP SOLENOID - ENERGIZE TO STOP - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8110899 | SOLENOID ASSY 12V |
| 2 | 8014921 | SUPPORT |
| 3 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 8014992 | CLEVIS |
| 5 | 16603524 | SCREW M6X12 MM (8.8) |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16851301 | SPLIT PIN |
| 8 | 17718411 | PIN Ø5 MM |
| 9 | 17094504 | WASHER Ø5,3X10 MM |
