8061Si40.00

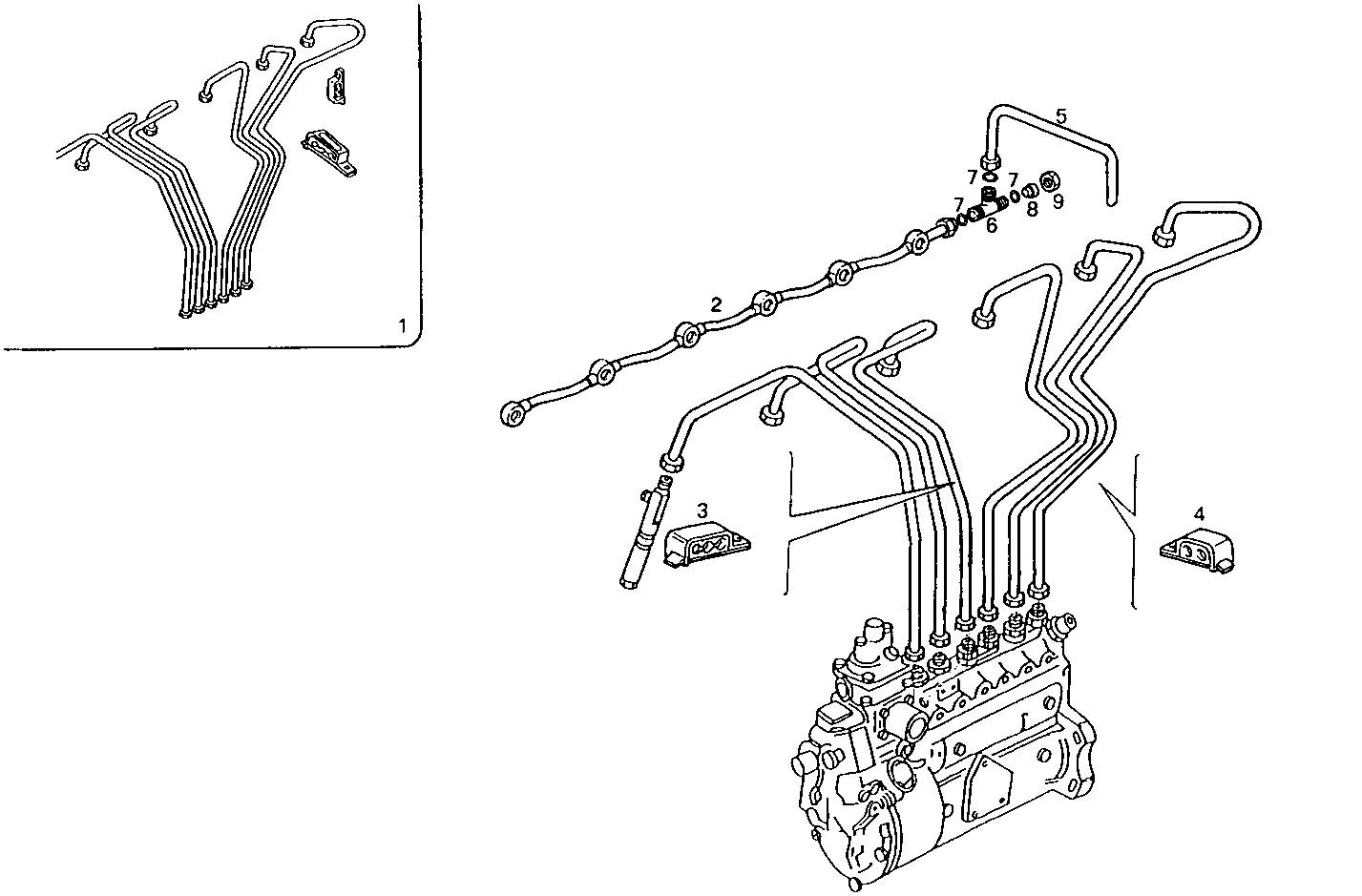

2020.115 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98410496 | INJECTION LINE SET ASSY |
| 2 | 8029298 | FUEL LINE D [from 01-09-02] |
| 3 | 4806611 | FASTENING BRACKET |
| 4 | 4806612 | FASTENING BRACKET |
| 5 | 8029493 | FUEL LINE |
| 6 | 16505114 | T-COUPLING |
| 7 | 8024645 | O-RING Ø4 MM |
| 8 | 16507411 | WASHER |
| 9 | 16506711 | UNION NUT |
