8061Si40.00

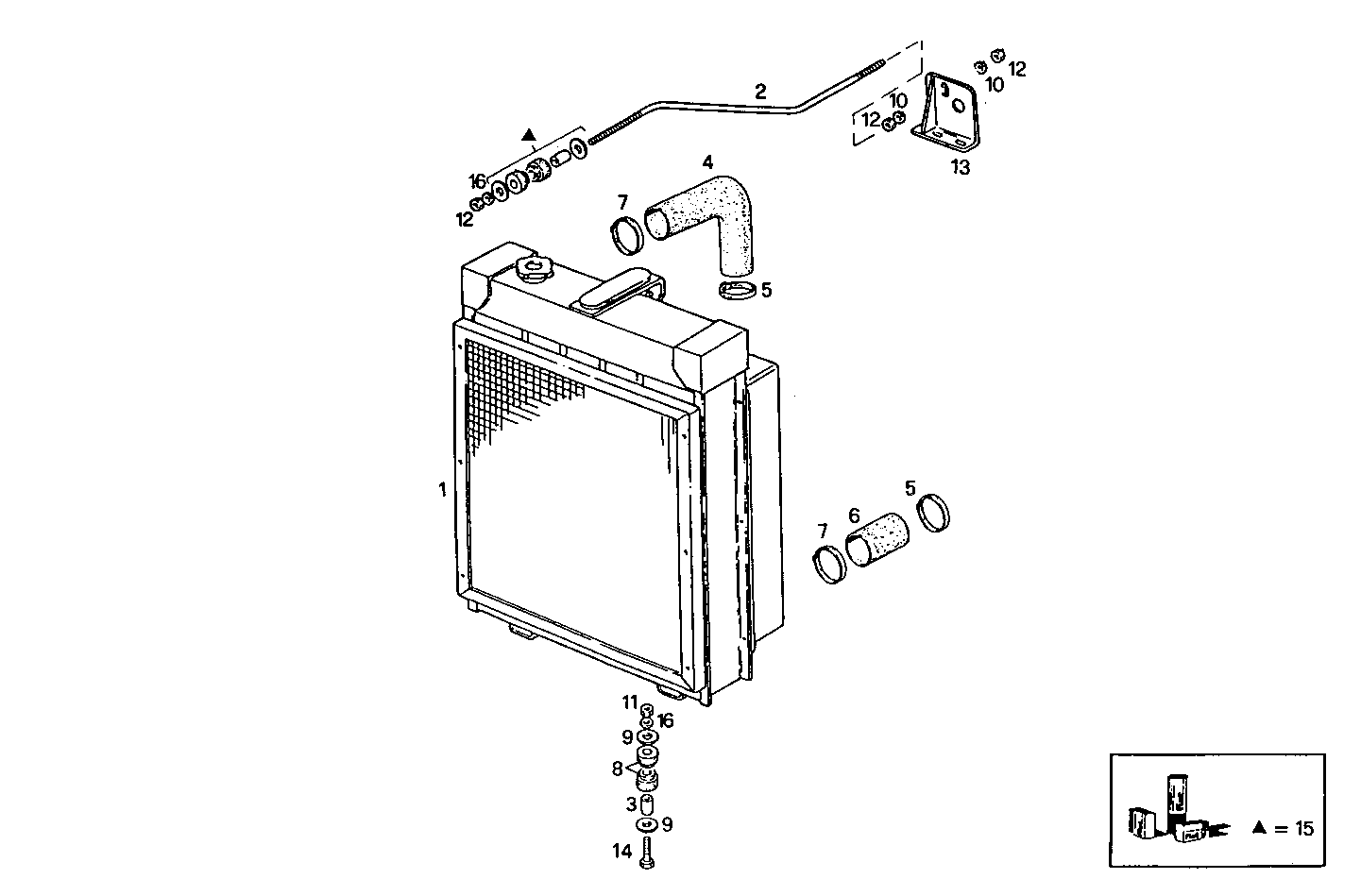

A22410016 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 8038540 | WATER RADIATOR OPT. |
| 1 | 8020420 | WATER RADIATOR OPT. |
| 2 | 8020421 | TIE ROD |
| 3 | 8108634 | SPACING BAR |
| 4 | 8024770 | RUBBER SLEEVE |
| 5 | 17764891 | CLIP Ø40/60 MM |
| 6 | 8031363 | RUBBER SLEEVE |
| 7 | 17764991 | CLIP Ø50/70 MM |
| 8 | 741569 | RUBBER LUG |
| 9 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 10 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 11 | 17038421 | HEXAGON NUT M12 (8) |
| 13 | 8020521 | RETAINER |
| 14 | 16610724 | SCREW M12X1,75X70 MM |
| 15 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
| 16 | 17091074 | WASHER Ø12X24X2,8 MM |
