8061Si40.00

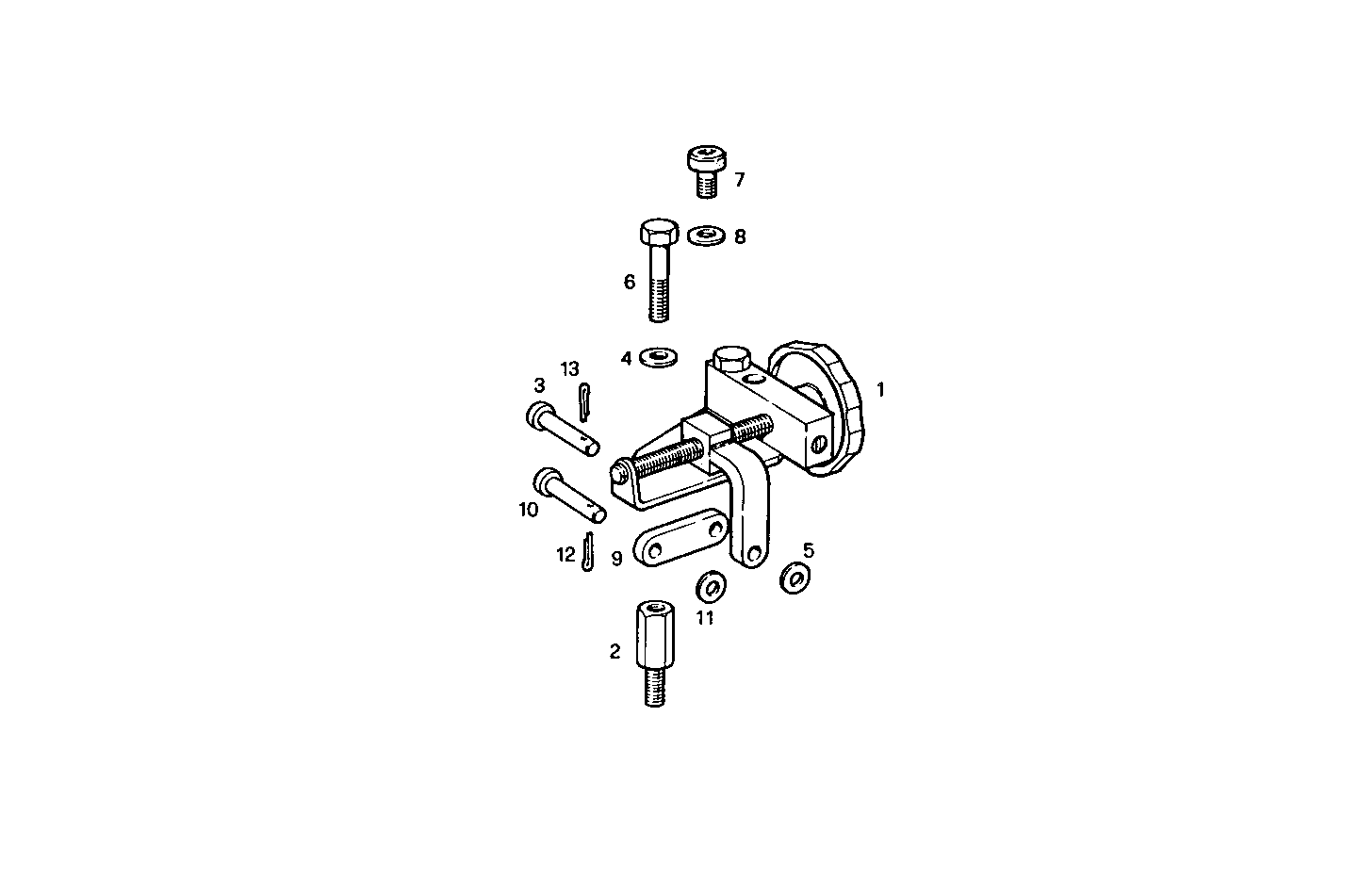

A24060018 PRECISION ADJUSTMENT ACCELERATOR - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8031366 | CONTROL ASSEMBLY |
| 2 | 8012878 | SPACING BAR |
| 3 | 17718511 | PIN Ø6 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17094604 | WASHER Ø6X11 MM |
| 6 | 16603924 | HEXAGON BOLT M6X30 MM |
| 7 | 17133114 | SCREW M6X12 |
| 8 | 10569279 | WASHER Ø6X9,9X1,6 MM |
| 9 | 8031359 | CLEVIS |
| 10 | 17718411 | PIN Ø5 MM |
| 11 | 17094504 | WASHER Ø5,3X10 MM |
| 12 | 16850301 | SPLIT PIN |
| 13 | 16852501 | SPLIT PIN Ø1,6X12 MM |
