8061SM16.11

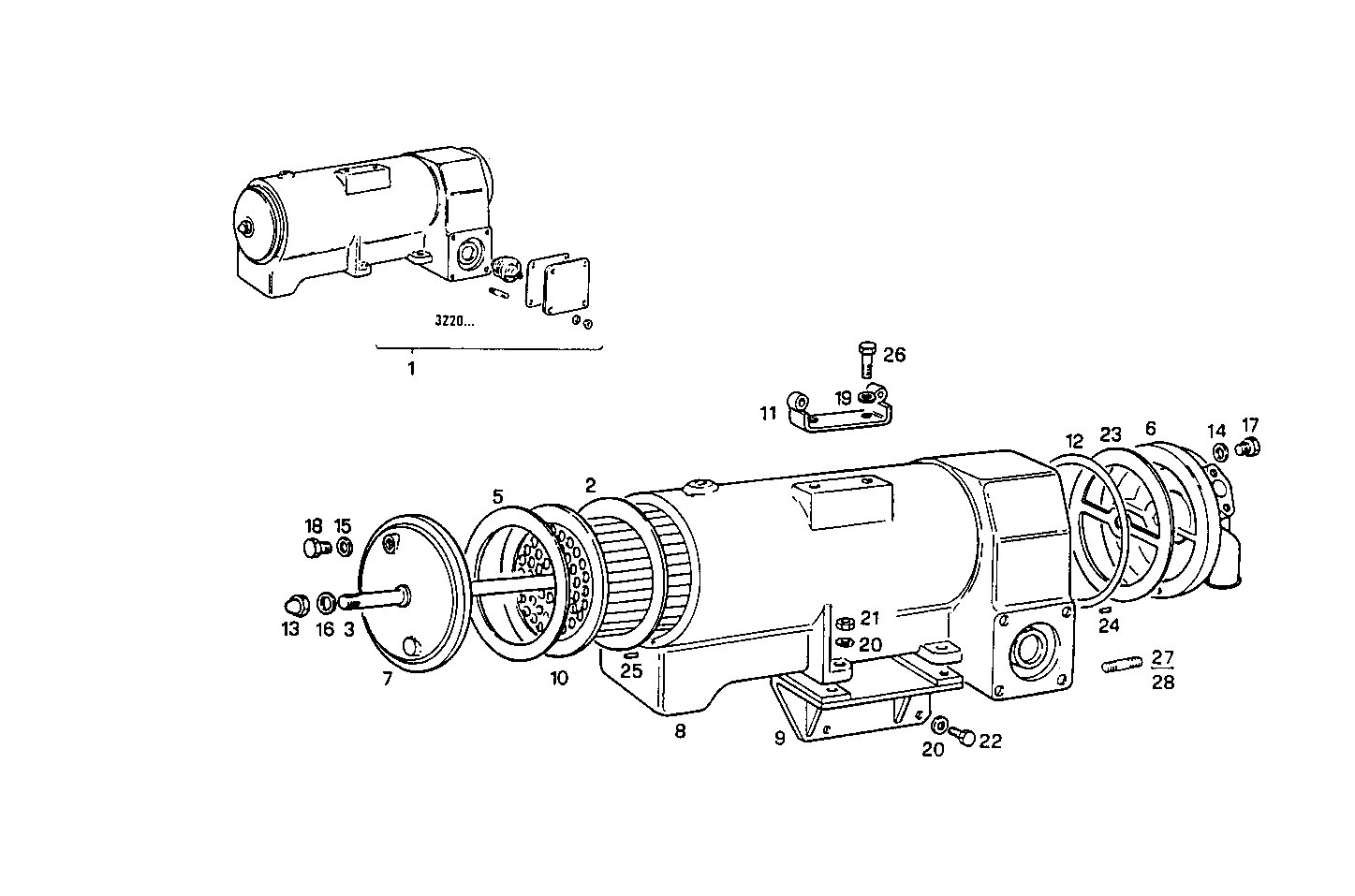

3370.017 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
2 8007315 WATER/SEA WATER HEAT EXCH ASSY
3 4918908 TIE ROD
4 4918921 GASKET
5 4930157 GASKET
6 8005450 HEAT EXCHANG.COVER REAR
7 8005424 HEAT EXCHANG.COVER FRONT
8 8006666 HEAT EXANGER BODY
9 8100252 SUPPORT
10 4931762 TUBE STACK
11 8006075 RETAINER
12 4918846 O-RING
13 14056240 NUT M12X1,25
14 4858609 WASHER Ø16X22 MM SP=1,5 MM
15 4858606 GASKET Ø10X14X1 MM
16 4858607 WASHER Ø12X17 MM SP=1,5 MM
17 16992440 THREADED PLUG M16X1,5
18 11903140 PLUG M10X1,25
19 11194074 WASHER Ø8,4 MM
20 17090274 WASHER Ø10X20 MM
21 17038221 HEXAGON NUT M10
22 15970521 HEXAGON BOLT M10X20 MM
23 4927193 GASKET
24 14163670 DOWEL PIN Ø4 MM
25 14163870 PIN
26 16043221 HEXAGON BOLT M8X16 MM
27 13516921 STUD M8X12X22 MM
28 13517621 STUD M8X12X50
