8061SM16.11

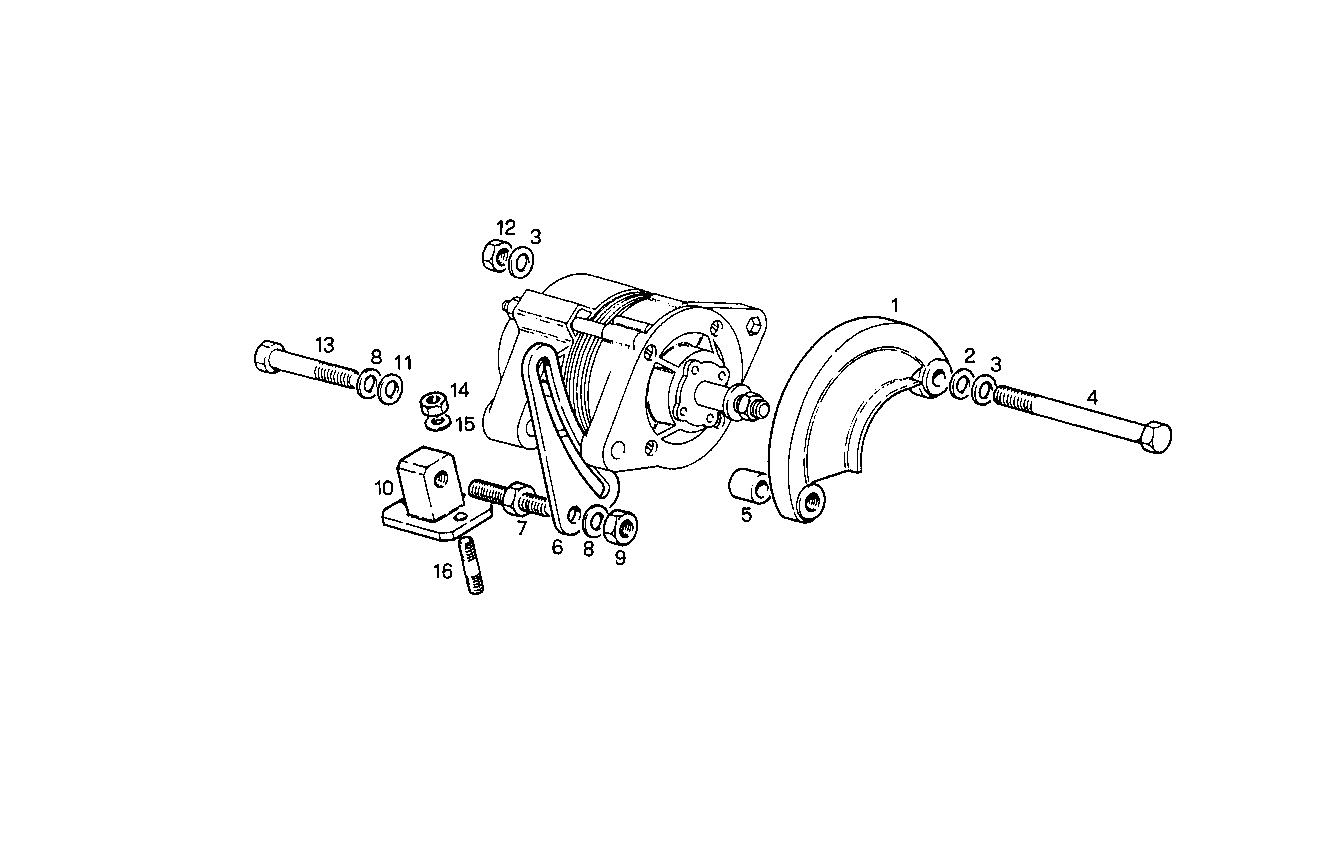

4010.019 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 8006315 PROTECTION
2 12646921 WASHER Ø12X28 MM
3 17091074 WASHER Ø12X24X2,8 MM
4 15542224 SCREW M12X160 MM
5 4619064 SPACING BAR
6 8007136 BELT TENSIONER
7 8103749 SCREW
8 17090174 SPRING WASHER Ø10X20 MM
9 17038221 HEXAGON NUT M10
10 8006031 SUPPORT
11 4513436 SUPPORT RING Ø10X21X2 MM
12 17038631 HEXAGON NUT M12X1,25
13 15004624 HEXAGON BOLT M10X50 MM
14 17037931 HEXAGON NUT M8X1,25
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16729224 STUD M8X16 MM
