8061SM16.11

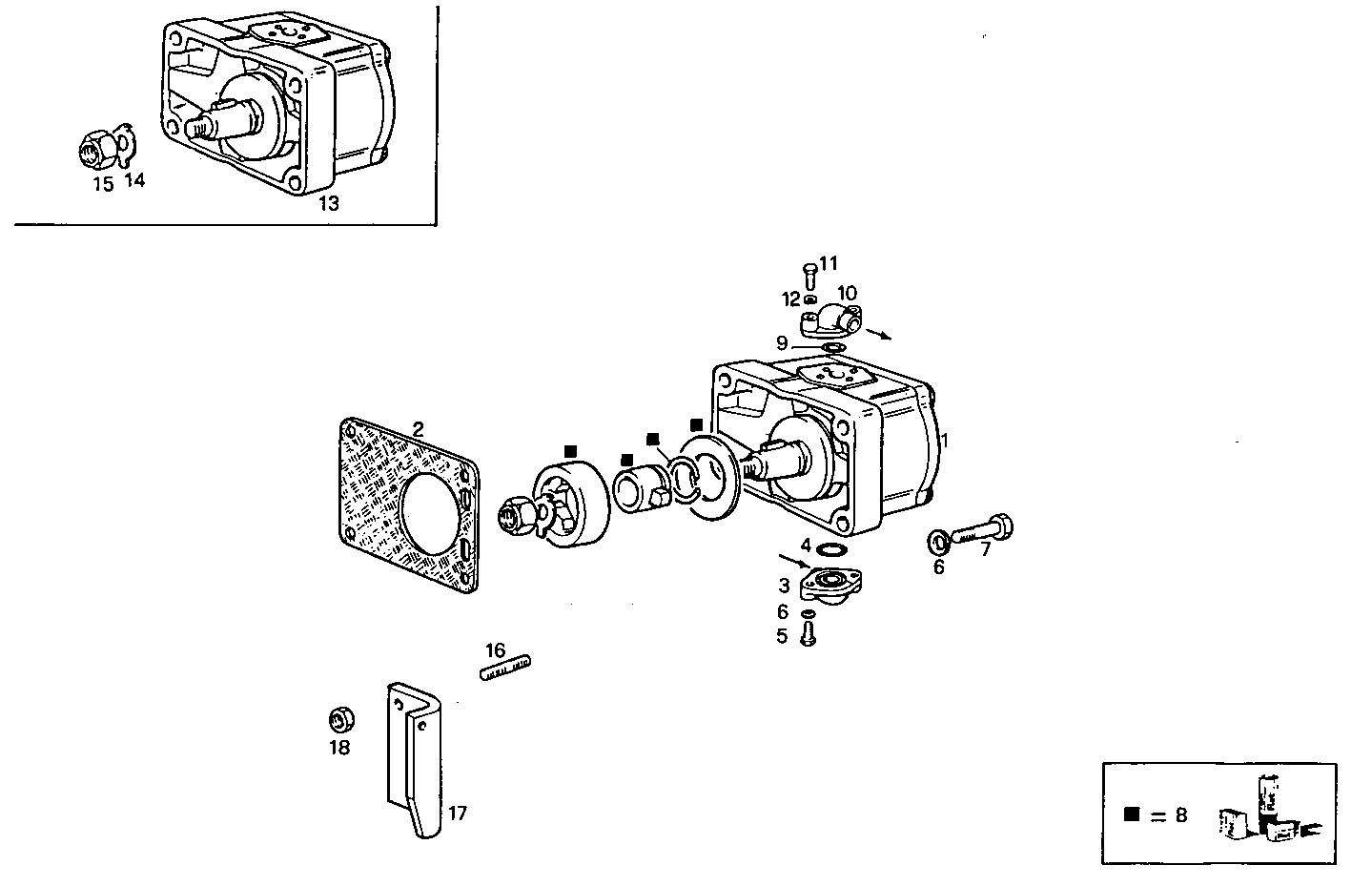

A09040009 FRONT HYDRAULIC PUMP

Iveco/FPT FRONT HYDRAULIC PUMP

Item Part number Description
1 5169039 HYDRAULIC PUMP ASSY PLESSEY C31
2 4850986 FLAT ENGINE GASKET
3 4607953 PIPE SOCKET
4 17281780 O-RING Ø15,54 MM SP=2,62 MM
5 14305521 SCREW M6X30
6 17088474 WASHER Ø6X12 MM
7 16603924 HEXAGON BOLT M6X30 MM
8 8090343 KIT-HYDRAULIC PUMP
9 17282581 O-RING Ø28,24 MM SP=2,62 MM
10 4690715 PIPE SOCKET
11 17090274 WASHER Ø10X20 MM
12 14306621 SCREW M8X35
13 5179728 HYDRAULIC PUMP ASSY BOSCH
14 8273919 NUT BOSCH
15 8273920 WASHER BOSCH
16 13541721 STUD
17 8113716 RETAINER
18 17037931 HEXAGON NUT M8X1,25
