8061SM16.11

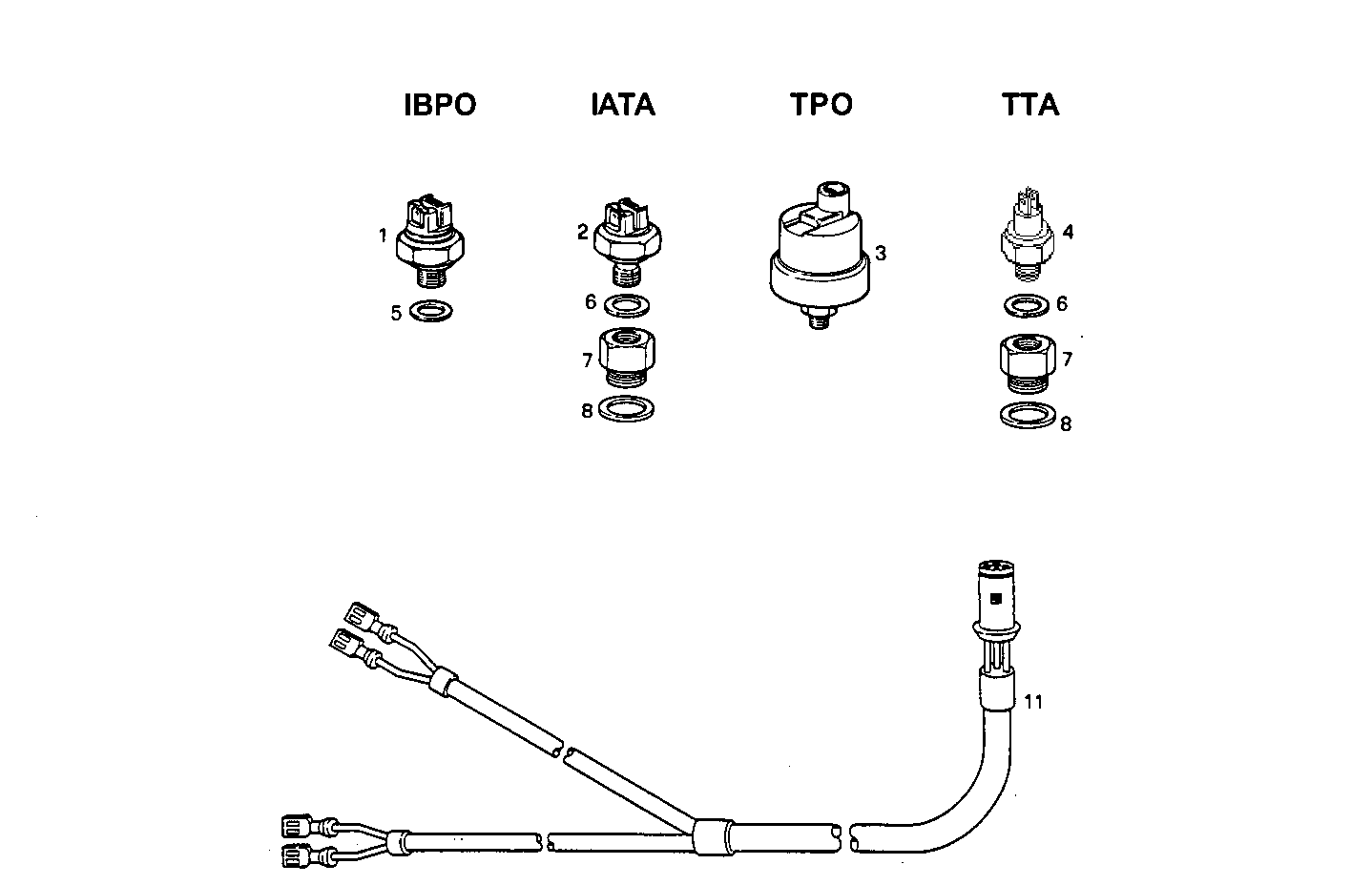

A38560010 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VDO

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 8019334 TRANSMITTER IATA
3 8100417 TRANSMITTER TPO
4 8100418 TRANSMITTER TTA
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 4928330 PIPE SOCKET M16X1,5/M14X1,5
8 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 8108457 ENGINE HARNESS
