8061SM16.11

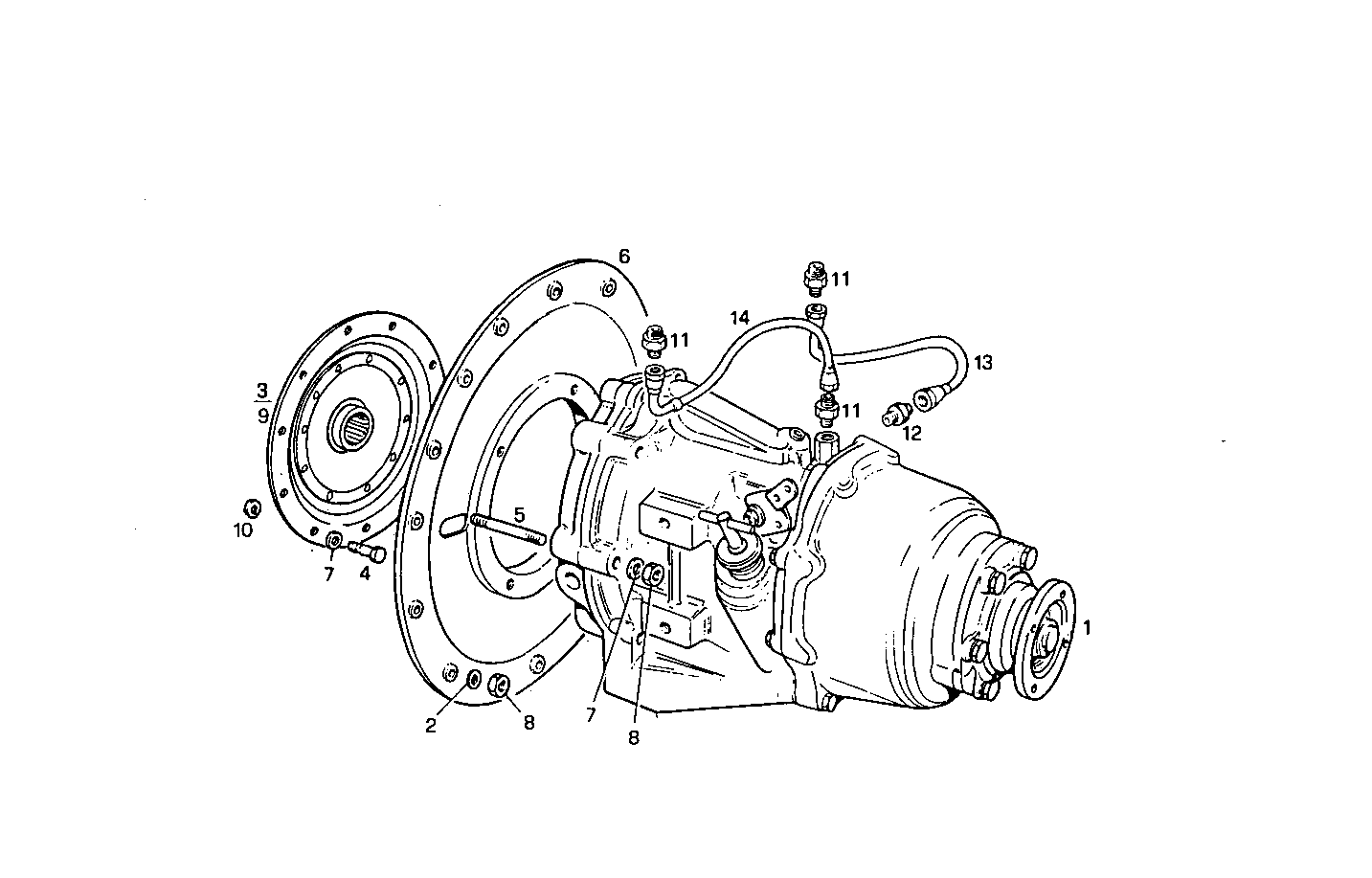

A51020048 MARINE GEAR BORG WARNER 72 CR - ratio 2.91:1

Iveco/FPT MARINE GEAR BORG WARNER 72 CR

Item Part number Description
1 4919796 MARINE GEAR 2,91:1
2 11198379 SPRING WASHER Ø10X20 MM SP=2,6
3 8022809 FLEXPLATE
4 15004021 HEXAGON BOLT M10X1,25X25 MM
5 13547521 STUD
6 4934782 COUPLING BELL
7 10571879 WASHER
8 12164711 HEXAGON NUT M10X1,25
9 8113696 FLEXIBLE COUPLING
10 8113726 WASHER
11 4935465 PIPE SOCKET
12 8101161 PIPE SOCKET
13 4935780 OIL HOSE
14 4935779 HOSE
