8061SM20.12

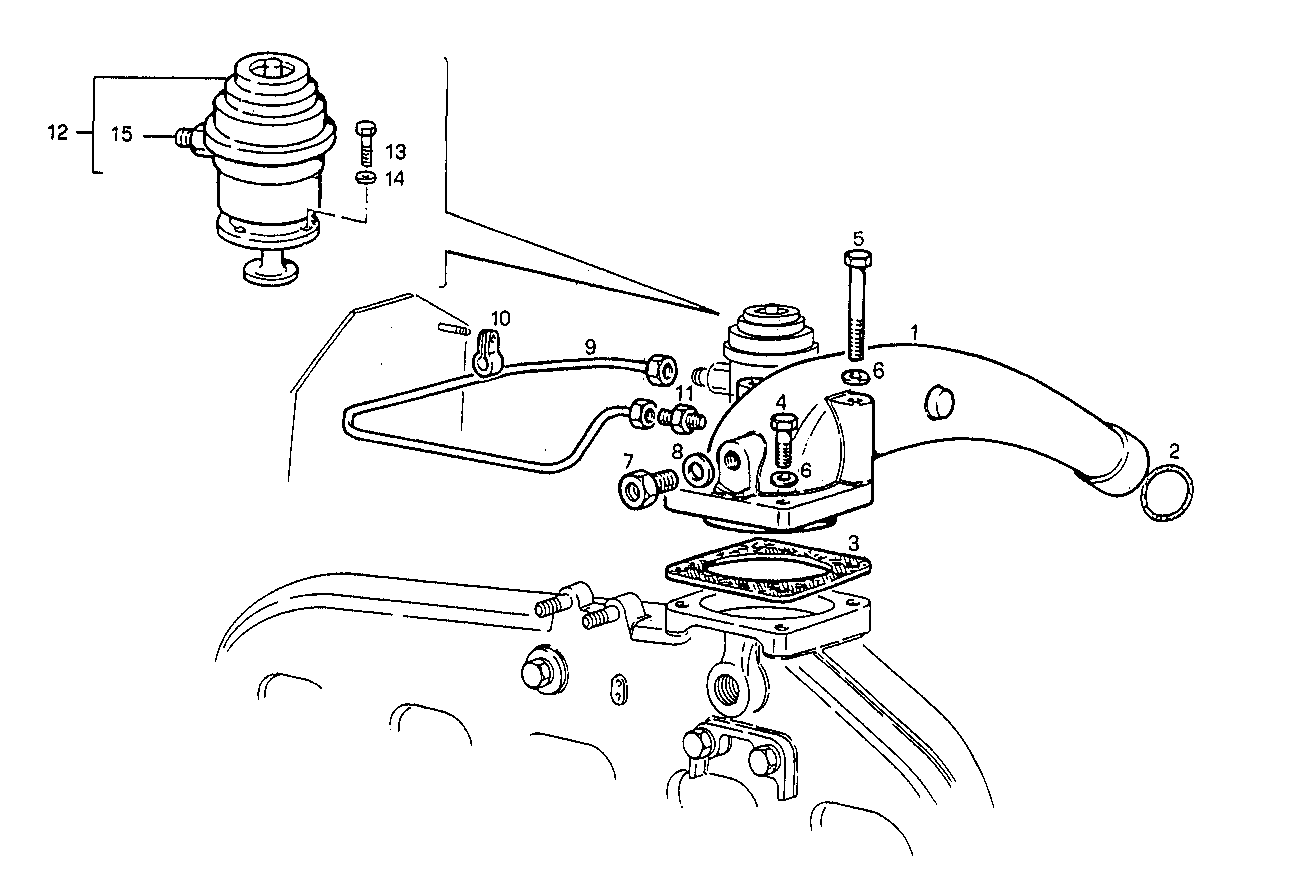

2420.074/02 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 8018898 | INTAKE ELBOW |
2 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
3 | 4848525 | FLAT ENGINE GASKET |
4 | 16605924 | SCREW M8X40 MM |
5 | 16606724 | HEXAGON BOLT M8X90 MM |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 4935314 | PIPE SOCKET |
8 | 98474311 | SEAL GASKET Ø18X26 MM |
9 | 8018900 | AIR PIPE/DUCT |
10 | 8006650 | CLIP |
11 | 11211311 | PIPE SOCKET M10X1 |
12 | 8007504 | VALVE WASTE-GATE - ASSY |
13 | 16689134 | SOCKET-HEAD SCREW M6X16 MM |
14 | 17088474 | WASHER Ø6X12 MM |
15 | 8012465 | PIPE SOCKET |
