8061SM20.12

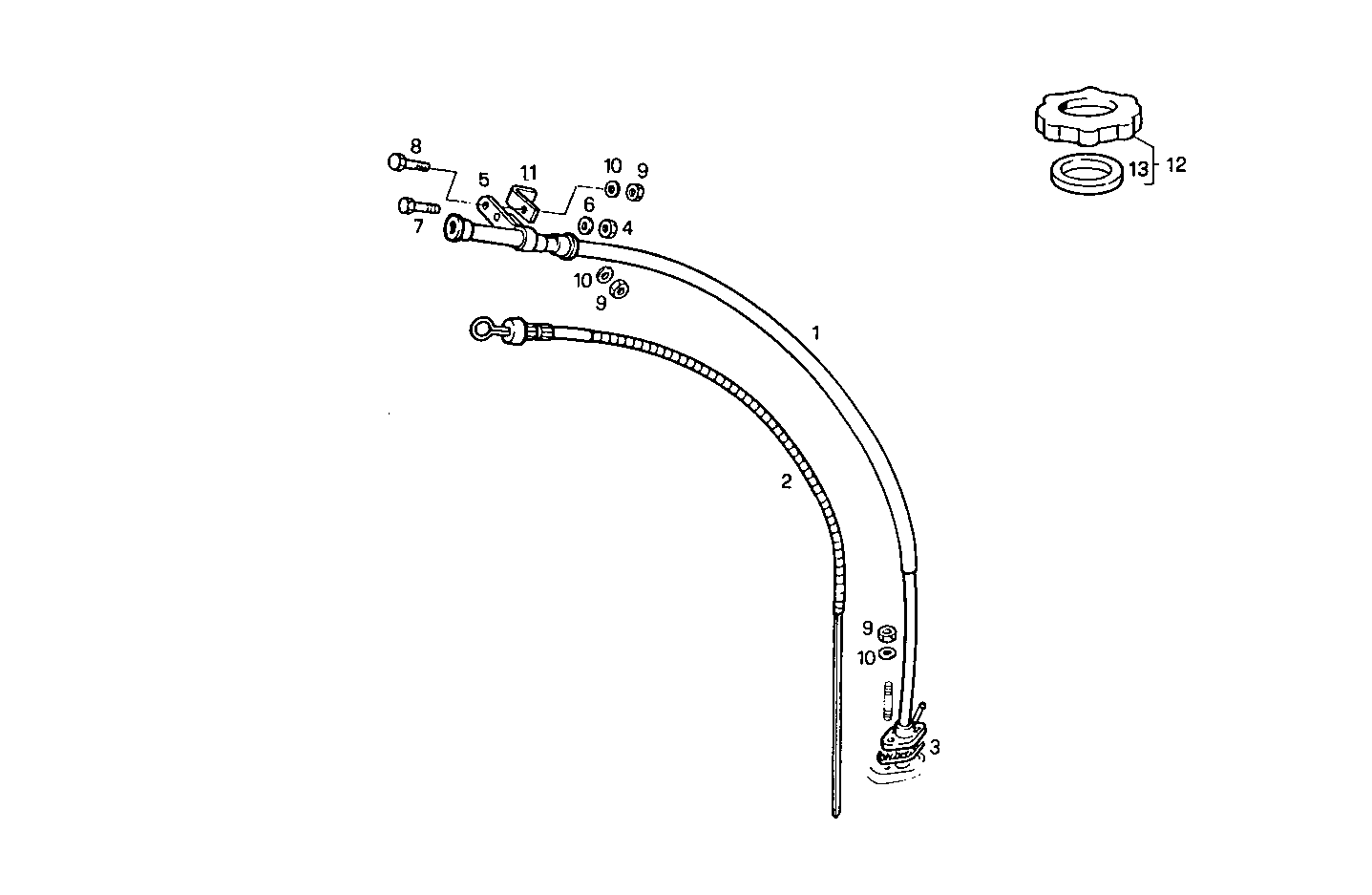

2710.001 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 8007280 ROD GUIDE
2 8006372 OIL DIPSTICK
3 98418621 GASKET
4 15896211 HEXAGON NUT M6
5 8006649 CLIP
6 11194379 SPRING WASHER Ø6X12 MM
7 10902121 HEXAGON BOLT M6X14 MM
8 16043221 HEXAGON BOLT M8X16 MM
9 17037931 HEXAGON NUT M8X1,25
10 11194074 WASHER Ø8,4 MM
11 8101336 RETAINER
12 4232606 OIL FILLER PLUG ASSY
13 98418978 GASKET
