8061SM20.12

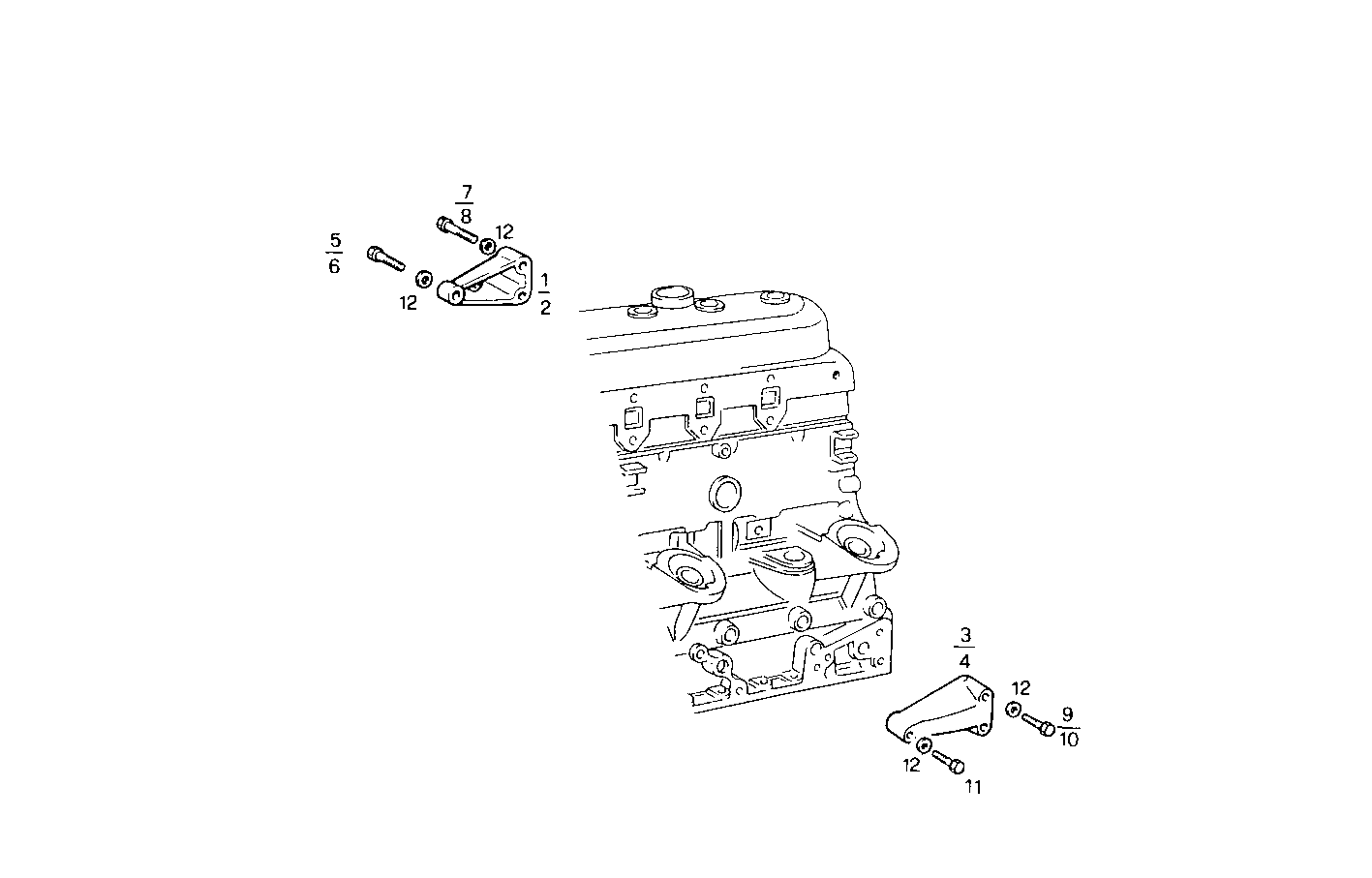

4500.080/02 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 4601988 | BRACKET RIGHT [up to 565948] |
| 2 | 4853971 | BRACKET RIGHT |
| 3 | 4776413 | BRACKET LEFT [up to 565948] |
| 4 | 4852643 | BRACKET LEFT [from 565949] |
| 5 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 6 | 16611224 | HEXAGON BOLT M12X120 MM |
| 7 | 15541221 | HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
| 8 | 16610724 | SCREW M12X1,75X70 MM |
| 9 | 15541521 | SCREW M12X1.25X90 [up to 565948] |
| 10 | 16610924 | HEXAGON BOLT M12X90 MM |
| 11 | 15540821 | HEXAGON BOLT M12X1,25X50 MM |
| 12 | 17095304 | WASHER Ø12X24 MM |
