8061SM20.30

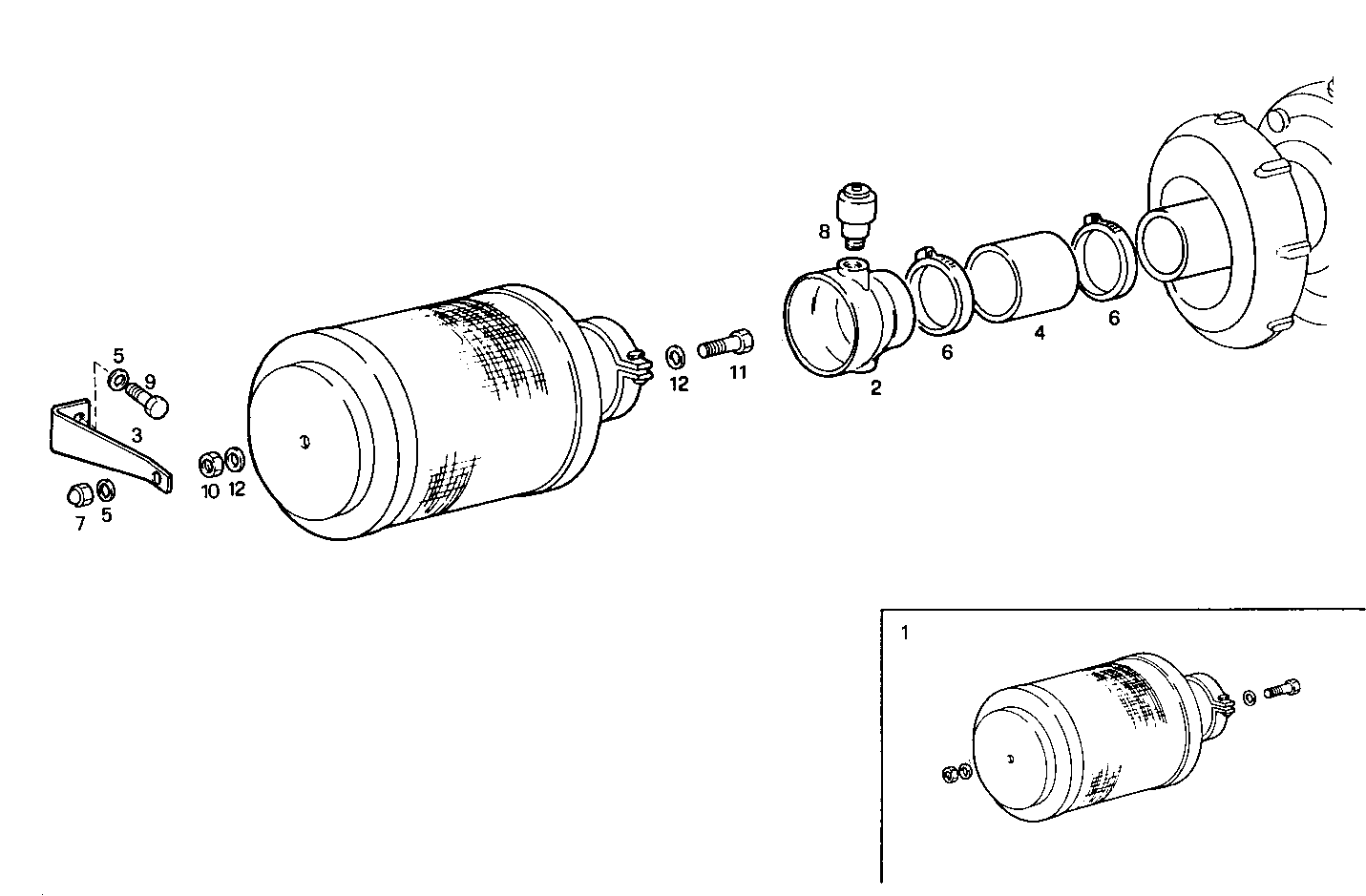

2210.016 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8113000 | AIR CLEANER ASSY |
| 2 | 4936788 | AIR PIPE/DUCT |
| 3 | 8007297 | RETAINER |
| 4 | 61319109 | RUBBER SLEEVE |
| 5 | 11193879 | SPRING WASHER Ø8X16 MM |
| 6 | 17765093 | CLIP Ø60/80 MM |
| 7 | 16109611 | HEXAGON NUT M8X1,25 |
| 8 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
| 9 | 16043424 | HEXAGON BOLT M8X20 MM |
| 10 | 16102311 | HEXAGON NUT M8 |
| 11 | 16043821 | HEXAGON BOLT M8X30 MM |
| 12 | 12644321 | WASHER Ø10X35 MM |
