8061SM20.32

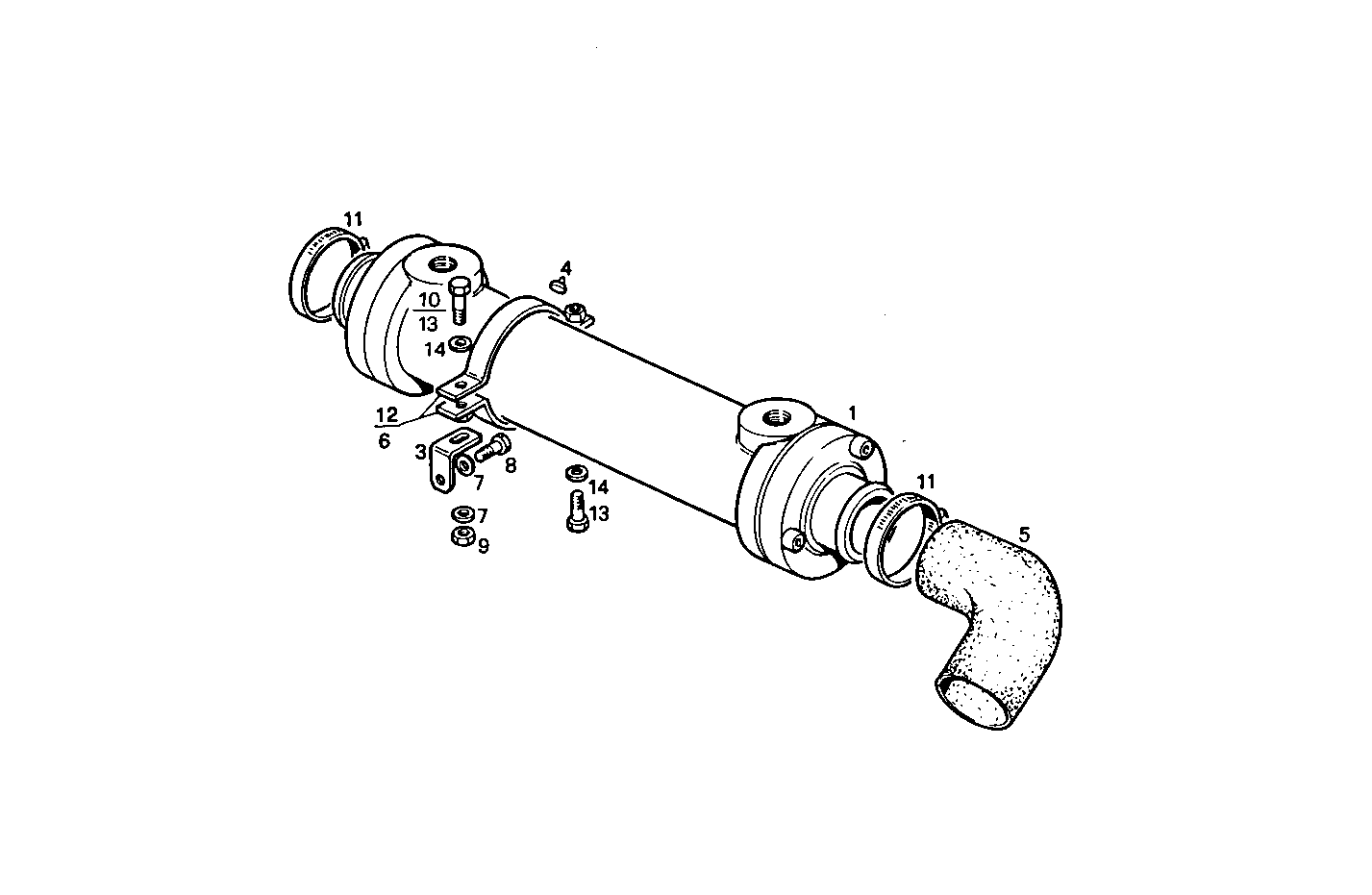

3350.008/01 REVERSER WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
3 | 8103023 | RETAINER |
4 | 4568427 | RUBBER PAD |
5 | 8102099 | RUBBER SLEEVE |
6 | 8013591 | CLIP ASSY [up to 06-93] |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
9 | 17038221 | HEXAGON NUT M10 |
10 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
11 | 17764893 | CLIP Ø40/60 MM |
12 | 5116798 | CLIP ASSY [from 06-93] |
13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
