8061SM20.42

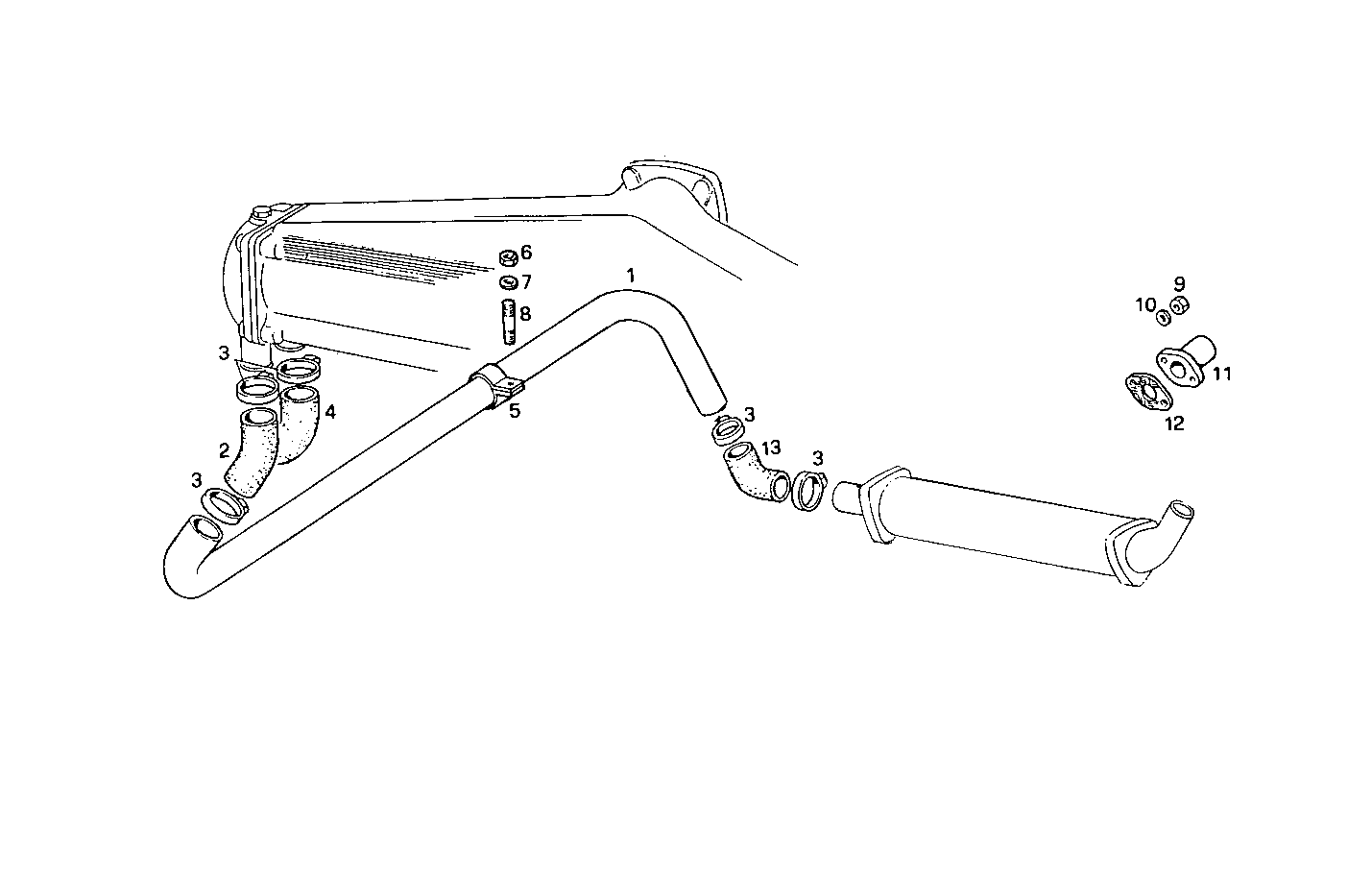

3390.046 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8011027 | WATER PIPE |
| 2 | 4604779 | WATER HOSE |
| 3 | 17764893 | CLIP Ø40/60 MM |
| 4 | 8102099 | RUBBER SLEEVE |
| 5 | 8103077 | CLIP |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 13449321 | STUD M10X1,25X15X20 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 8112744 | WATER PIPE |
| 12 | 8008755 | FLAT ENGINE GASKET |
| 13 | 17742687 | RUBBER SLEEVE |
