8061SM20.42

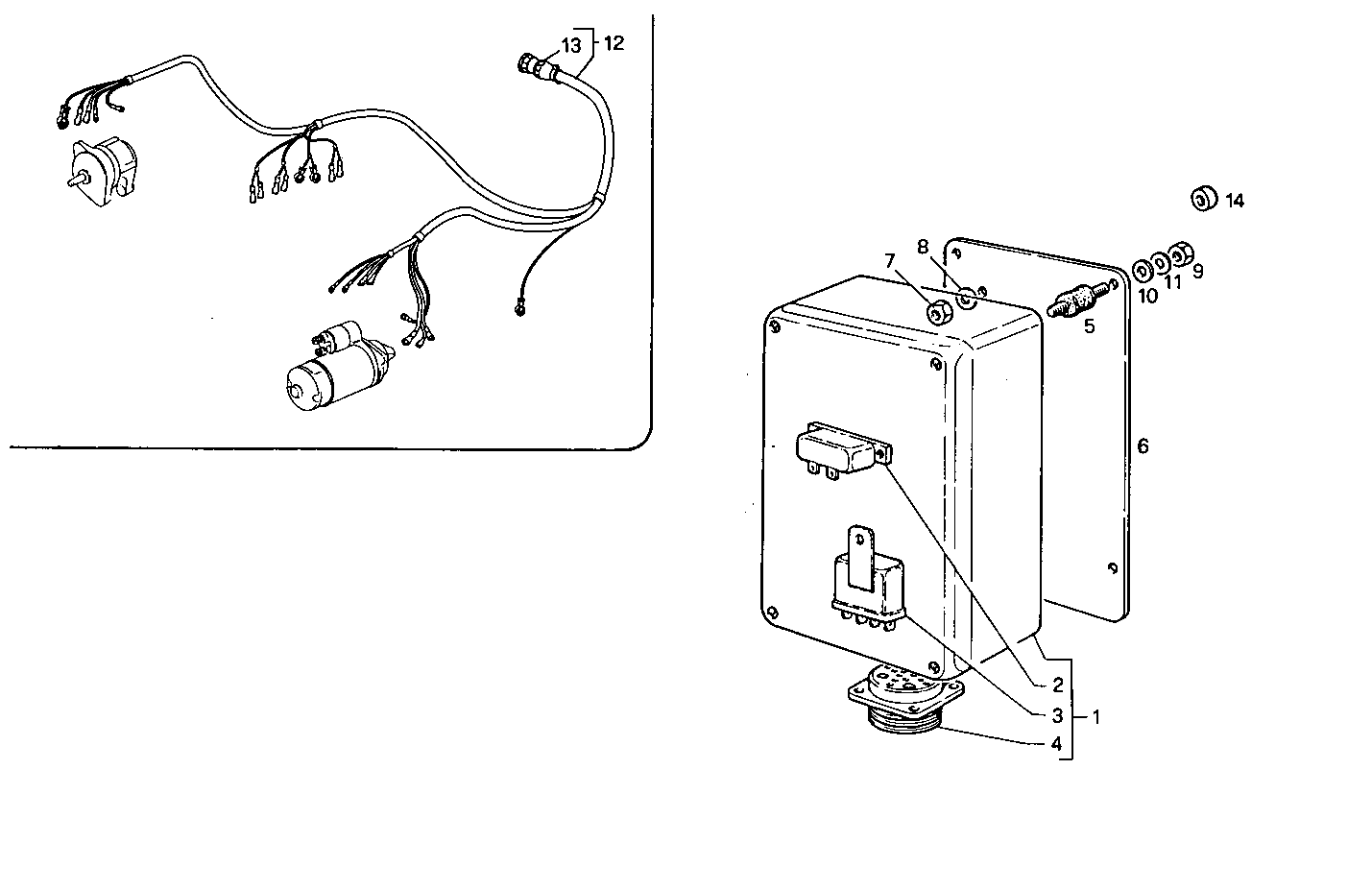

A38100055 ELECTRIC WIRING - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8020686 | ENGINE STOP ASSY |
| 2 | 8108574 | RELAY STARTER |
| 3 | 8094991 | RELAY 12 V |
| 4 | 8113170 | CONNECTION ASSY |
| 5 | 4910949 | RUBBER LUG |
| 6 | 8013440 | RETAINER |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 17094714 | WASHER Ø6,4X12 MM |
| 11 | 17710074 | WASHER Ø6X11 MM |
| 12 | 8017132 | ENGINE HARNESS ASSY [up to 03-95] |
| 13 | 8108365 | CONNECTION |
| 14 | 8105618 | SPACING BAR |
