8061SM20.42

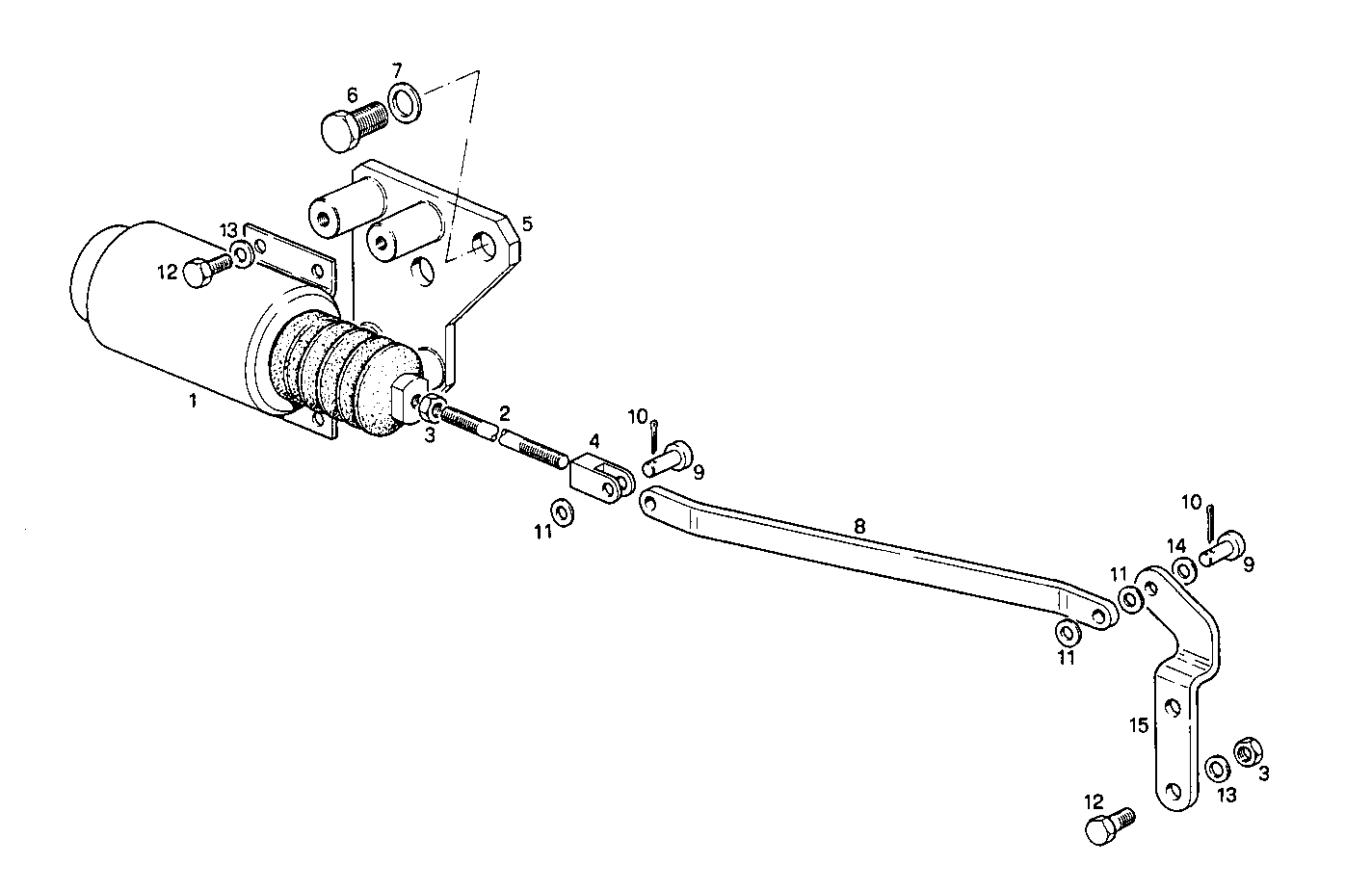

A38410023 STOP SOLENOID - ENERGIZE TO STOP - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8017205 | SOLENOID 12V |
| 2 | 16745224 | STUD M6X12X30 |
| 3 | 17037821 | HEXAGON NUT M6X1 |
| 4 | 8109159 | CLEVIS M6X40 |
| 5 | 8013105 | PLATE |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8013106 | CLEVIS [from 05-96] |
| 9 | 17718411 | PIN Ø5 MM |
| 10 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 11 | 17094504 | WASHER Ø5,3X10 MM |
| 12 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 13 | 17088474 | WASHER Ø6X12 MM |
| 14 | 17793604 | WASHER Ø5 MM |
| 15 | 8013104 | LEVER |
