8061SRi10.05

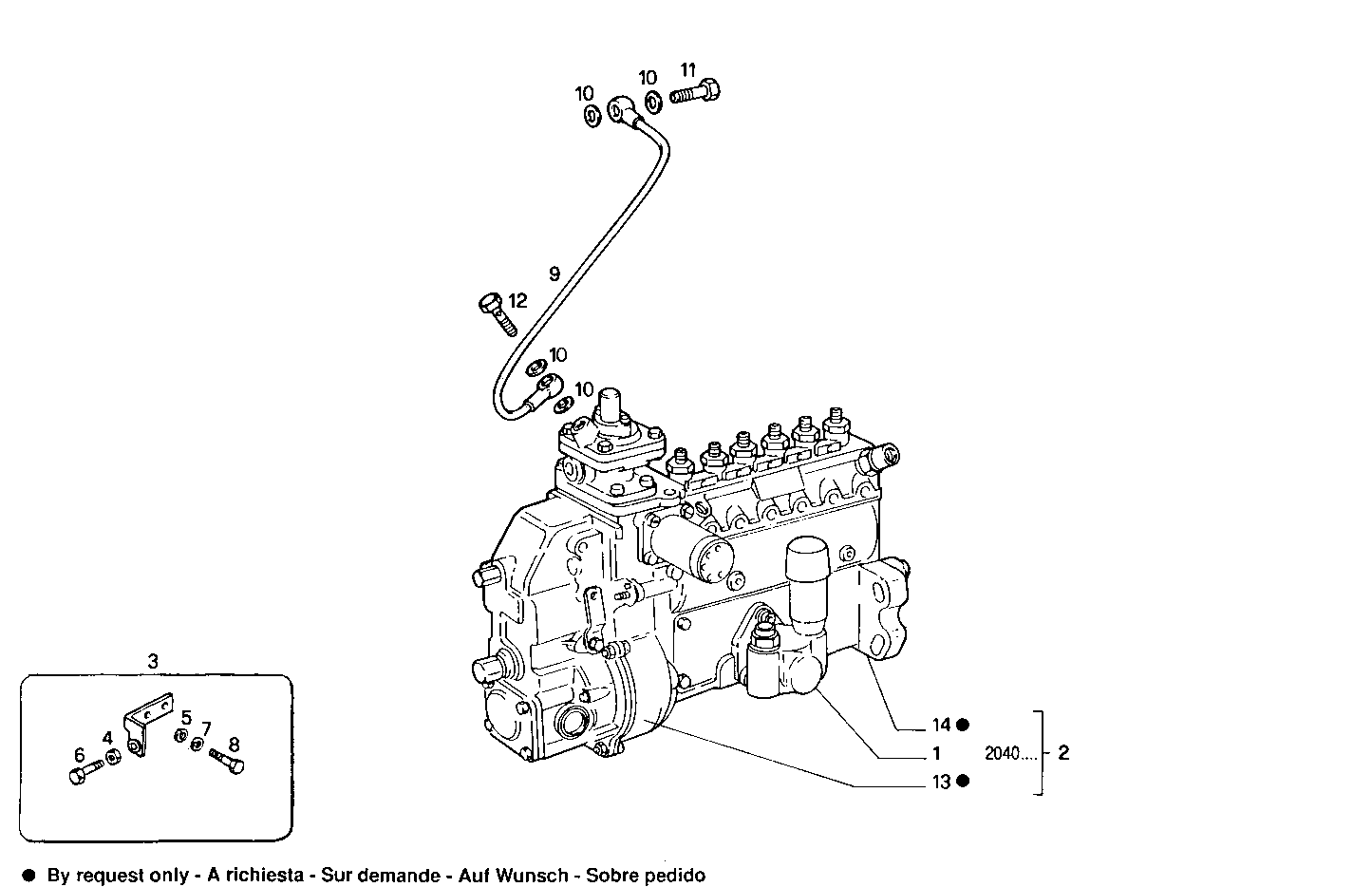

1400.088 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 79097363 | FUEL PUMP |
| 2 | 8018411 | INLINE INJECT.PUMP ASSY BOSCH |
| 3 | 4756612 | CONTROL ASSEMBLY ASSY |
| 4 | 4756616 | NUT |
| 5 | 4799685 | WASHER |
| 6 | 4756615 | SCREW |
| 7 | 10571571 | SPRING WASHER Ø6 MM |
| 8 | 10902211 | HEXAGON BOLT M6X16 MM |
| 9 | 8013326 | FUEL LINE |
| 10 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 11 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 12 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
