8061SRi10.05

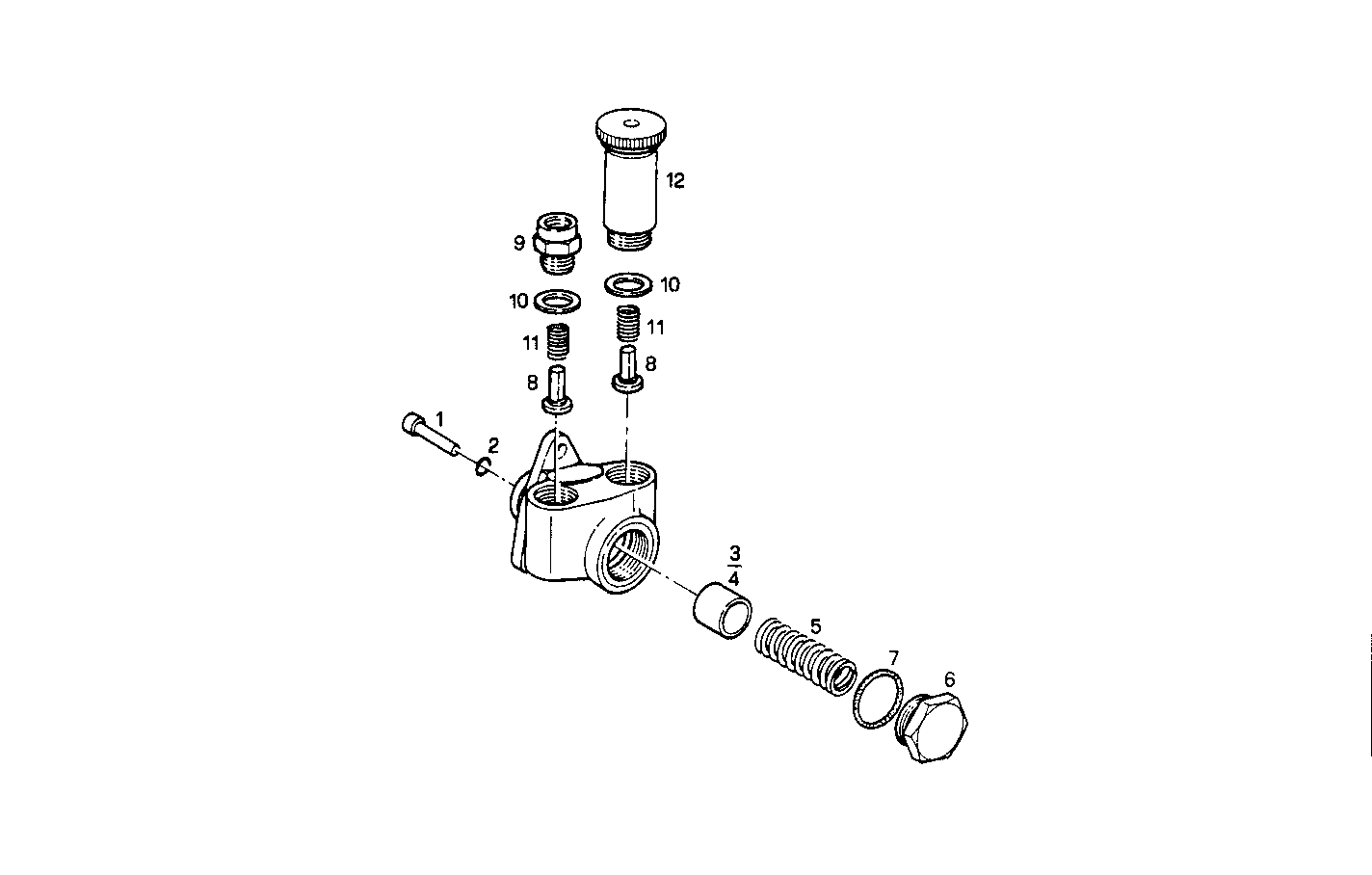

2040.022 FUEL PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 79097365 | TAPPET |
| 2 | 79070369 | O-RING |
| 3 | 1308545 | CONTROL PISTON 21,980 - 21,985 |
| 4 | 79097366 | CONTROL PISTON 21,980 - 21,985 |
| 5 | 1290601 | SPRING |
| 6 | 9930056 | PLUG |
| 7 | 1290550 | GASKET |
| 8 | 9930058 | VALVE |
| 9 | 1290570 | SCREW CONNECTOR SP=0,18 MM |
| 10 | 1287773 | GASKET |
| 11 | 1290593 | SPRING |
| 12 | 42522716 | HAND PUMP |
