8061SRi10.05

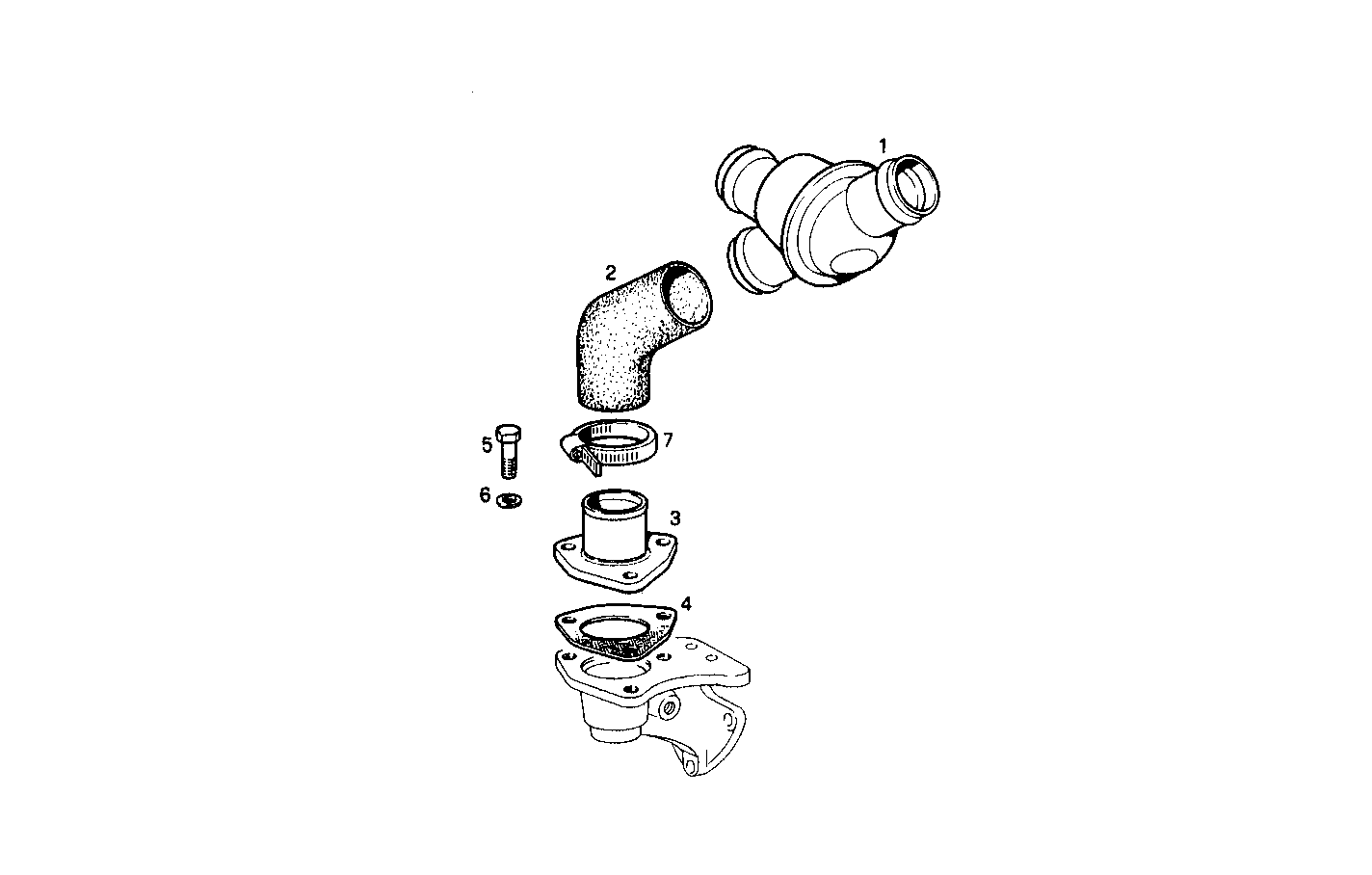

3220.031 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 8819078 | THERMOSTAT |
| 2 | 4787630 | RUBBER SLEEVE |
| 3 | 4661543 | COVER |
| 4 | 98417863 | GASKET |
| 5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17764891 | CLIP Ø40/60 MM |
