8061SRi10.05

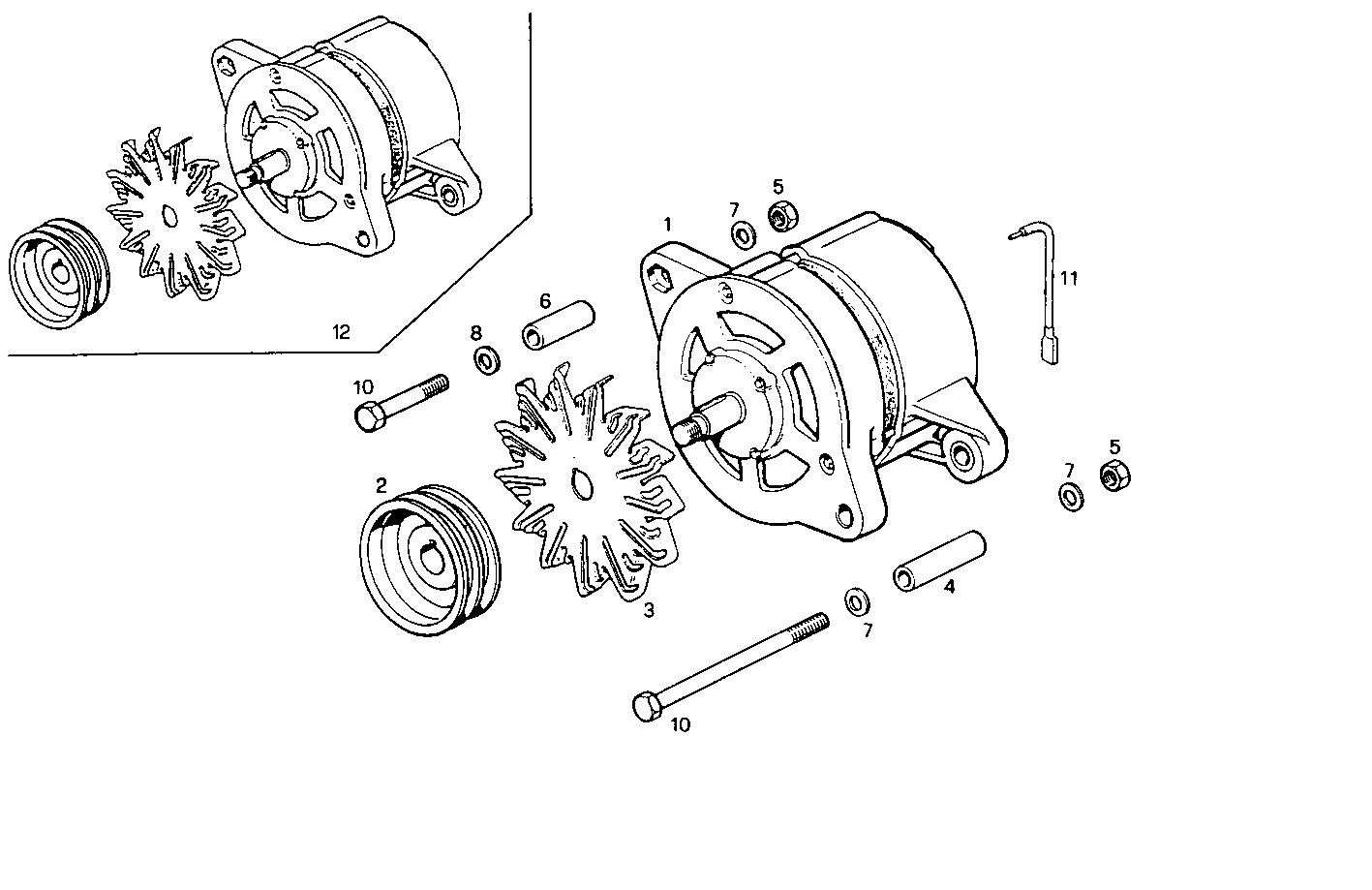

A14010005 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 98424453 | ALTERNATOR ASSY BOSCH |
| 2 | 5011828 | PULLEY |
| 3 | 4717026 | GENERATOR FAN MARELLI |
| 4 | 8015577 | SPACING BAR SP=8,00 MM |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 8015453 | SPACING BAR |
| 7 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
| 10 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 11 | 8019531 | WIRE/CABLE W |
| 12 | 8016151 | ALTERNATOR ASSY |
