8061SRi10.05

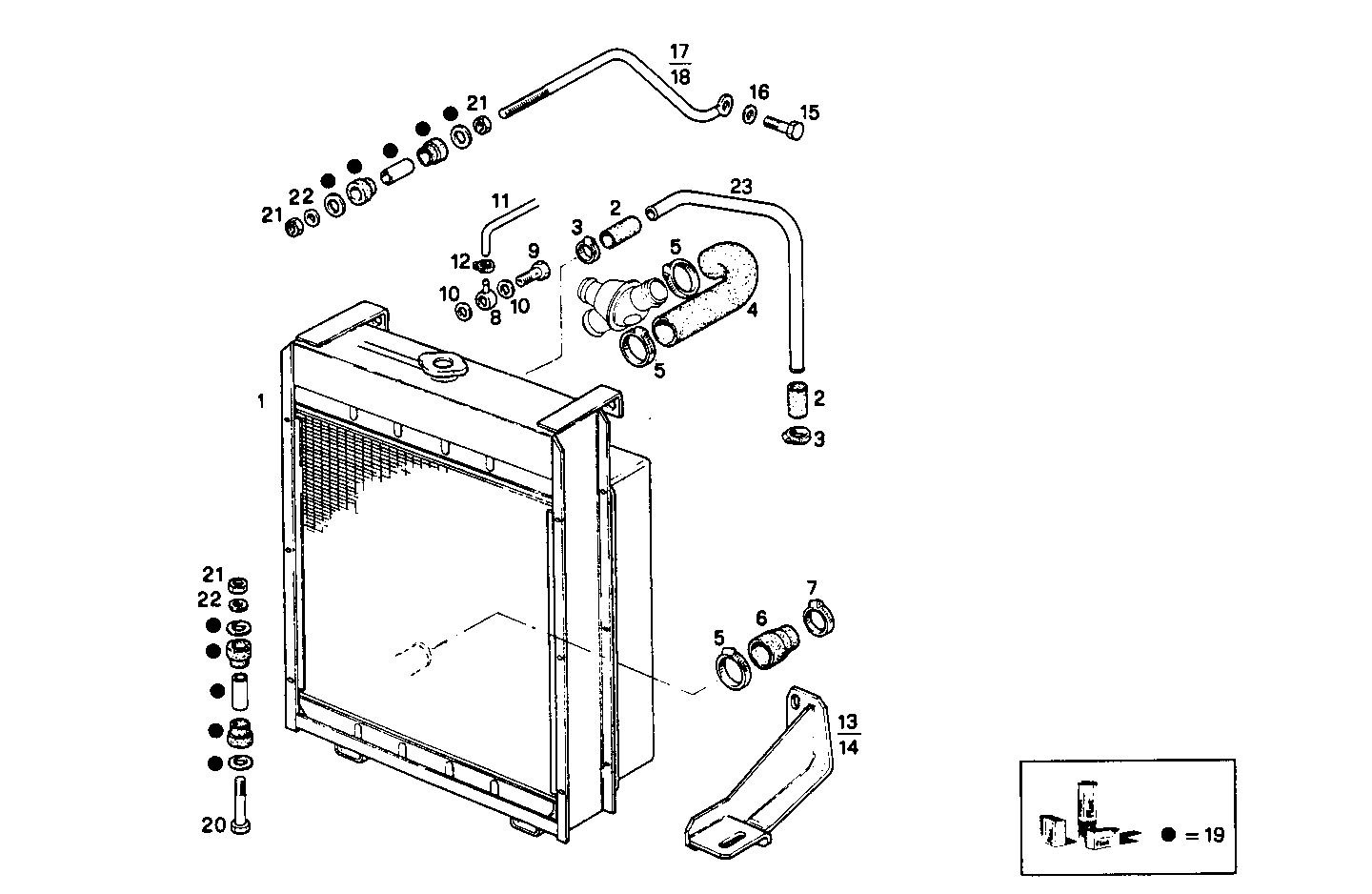

A22010031 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8013489 | WATER RADIATOR ASSY |
| 2 | 17739187 | RUBBER SLEEVE |
| 3 | 17764592 | CLIP Ø20/32 MM |
| 4 | 8013497 | RUBBER SLEEVE |
| 5 | 17764891 | CLIP Ø40/60 MM |
| 6 | 8813238 | WATER HOSE |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 98416591 | SWIVEL COUPLING |
| 9 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 12 | 18087991 | CLIP Ø8/16 MM |
| 13 | 8010789 | SUPPORT RIGHT |
| 14 | 8010787 | SUPPORT LEFT |
| 15 | 98491344 | SCREW LEFT |
| 16 | 98415215 | WASHER Ø10X20X2,3 MM |
| 17 | 8013501 | TIE ROD RIGHT |
| 18 | 8012288 | TIE ROD LEFT |
| 19 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
| 20 | 16610624 | SCREW M12X1,75 |
| 21 | 17038421 | HEXAGON NUT M12 (8) |
| 22 | 17091074 | WASHER Ø12X24X2,8 MM |
| 23 | 8013499 | WATER PIPE |
