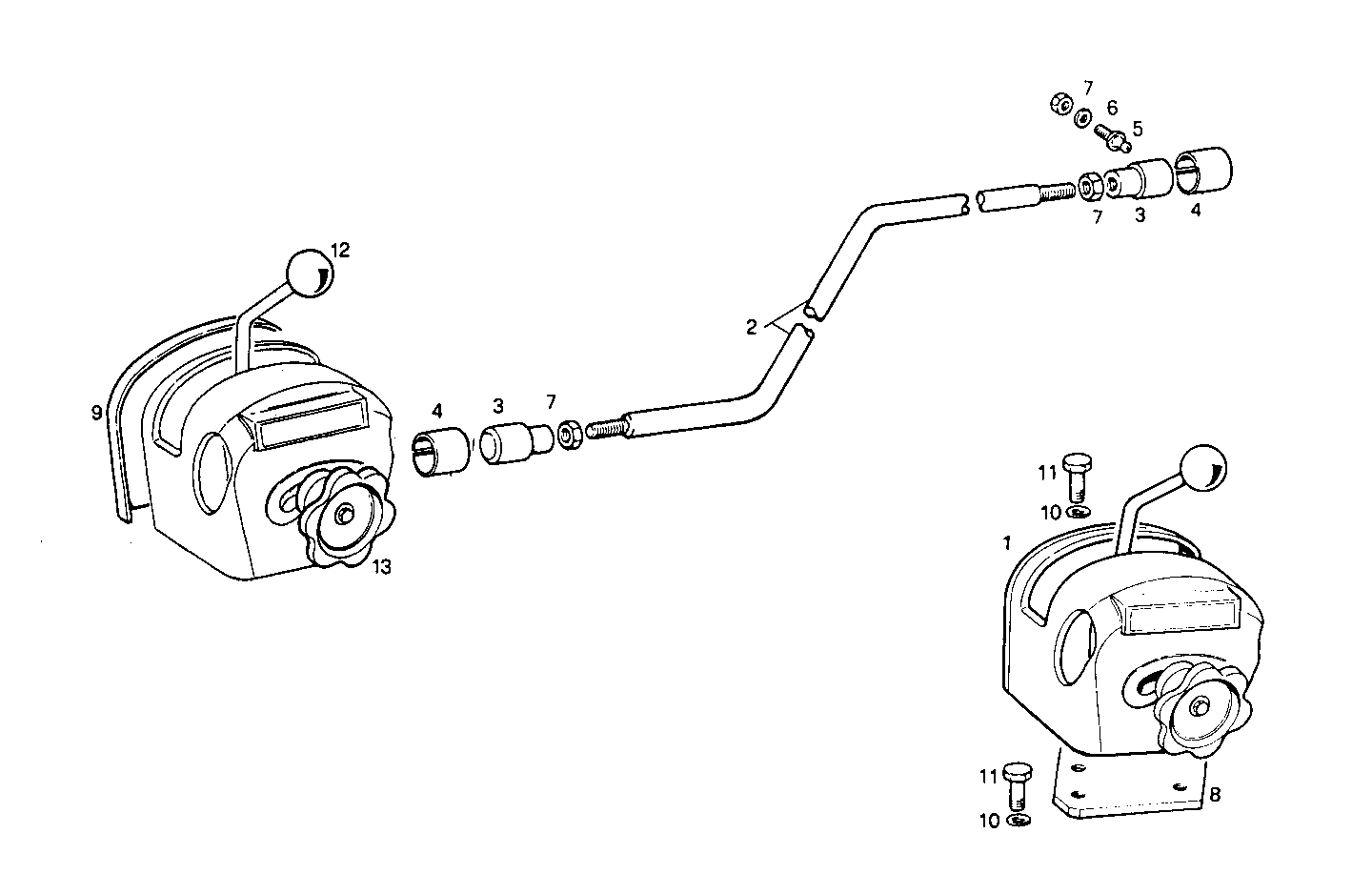

A24020020 HAND ACCELERATOR - assembled

Iveco/FPT HAND ACCELERATOR

Item Part number Description
1 4927113 HAND ACCELERATOR ASSY
2 8016486 TIE ROD
3 17721111 BALL HEAD
4 17722174 CLIP
5 15152011 PIN
6 17088474 WASHER Ø6X12 MM
7 17037821 HEXAGON NUT M6X1
8 4929494 PLATE
9 4927115 COVER
10 17090174 SPRING WASHER Ø10X20 MM
11 15004021 HEXAGON BOLT M10X1,25X25 MM
12 4927041 HANDLE BALL
13 4927042 HANDWHEEL
