8061SRi10.05

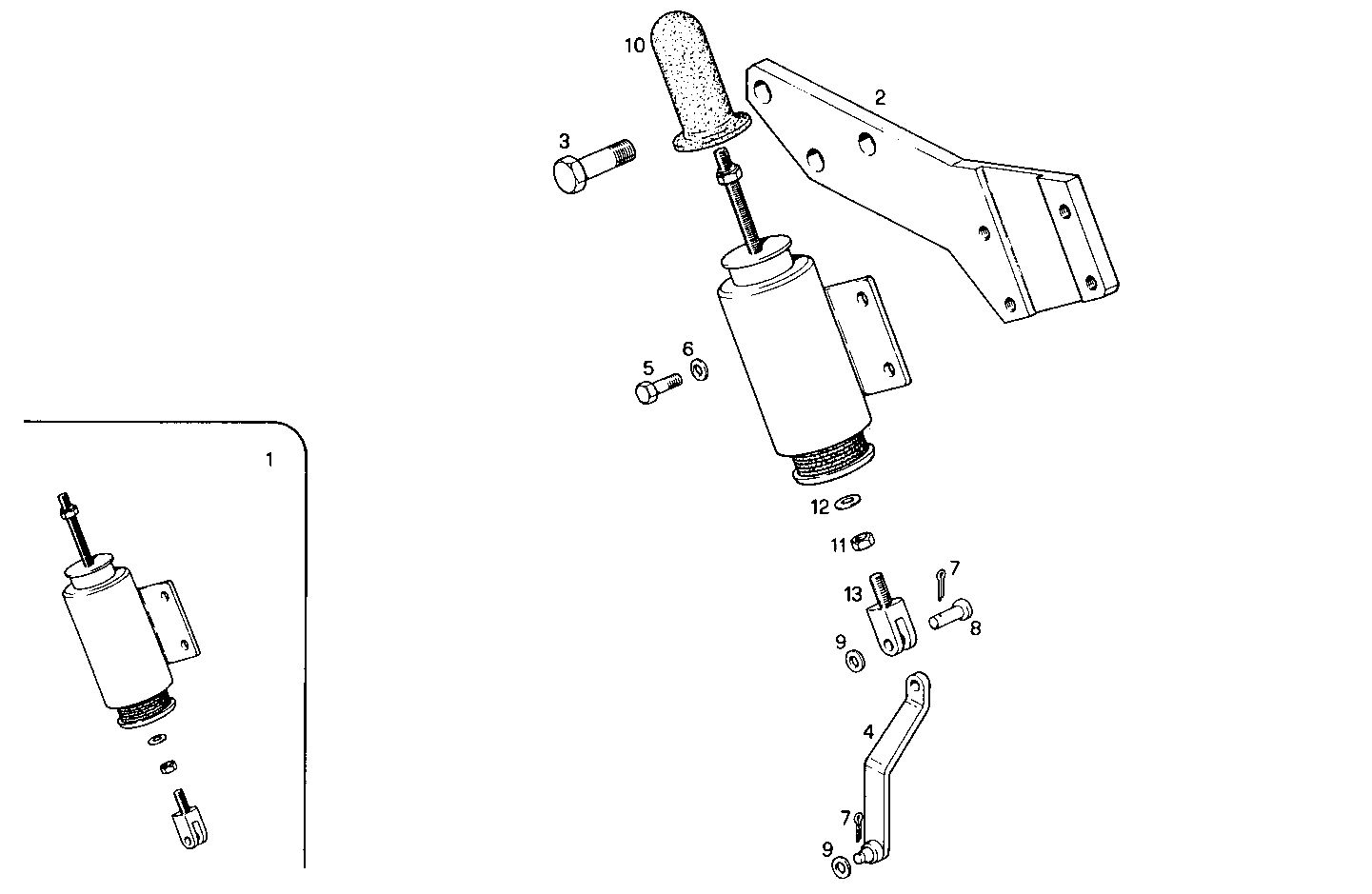

A38430007 STOP SOLENOID - ENERGIZE TO RUN - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8110900 | SOLENOID ASSY 12V |
| 2 | 8012956 | SUPPORT |
| 3 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 8012882 | CLEVIS |
| 5 | 16603524 | SCREW M6X12 MM (8.8) |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16851301 | SPLIT PIN |
| 8 | 17718411 | PIN Ø5 MM |
| 9 | 17094504 | WASHER Ø5,3X10 MM |
| 10 | 8111523 | PROTECTIVE HOOD |
| 11 | 15896211 | HEXAGON NUT M6 |
| 12 | 11193871 | WASHER Ø8X16X1,4 MM |
| 13 | 8109159 | CLEVIS M6X40 |
