8061SRi10.05

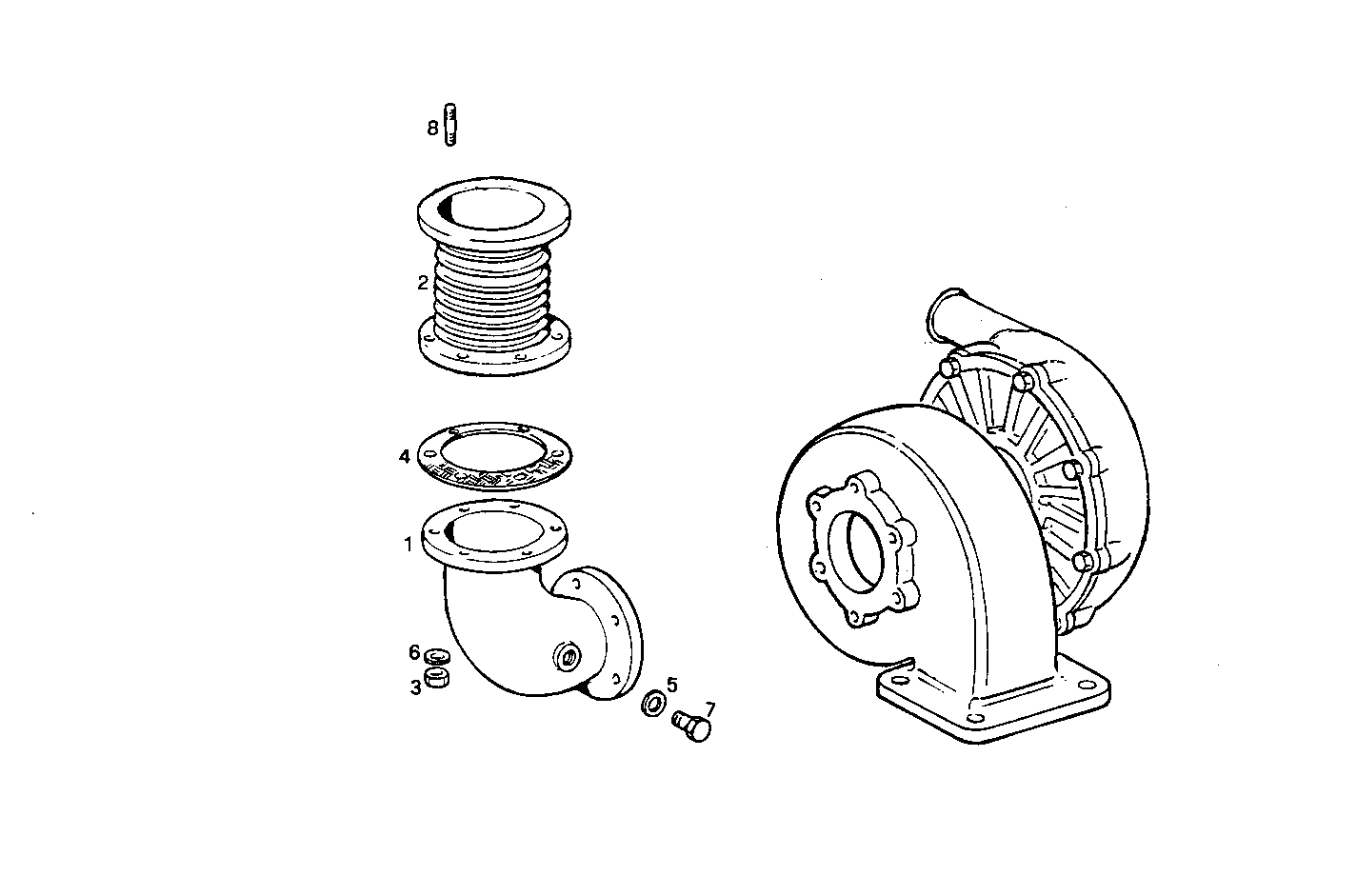

A40010009 TURNING EXHAUST ELBOW WITH BELLOWS

Iveco/FPT TURNING EXHAUST ELBOW WITH BELLOWS

Item Part number Description
1 8107751 EXHAUST ELBOW
2 4935378 EXHAUST BELLOWS
3 17037931 HEXAGON NUT M8X1,25
4 8009606 GASKET
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16992211 THREADED PLUG M12X1,5
8 13516921 STUD M8X12X22 MM
