8061SRi25.05

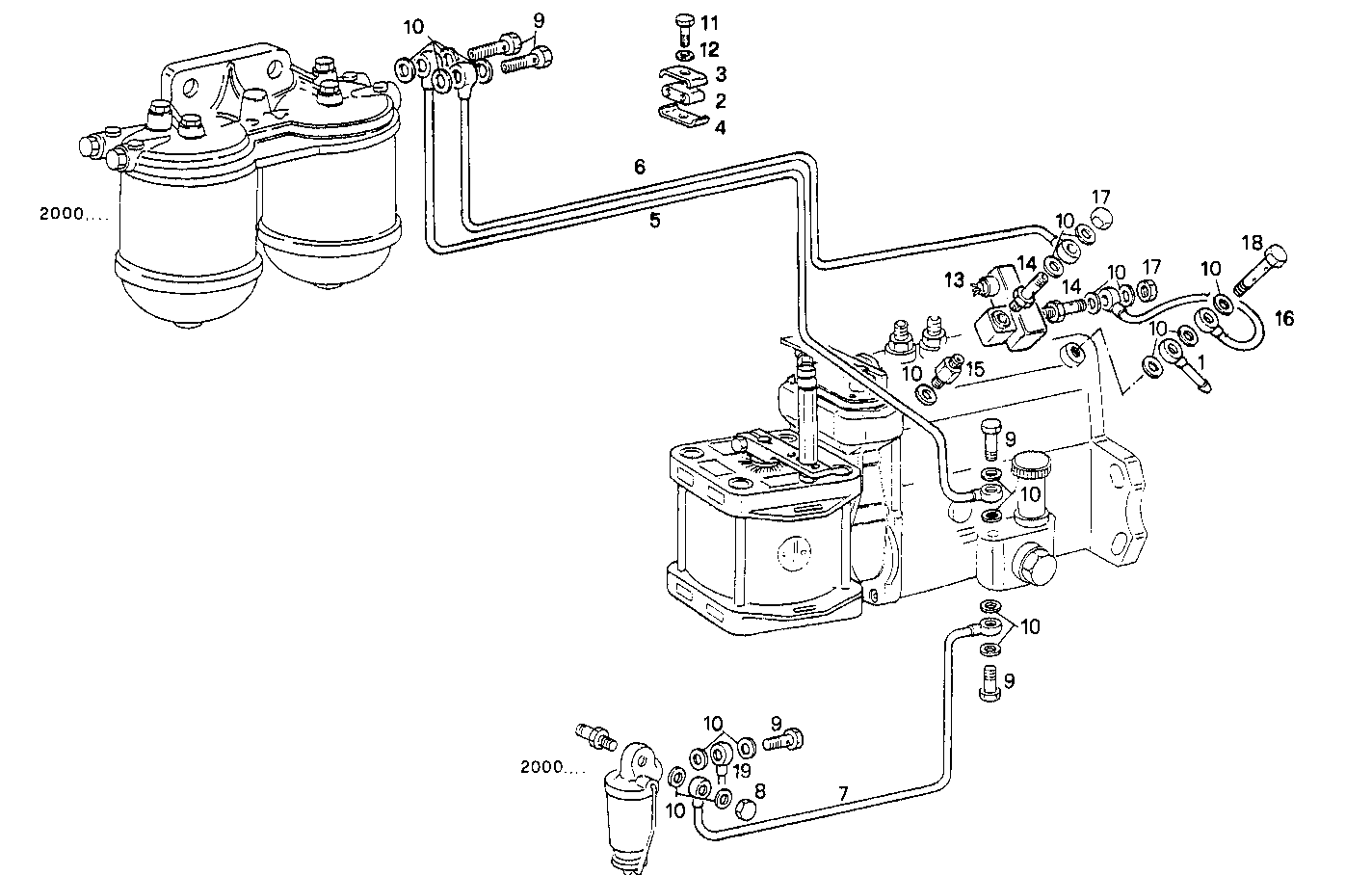

2030.036 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98413896 PIPE SOCKET Ø8 MM
2 4659217 DOWEL
3 4659218 CLIP
4 4659219 PLATE
5 98420170 FUEL LINE
6 8011089 INJECTION LINE
7 98413562 FUEL LINE
8 10182817 LOCK PLUG
9 4864083 SCREW CONNECTOR M14X1,5X30 MM
10 98474308 SEAL GASKET Ø14X22 MM
11 16602324 HEXAGON BOLT M5X25 MM
12 17494634 SPRING WASHER Ø5,1X9,2 MM
13 8108944 ELECTROVALVE
14 4929627 PIPE SOCKET
15 4929626 PIPE SOCKET
16 8011090 INJECTION LINE
17 61320123 SCREW CONNECTOR
18 4936577 SCREW CONNECTOR
19 98404882 PIPE SOCKET Ø8 MM
