8061SRi25.05

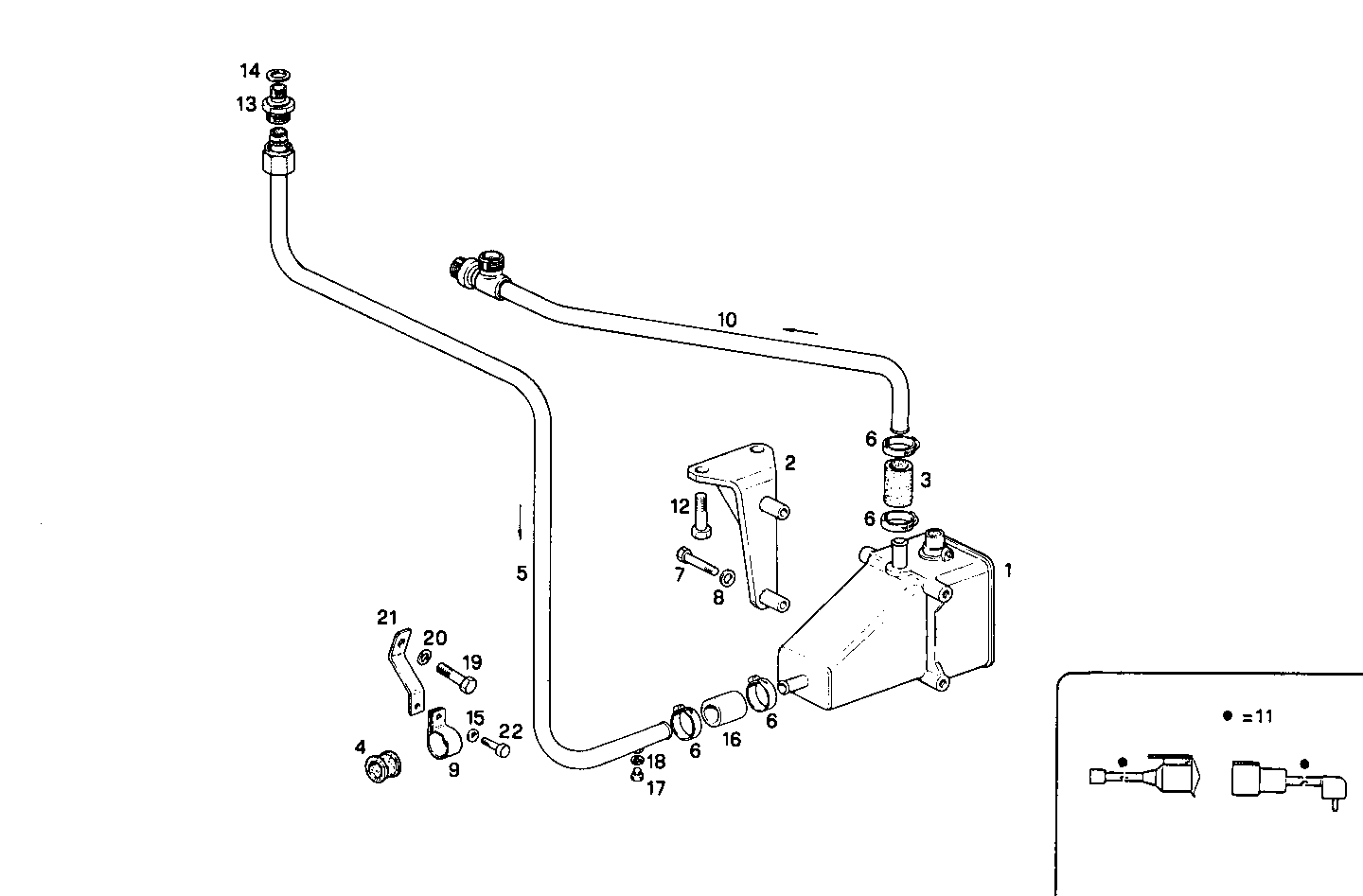

A20040036 WATER PREHEATER DEVICE - 220V

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 8008375 HEATER 700W
2 8012818 SUPPORT
3 8015312 RUBBER SLEEVE
4 4757122 RUBBER PAD
5 8014776 WATER PIPE
6 17764592 CLIP Ø20/32 MM
7 16604024 HEXAGON BOLT M6X35 MM
8 17088474 WASHER Ø6X12 MM
9 4763804 FASTENING BRACKET
10 8015320 WATER PIPE
11 8009376 WIRE/CABLE ASSY
12 11234721 HEXAGON BOLT M10X1,25X45 MM
13 4741602 THREADED UNION LEFT
14 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 8109346 RUBBER SLEEVE
17 10300911 PLUG M8
18 4858605 WASHER Ø8X12 MM
19 16609824 HEXAGON BOLT M12X1,75X25 MM
20 17091074 WASHER Ø12X24X2,8 MM
21 8014864 RETAINER
22 16605524 HEXAGON BOLT M8X20 MM
23 8013087 PIPE SOCKET M14X1,5/M22X1,5
24 4858608 SEAL GASKET dia.14x19,5x1,5
