8061SRi25.05A580

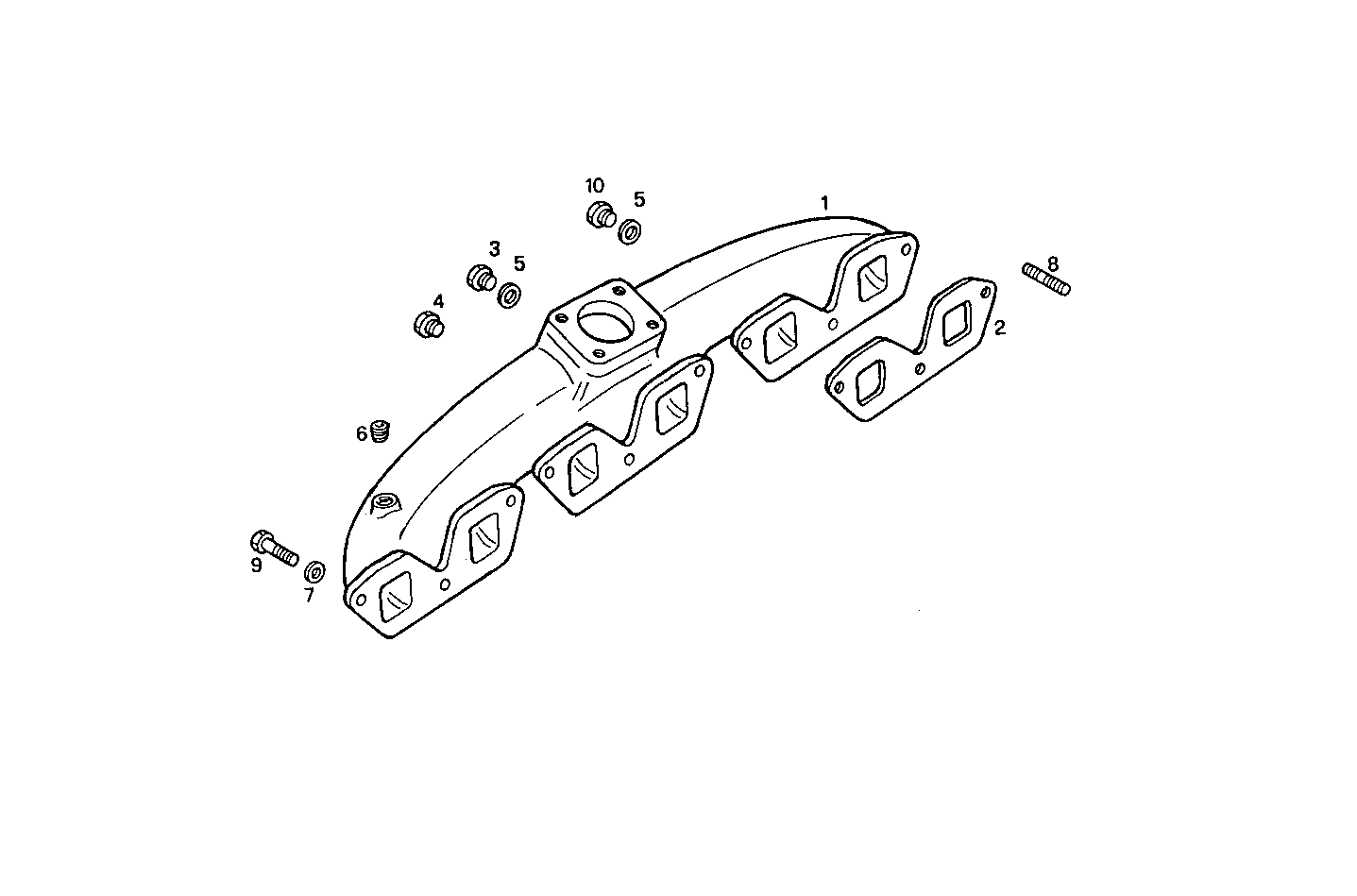

0710.005 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4776966 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 4753563 | PLUG M10X1,5 |
| 4 | 4577310 | THREADED PLUG |
| 5 | 4858606 | GASKET Ø10X14X1 MM |
| 6 | 16997711 | LOCK PLUG M22X1,5 |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 13543321 | STUD M8X16X20 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 10 | 16992111 | THREADED PLUG M10X1 |
