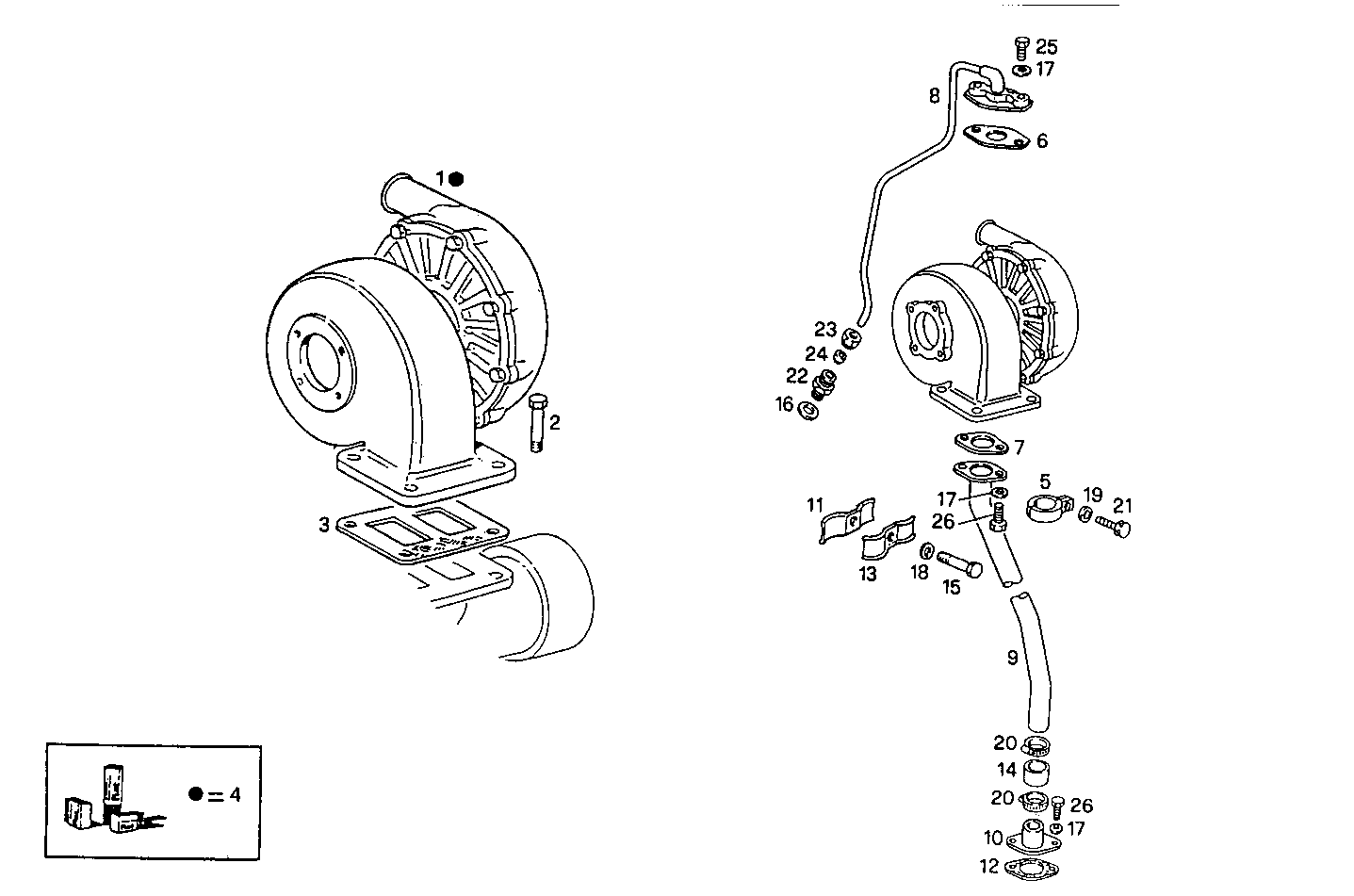

Item |
Part number |
Description |
1 |
500303301 |
TURBOCHARGER ASSY K.K.K. |
2 |
98480687 |
SCREW M10X1,25X33 MM |
3 |
98428396 |
FLAT ENGINE GASKET |
4 |
8092490 |
KIT-TURBOCHARGER K.K.K. |
5 |
4033229 |
CLIP |
6 |
98415922 |
FLAT ENGINE GASKET |
7 |
98415923 |
FLAT ENGINE GASKET |
8 |
8016632 |
OIL LINE |
9 |
4779773 |
OIL LINE |
10 |
4754153 |
FLANGED SOCKET |
11 |
4755435 |
RETAINER |
12 |
98401046 |
FLAT ENGINE GASKET |
13 |
4755436 |
RETAINER |
14 |
98420478 |
RUBBER SLEEVE |
15 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
18 |
17088474 |
WASHER Ø6X12 MM |
19 |
17090174 |
SPRING WASHER Ø10X20 MM |
20 |
17764592 |
CLIP Ø20/32 MM |
21 |
15970321 |
HEXAGON BOLT M10X16 MM |
22 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
23 |
16506911 |
NUT M18X1,5 |
24 |
16507611 |
WASHER Ø12 MM |
25 |
16605824 |
HEXAGON BOLT M8X35 MM |
26 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
