8061SRi25.06A550

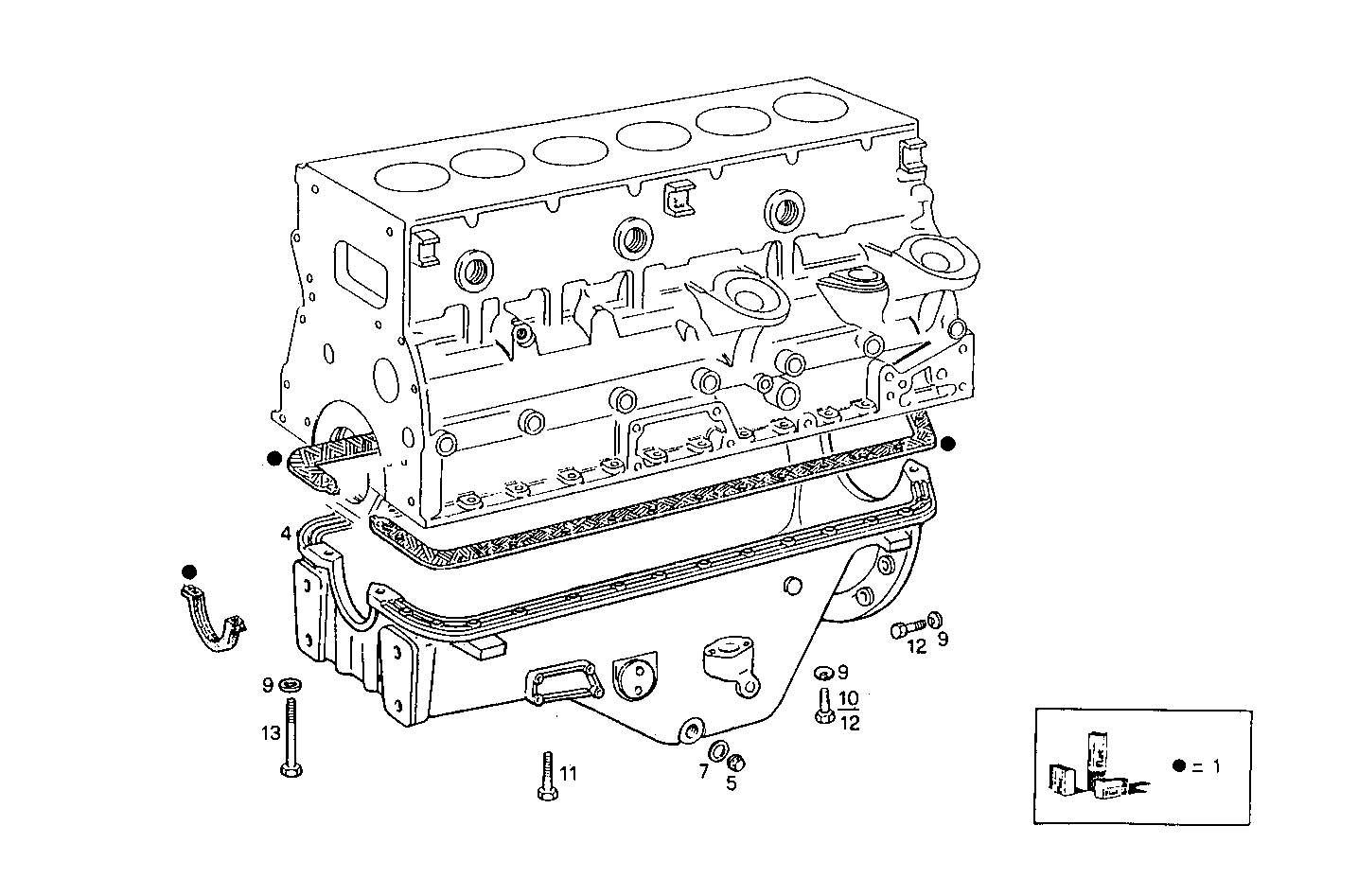

0420.107 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 8090696 KIT-OILSUMP GASKET
4 4753719 OIL SUMP ASSY
5 4847102 THREADED PLUG
7 17282180 O-RING Ø21,8 MM SP=2,6 MM
9 10516879 WASHER Ø10X18X2 MM
10 11307024 SCREW M10X1,25X40 MM
11 4686762 HEXAGON BOLT M10X1,25X30
12 15971824 SCREW M10X1,25X100
13 15972924 HEXAGON BOLT M10X1,25X160
