8061SRi26.06

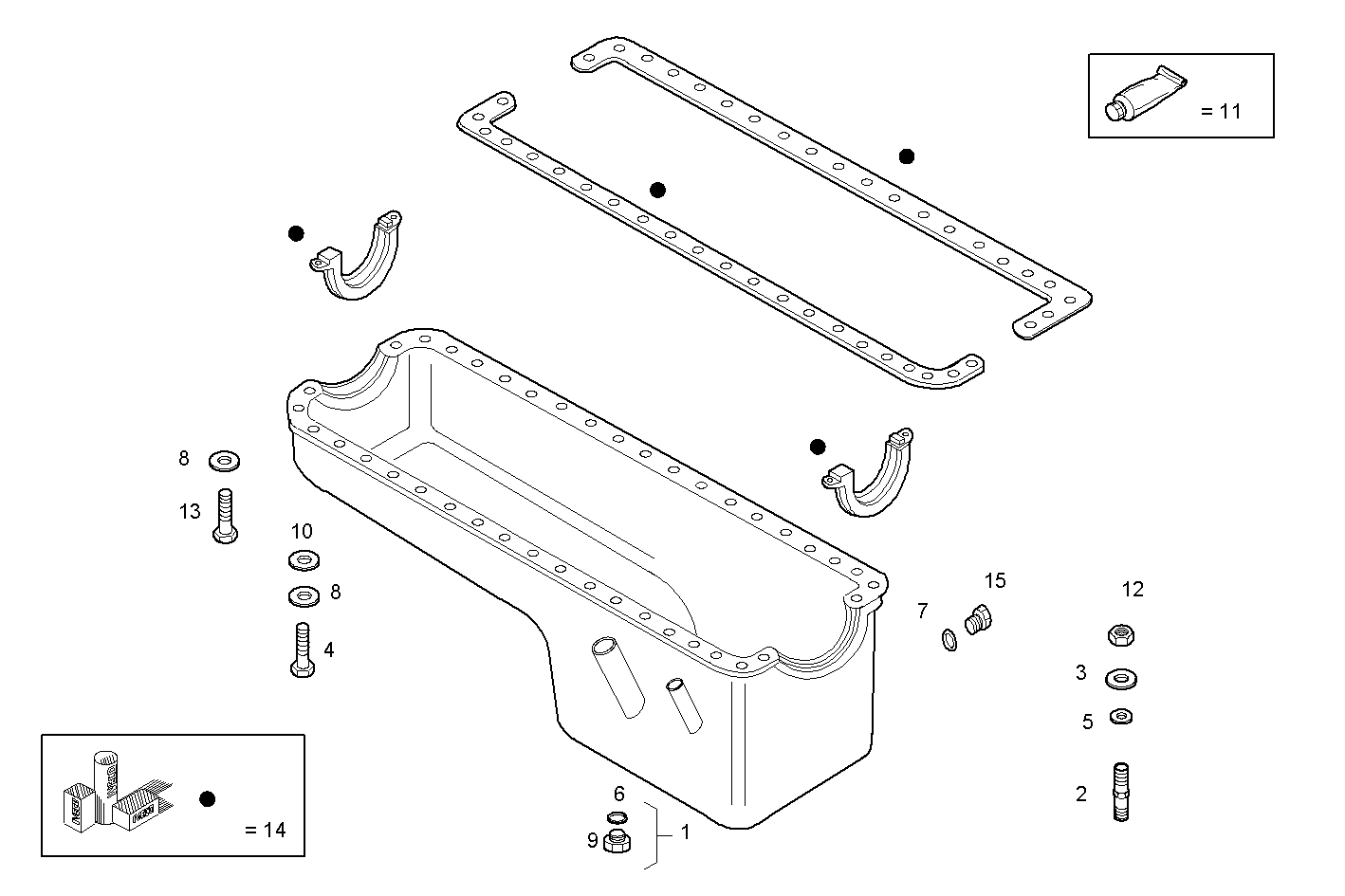

0420.214 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 4848303 OIL SUMP ASSY
2 98474195 STUD M10X1,25 - M8X37,5 MM
3 17094914 WASHER 8x16
4 10923024 HEXAGON BOLT M10X1,25X20 MM
5 17798274 SPRING WASHER Ø8,2X14,9 MM
6 17282180 O-RING Ø21,8 MM SP=2,6 MM
7 4858607 WASHER Ø12X17 MM SP=1,5 MM
8 17095014 WASHER Ø10X18 MM
9 4847102 THREADED PLUG
10 17798374 SPRING WASHER Ø10,2X18,1 MM
11 2992692 ADHESIVE/STICKER LOCTITE
12 17037925 HEXAGON NUT M8X1,25
13 98424203 HEXAGON BOLT M10X1,25X42
14 1907811 KIT-OILSUMP GASKET
15 11903211 LOCK PLUG M12X1,25
