8061SRi26.06

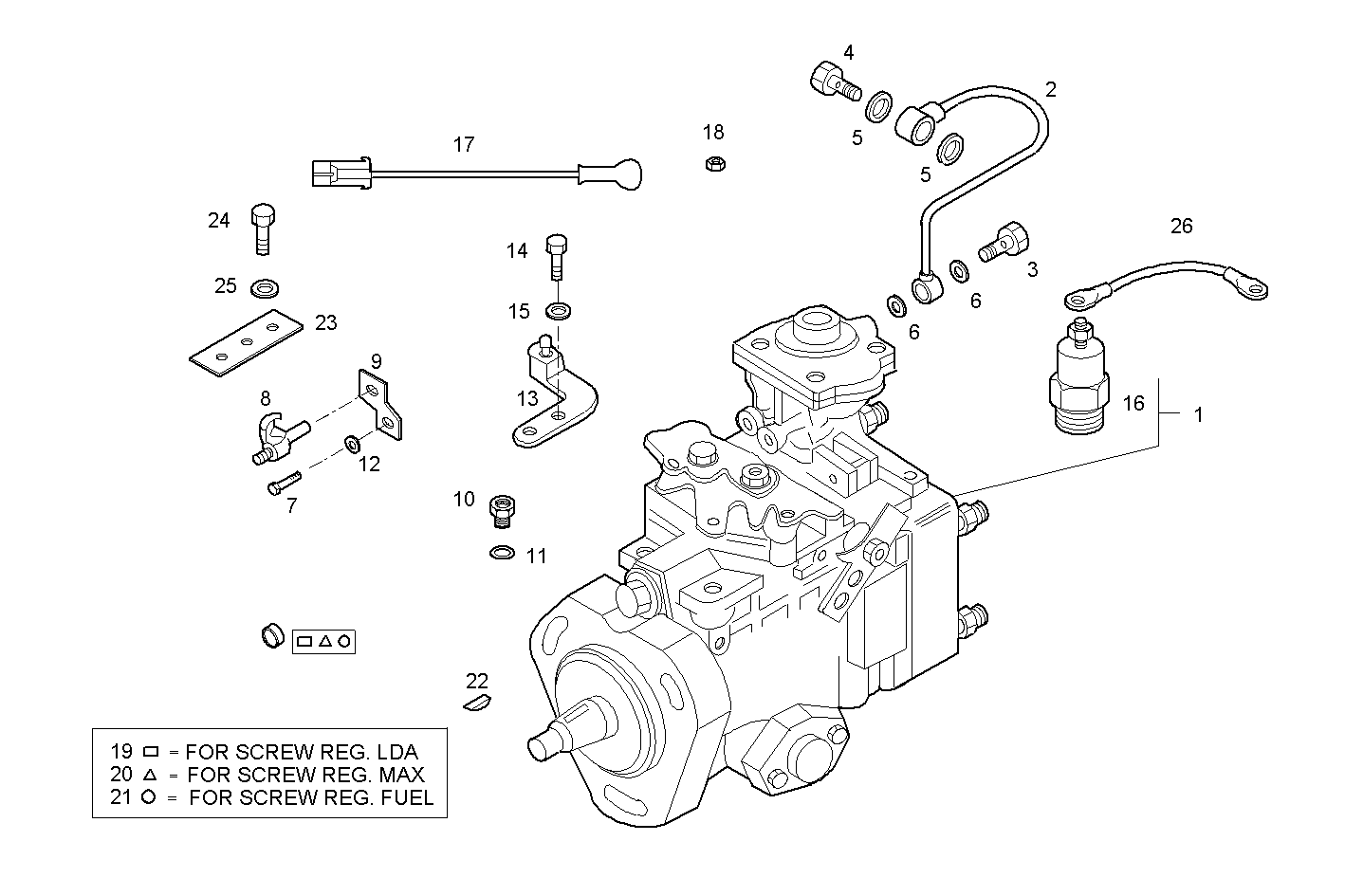

1400.386 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
0 98438959 WIRE/CABLE
1 500326169 DISTRIB.INJ.PUMP ASSY
2 4848475 FUEL LINE
3 4753761 SCREW CONNECTOR
4 4864081 SCREW CONNECTOR
5 10279460 SEAL GASKET Ø10X16 MM SP=0,5
6 10262760 SEAL GASKET Ø8,2 MM
7 15970524 HEXAGON BOLT M10X1,25X20
8 17868280 SPRING CLAMP L=30 MM
9 99481827 FASTENING BRACKET
10 4802434 THREADED UNION M12X1,5
11 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 98445678 LEVER
14 16603677 HEXAGON BOLT M6X16 MM
15 17798174 SPRING WASHER Ø6,1X11,8 MM
16 8100253 ELECTROVALVE 12V
18 16979231 HEXAGON NUT M5
19 98488857 CAP
20 98488858 CAP
21 98488859 CAP
22 10205820 KEY 4X6,5 MM
23 8024920 RETAINER
25 17088474 WASHER Ø6X12 MM
26 8023458 ENGINE HARNESS
27 8094611 SETTING DEVICE
28 93160151 TRANSMITTER KSB
