8061SRi27.05

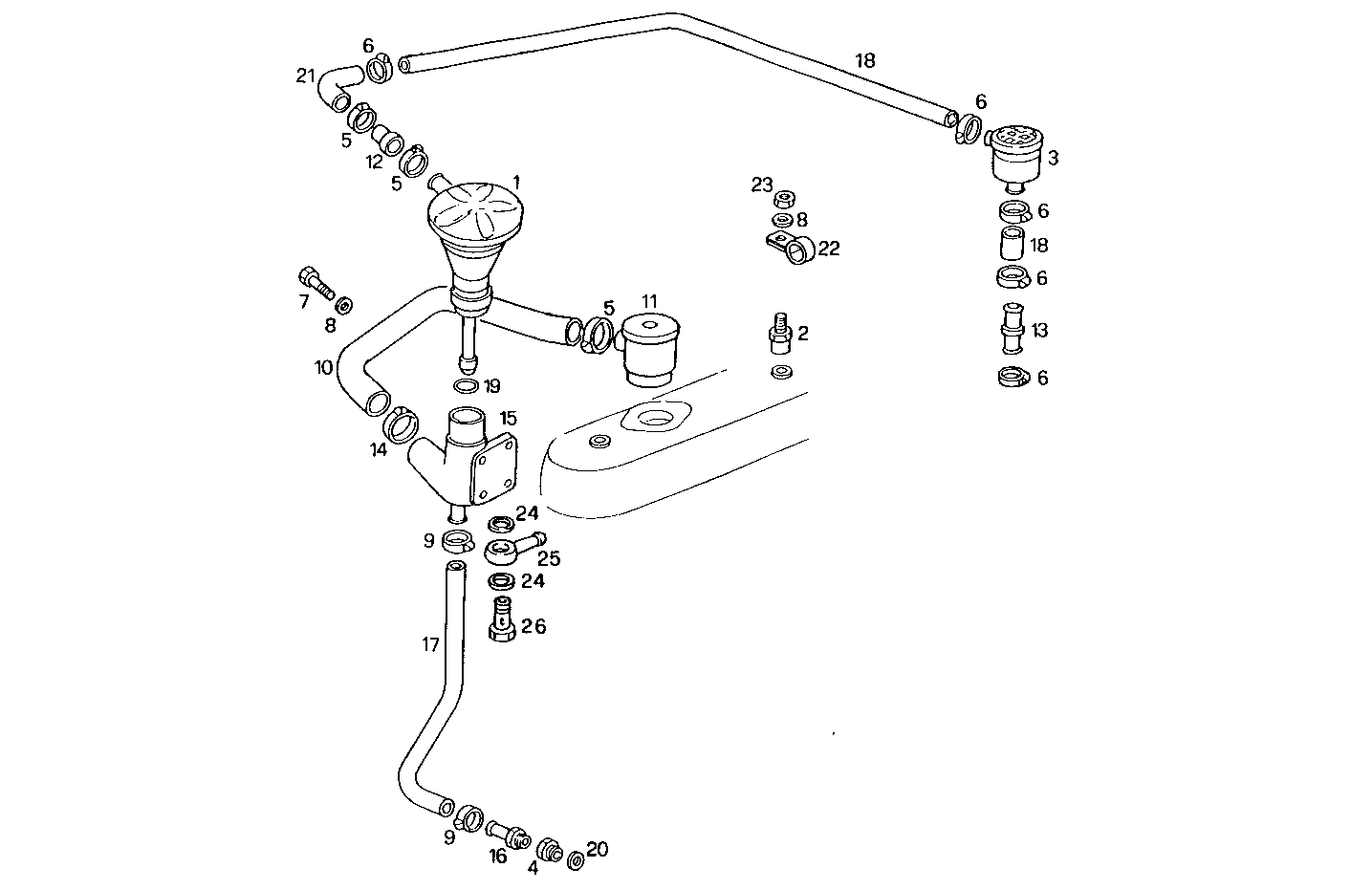

0450.119 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 61320629 BREATHER
2 8009967 NUT
3 4810557 BYPASS VALVE
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 17764691 CLIP Ø25/40 MM
6 17764592 CLIP Ø20/32 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 18088391 CLIP Ø16/25 MM
10 8026931 AIR HOSE
11 4812047 BREATHER
12 99452230 RUBBER SLEEVE Ø50 MM
13 8026919 PIPE SOCKET
14 17764791 CLIP Ø32/50 MM
15 61321370 SUPPORT
16 4616630 THREADED UNION
17 8024928 AIR HOSE
18 8016336 OIL HOSE
19 98438032 O-RING
20 8024963 THREADED UNION
21 8108085 RUBBER SLEEVE
22 4033229 CLIP
23 17037931 HEXAGON NUT M8X1,25
25 98417520 PIPE SOCKET
26 4864082 BANJO BOLT M12X1,5X25 MM
