8061SRi27.05

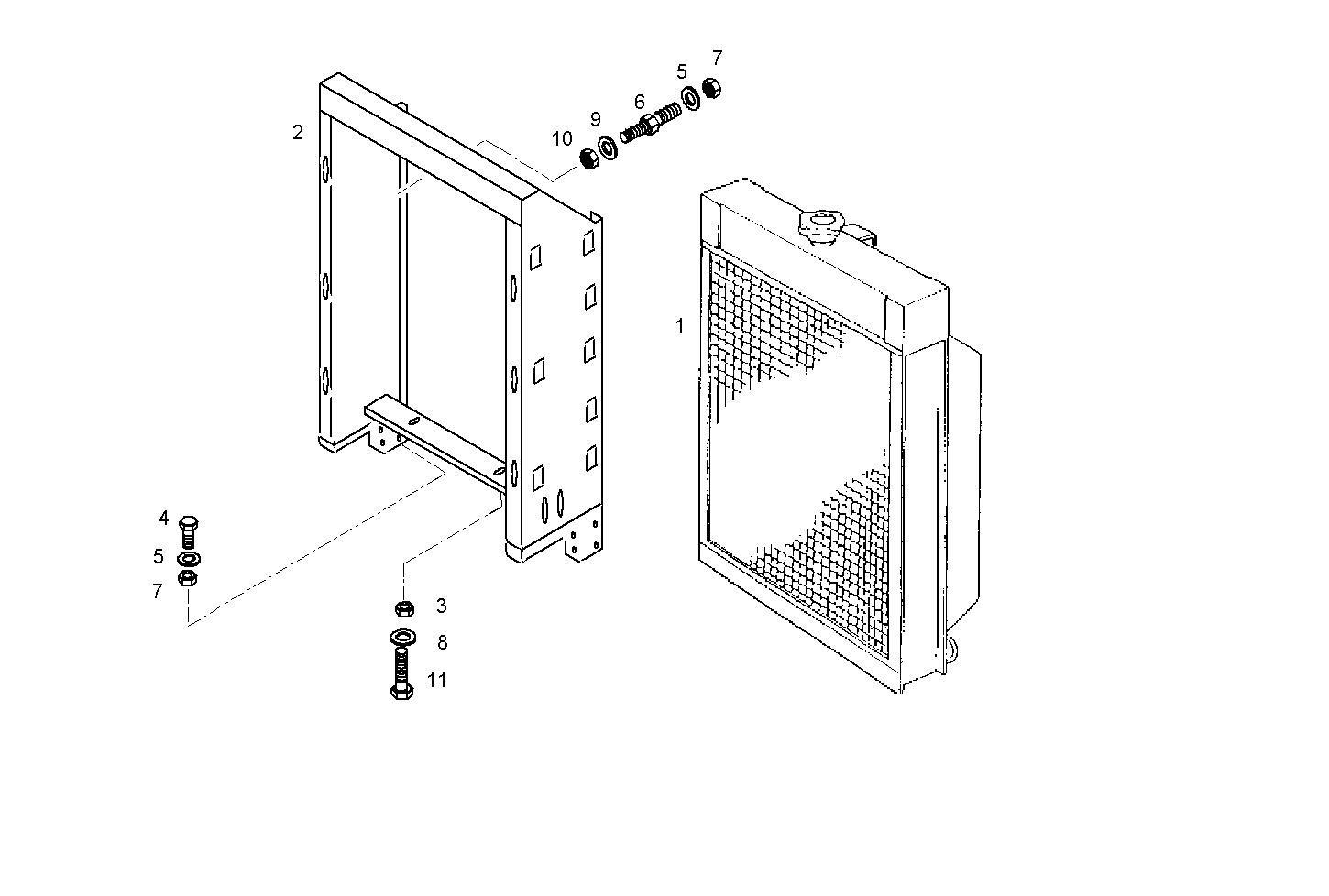

A22010077 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 8039520 | WATER RADIATOR |
1 | 8025287 | WATER RADIATOR ASSY |
2 | 8031733 | SUPPORT |
3 | 17038131 | HEXAGON NUT M10 |
4 | 16603677 | HEXAGON BOLT M6X16 MM |
5 | 17088474 | WASHER Ø6X12 MM |
6 | 8031777 | SPACING BAR M6-M8 |
7 | 17037821 | HEXAGON NUT M6X1 |
8 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
9 | 17089574 | WASHER Ø8X16 MM |
10 | 17037921 | HEXAGON NUT M8X1,25 |
11 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
