8061SRi27.05

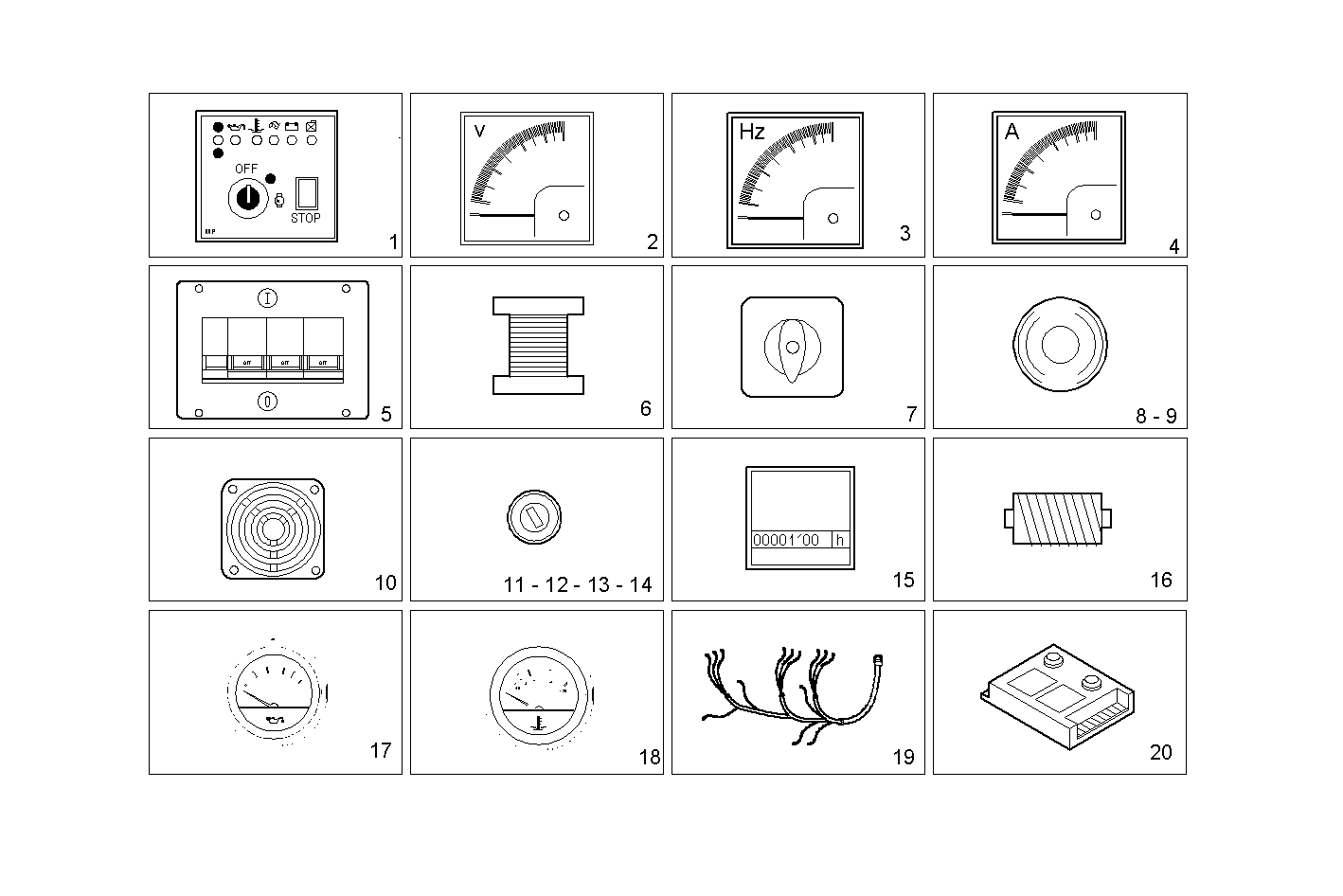

Q0000070 MANUAL CONTROL BOARD FOR ELECT. MACHINE - (components)
| Item |
Part number |
Description |
|
1 |
8094639 |
ELECTRONIC CARD |
|
2 |
8094641 |
VOLTMETER |
|
3 |
8094637 |
FREQUENCYMETER |
|
4 |
8094642 |
AMMETER |
|
5 |
8094607 |
THERMOSWITCH |
|
6 |
8094670 |
MINIMUN TENSION COIL |
|
7 |
8094635 |
SWITCH |
|
8 |
8094644 |
PUSH BUTTON |
|
9 |
8094660 |
SPRING CONTACT |
|
10 |
8094601 |
ACOUSTIC HORN |
|
11 |
8094598 |
FUSE BOX |
|
12 |
8094599 |
FUSE 2A |
|
13 |
8094636 |
FUSE 20A |
|
14 |
8094620 |
FUSE 10 A |
|
15 |
8094643 |
HOURMETER |
|
16 |
8094600 |
AMMETER TRANSFORMATOR |
|
17 |
8094622 |
PRESSURE GAUGE |
|
18 |
8094623 |
THERMOMETER |
|
19 |
8094690 |
ENGINE HARNESS |
|
20 |
8018675 |
SPEED CONTROL |
